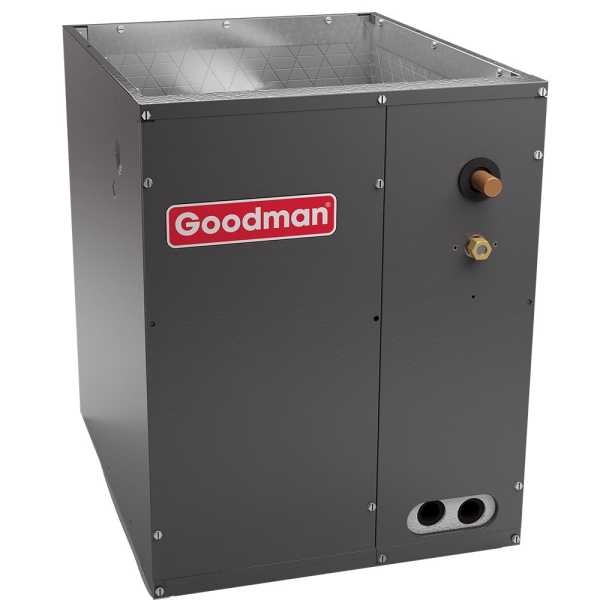

1.5 to 2 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet

Item: HA10459
Model: CAPF1824B6
Condition: New
The Goodman CAPF18 1.5-2.0 Ton Up/Down Cased Coil with 17.5 inch Cabinet is another solid Goodman product in a very crowded market. Built for both heat pumps and conventional air conditioners, this coil is grooved aluminum tubing and corrugated aluminum while the cabinet is painted an attractive Architectural Gray. It is AHRI certified, ETL listed, and features a rust resistant, thermoplastic drain pan.

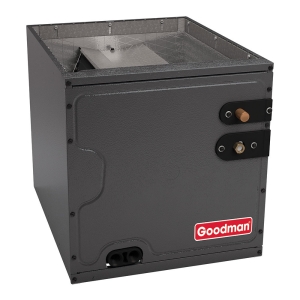

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman CAPF18 1.5-2.0 Ton Up/Down Cased Coil with 17.5 inch Cabinet is another solid Goodman product in a very crowded market. Built for both heat pumps and conventional air conditioners, this coil is grooved aluminum tubing and corrugated aluminum while the cabinet is painted an attractive Architectural Gray. It is AHRI certified, ETL listed, and features a rust resistant, thermoplastic drain pan.
Goodman HA10459

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CAPF1824B6
UPC 663051450097
Air Flow Direction Vertical
Cooling Capacity 1.5 Ton, 2 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 18
Product Length (in) 21
Product Width (in) 17.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 35.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)? how can i find it
Are the units 410 a ready for straight cool no heat pump coil do I need a state license to purchase
Does it double as a heat source as well?
Hi I am looking for a replacement unit evap coil for a CAPF030B2C 1.5 / 2 ton
Thanks
Will this fit on top of Item#HA10675 Model#GMSS960803BN 171/2" cabinet. will need to put on furnace as i place it.
On the Goodman CAPF1824B6 coil. Will the .059 piston work for 2 ton R-22 system?
1.5 to 2 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet. spec says 18 inch high, 21 inches length and 17.5 inches wide. my furnace is 21 inches wide across front and 18.25 inches deep where the current acoil mounts.

can the goodman be turned 90 degrees to allow the goodman 21 inch length to lign up with my 21 inch width.
what is my order status
how do i put a gcvc960403bn down force furnace on top of a capf1824b6 evaporator coil. it measures same width but furnace depth is about 7" bigger.
