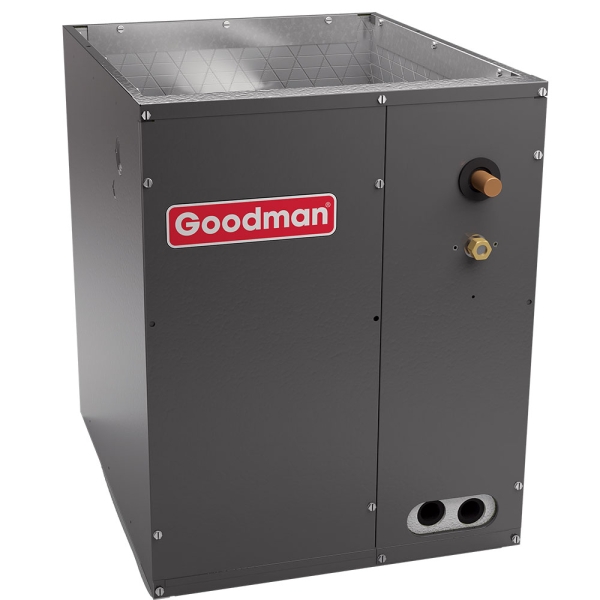

1.5 to 2 Ton Goodman Evaporator Coil - Vertical - 21" Cabinet

Item: HA10460
Model: CAPF1824C6
Condition: New
A good coil can do a lot for a heating and air system. The Goodman CAPF18 1.5-2.0 Ton is an up/down coil in a 21 inch cased cabinet. It uses grooved aluminum tubing and corrugated fins for use in conventional A/C units and air-source heat pumps. It is finished in Architectural Gray and features a rust resistant, thermoplastic drain pan.

Availability: On backorder

Was: $303.00 Add to Cart for Discount
Ingram Financing


Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman
Up to 15% Off - Members Only

What's Included

What customers are saying...



Overview

A good coil can do a lot for a heating and air system. The Goodman CAPF18 1.5-2.0 Ton is an up/down coil in a 21 inch cased cabinet. It uses grooved aluminum tubing and corrugated fins for use in conventional A/C units and air-source heat pumps. It is finished in Architectural Gray and features a rust resistant, thermoplastic drain pan.
Goodman HA10460

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CAPF1824C6
UPC 663051450103
Air Flow Direction Vertical
Cooling Capacity 1.5 Ton, 2 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 22
Product Length (in) 21
Product Width (in) 21
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 42.0000
