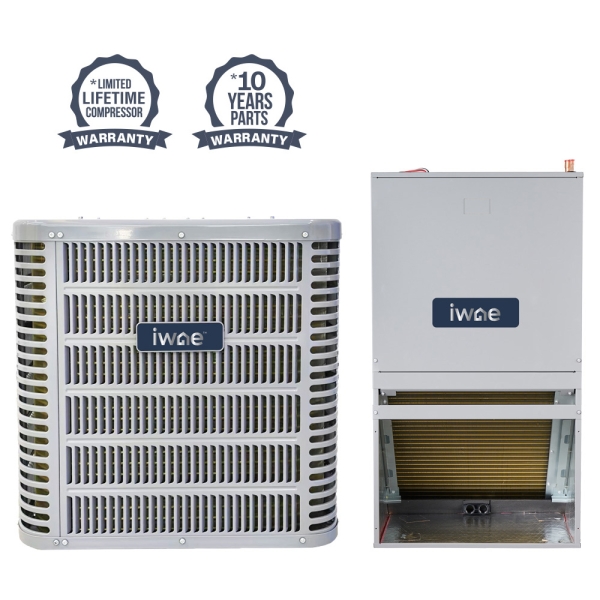

1.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B
IWAE

Accessories
Description / Documents
Keeping your home supplied with reliable temperature regulation throughout the year is the main responsibility of your HVAC system. If you’re tired of tolerating subpar results that leave you and your family sweating through summer or shivering all winter long, an upgrade to the 1.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B could be just what the doctor ordered. Earning the support of AHRI certification and ETL listing, the IWAE Central Heat Pump System has passed intensive independent testing to verify the legitimacy of every safety and operational claim. When you’re ready to enjoy every inch of your 750 to 900 square foot space, the 1.5 Ton IWAE Split System is the right tool for the job.

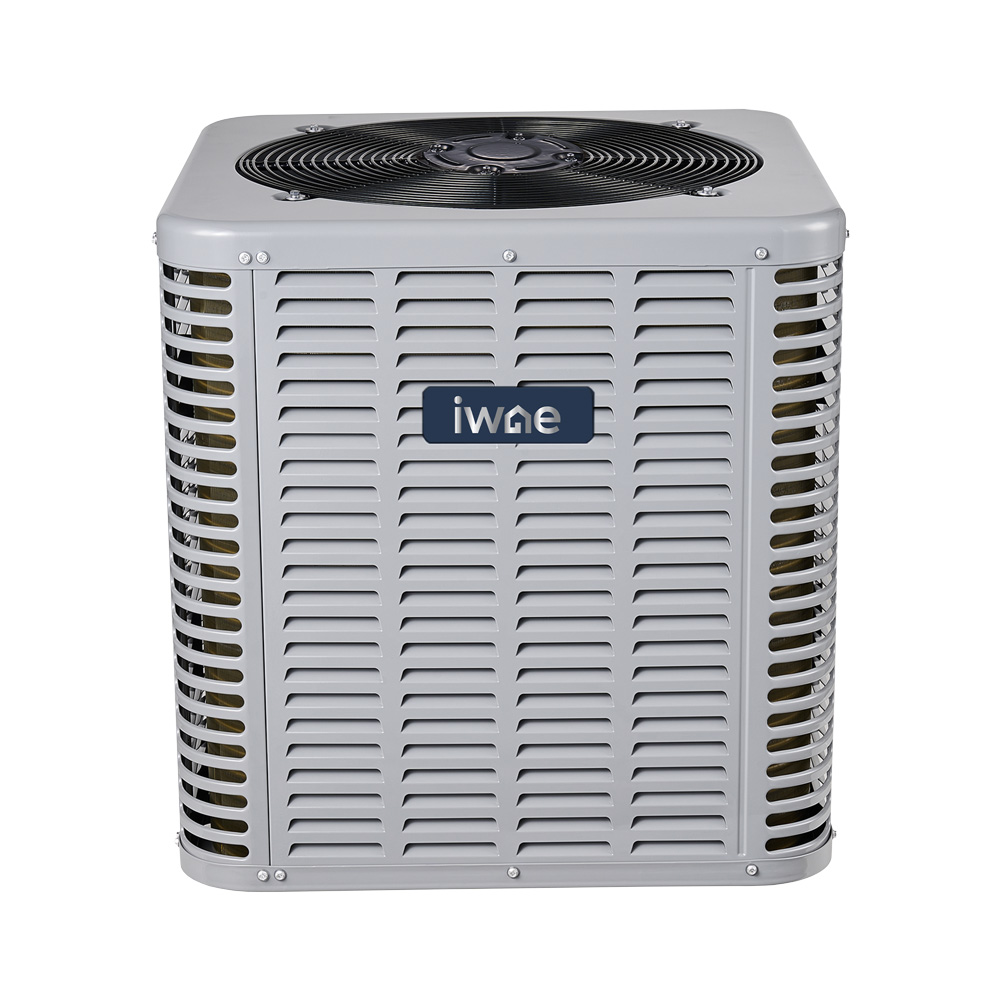

Designed to make a positive impact on your indoor ambiance, the condenser in the 1.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B is well-equipped to handle anything Mother Nature throws its way. The energy-efficiency compressor can effectively cool your space when outdoor conditions are between 54 and 126 degrees Fahrenheit or heat your home in temperatures between 14 and 90 degrees Fahrenheit. Making use of gold fin corrosion protection, a baked enamel finish on the cabinet, time-delay defrost technology, a filter drier, and a factory-installed A2L sensor, the IWAE Heat Pump is constructed to ensure long-term durability by shielding the inner workings from corrosive environments and other hazards. Operating quietly thanks to the sound control blanket, you can relax knowing the IWAE Split System won’t fall short of your wildest expectations.
Packed with helpful features, the air handler in the 1.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B offers the flexibility needed to guarantee a perfect fit with the unique demands of your space. The variable-speed ECM indoor blower motor provides tailored function, while the factory-installed A2L sensor monitors the flow of refrigerant to ensure safe operation. Designed to support different needs, the IWAE Stud Mounted Air Handler is built with a factory-standard front return that's convertible to a bottom return with the removal of the base pan panel on the front. Lining the interior of the casing with foil-faced insulation to mitigate condensation buildup and heat loss, the IWAE Split System has everything you need and more to stay comfortable.
When you can have the top-tier performance you want, plus the backing of a warranty that includes 10 years of parts coverage and a limited lifetime on the compressor, what more could you be holding out for? Bring home the 1.5 Ton IWAE Central Heat Pump Split System with Stud Mounted Air Handler running on R454B refrigerant today and guarantee your loved ones the exact indoor ambiance they crave in any season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | IWAESHS4T1821AA,IWAEAWPEF18D21AA |
|---|---|
| AHRI Number | 217513203 |
| Bundle Avg Coverage Area | 750 - 900 Sq Ft |
| Bundle Cooling Capacity | 1.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Region Compatibility | Nationwide |
IWAESHS4T1821AA Specifications:
| Model | IWAESHS4T1821AA |
|---|---|
| UPC | 840433703945 |
| AHRI Number | 217513202 |
| Product Height (in) | 25 |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Product Length (in) | 23.6 |
| Compressor | Single Stage |
| Product Width (in) | 23.6 |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 144.000000 |
| Primary Heating Capacity | 15,001 - 20,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
| Region Compatibility | Nationwide |
IWAEAWPEF18D21AA Specifications:
| Model | IWAEAWPEF18D21AA |
|---|---|
| UPC | 840433704089 |
| Product Height (in) | 36 |
| Configuration | Wall Mounted |
| Product Length (in) | 15 |
| Air Flow Direction | Downflow, Horizontal, Upflow, Vertical |
| Product Width (in) | 20.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 3 amps |
| Weight (lbs) | 88.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
