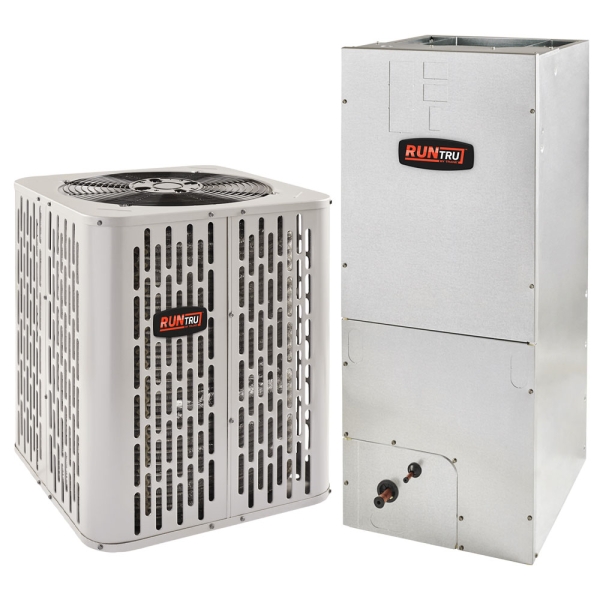

1.5 Ton 14.5 SEER Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition

An affordable and practical choice for heating and cooling your home year round is the 1.5 Ton 14.5 SEER Multi Speed Trane RunTru Central Heat Pump Split System, which includes a Trane RunTru Heat Pump and Air Handler.

This particular 1.5 Ton 14.5 SEER Multi Speed Trane RunTru Central Heat Pump Split System is efficient with a 14.5 SEER rating and 1.5 ton cooling capacity that will keep your home comfortable for everyone all year long. This heating and cooling appliance creates a low vibration when operating, reducing noise. This Trane RunTru Heat Pump will happily hum in the background so you can live comfortably and undisturbed.

This heat pump is factory charged with R410-A refrigerant, which is a more eco-friendly option than other refrigerants. The refrigerant is controlled with a thermal expansion valve (TXV) that maintains a constant heat for top performance along with a condenser fan, compressor contactor, and low and high pressure switches.

The scroll compressor in this Trane RunTru Heat Pump features internal overcurrent protection and over temperature protection to ensure your family's safety. This scroll compressor functions with a centrifugal oil pump and keeps the system running quietly with its low vibration. The outdoor propeller fan in the Trane RunTru Heat Pump is dynamically and statically balanced.

The condenser coil in this heat pump is all aluminum, provides low airflow resistance, and efficiently transfers heat to make sure the system operates safely. Louvered panels protect the outdoor condenser coil on all four sides. This particular model measures 28.6 high by 25.6 wide by 25.6 deep.

The Trane RunTru Heat Pump casing is made of heavy gauge, galvanized steel that is covered in a weather-resistant powder paint finish for additional strength and protection. The corner panels are also pre-painted. Each Trane RunTru cabinet panel is subject to a 1,000 hour salt spray test so it is proven to provide long term protection for your heating and cooling system.

With a Trane RunTru Air Handler, you can expect a quiet, efficient, and affordable solution to managing your home's comfort level. This multiposition, multi-speed Trane RunTru Air Handler has a 1.5 ton capacity and uses fused 24 volt power. Powering this appliance is a permanent split capacitor, or PSC motor, that has a multi-speed fan.

Trane RunTru Air Handlers use an all aluminum coil with an enhanced patented coil fin. This unit uses an orifice flow control with an R-410A/R22 orifice piston. This specific model of Trane RunTru Air Handler uses a ¾ suction line and ⅜ liquid line, and the entire appliance measures about 45 high, 18.5 wide, 21 deep.

Trane RunTru Air Handlers use a draw through design where the supply fan is installed after the coils and draws the air through the unit and into your space. The air handler is multi-position. Controls are factory installed and shipped straight to your home.

To ensure your air handler operates as efficiently as possible, it is housed in a fully insulated galvanized steel cabinet with captured foil face insulation that has an R-4.2 insulating value. With this high quality insulation to keep heat within the appliance, Trane RunTru Air Handlers have 2% or less air leak. The cabinet for this air handler also features a horizontal drain pain to capture escaped moisture from the air conditioning process.

This 1.5 Ton 14.5 SEER Multi Speed Trane RunTru Central Heat Pump Split System is a practical HVAC solution for homeowners and both appliances in this set are designed, assembled, and tested in the USA.
