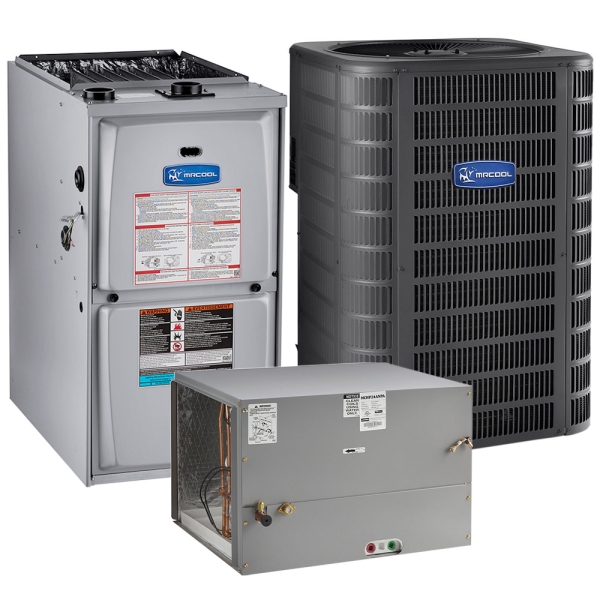

1.5 Ton 15 SEER 45k BTU 95% AFUE Variable Speed MrCool Signature Central Heat Pump & Gas Split System - Horizontal
Shop All MRCOOL
Item:
HA20207
Model:
MHP15018A,MGM95SE045B3XA,MCHP30BNPA,H4TXV01
Condition:
New
This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Accessories
Description / Documents
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MHP15018A,MGM95SE045B3XA,MCHP30BNPA,H4TXV01 |
|---|---|
| UPC | 810512039289 |
| AHRI Number | 204102256 |
| Gas Furnace Efficiency | 95% |
| Bundle Avg Coverage Area | 750 - 900 Sq Ft |
| Bundle Cooling Capacity | 1.5 Ton |
| Bundle Cooling Efficiency | 15 SEER |
| EER | 12.5 |
| Heat Pump Efficiency (HSPF) | 8.5 |
| Series | Signature |
| Region Compatibility | North |
MGM95SE045B3XA Specifications:
| Model | MGM95SE045B3XA |
|---|---|
| UPC | 810512031313 |
| AHRI Number | 204085887 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 123.000000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCHP30BNPA Specifications:
| Model | MCHP30BNPA |
|---|---|
| UPC | 810512033577 |
| Product Height (in) | 17.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21.5 |
| Cooling Capacity | 2.5 Ton |
| Product Width (in) | 26.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 53.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year Parts |
H4TXV01 Specifications:
| Model | H4TXV01 |
|---|---|
| UPC | 810512034680 |
| Product Height (in) | 3.7 |
| Product Length (in) | 9.7 |
| Product Width (in) | 5.8 |
| Weight (lbs) | 2.000000 |
