Overview

Manufacturer Highlights

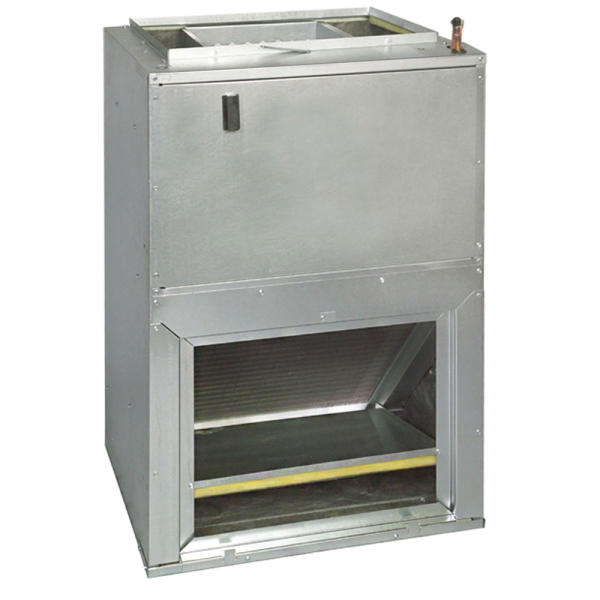

The Goodman AWUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Equipped with a Check Flowrater for cooling-only and heat pump operation
- Direct-drive, multi-speed motor allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Factory-installed pull-type disconnect
- Aluminum tubing coils on all models
- AHRI Certified
- ETL Listed
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2½- and 3-ton units) - front return only
- Small chassis (1½- and 2-ton units) - front or bottom return
- Wall-hanging bracket provided
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | AWUF180516 |
---|---|
UPC | 663051525290 |
Air Flow Direction | Upflow |
Configuration | Wall Mounted |
Blower Motor | Multi Speed |
Cooling Capacity | 1.5 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | Up to 5 kW |
Line Set Connection Type | Sweat |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 30 amps |
Primary Heating Capacity | 15,001 - 20,000 BTU |
Product Height (in) | 36 |
Product Length (in) | 20.25 |
Product Width (in) | 16.125 |
Suction Line Size | 5/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 10 Year Parts |
Weight (lbs) | 84.0000 |
California Residents | see Prop 65 WARNING |
