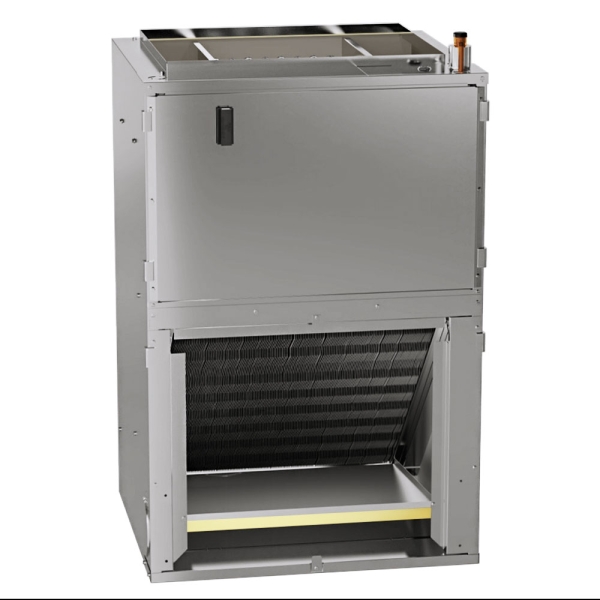

1.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit
Shop All GOODMAN

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Put to bed your loud and disruptive HVAC equipment. Stop tolerating subpar heating and cooling systems that loudly operate, muffling every other sound in your home. The time has come to make a change, and the 1.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit is here to usher in the silent serenity you've been dreaming of. These 1.5 Ton Goodman units showcase a sleek chassis style, offering both front and bottom return options to effortlessly regulate the climate in your 600 to 900 square foot space. Complete with a wall-hanging bracket and a built-in filter rack that even includes the filter, this Goodman Air Handler gives you every necessary tool to bring comfort and tranquility to your home.
The 1.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit is loaded with thoughtfully selected features designed to enhance your climate control experience. Coming equipped with a fully adjustable TXV, you can have complete control over the refrigerant flow, allowing you to adapt to your home's unique needs. Adding to this versatility is a thermoplastic drain pan with both a primary bottom and secondary drain connection, offering ever more adaptations to ensure compatibility with your home's layout. The direct-drive, multi-speed motors add precision and enable variable air volume for both heating and cooling. These motors work in tandem with the sequence-controlled, rust-resistant nickel-chromium heating elements and aluminum tubing coils, elongating the lifespan of this Goodman Air Handler. Coming with a factory-installed pull-type disconnect, you can let your hair down knowing that you can disconnect the power from the entire unit should any concerns arise.
This 1.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit goes the extra mile in meeting and upholding stringent standards. Achieving AHRI certification and ETL listing, you can trust in all functional claims, electrical or otherwise. Meeting the requirements as outlined in ASHRAE standard 193, this Goodman Air Handler minimizes cabinet air leak to less than 2% when tested at 1 inch of water. But the commitment to excellence doesn't stop there; surpassing the demanding cabinet air leak standard of losing less than 1.4% of air when tested at 0.5 inches of water, this 1.5 Ton Goodman really puts its money where its mouth is. With such an incredible piece of equipment within your reach, why tolerate mediocrity? Upgrade to this Goodman Wall Mounted Air Handler and enjoy your living space again.
Customer Reviews / Q&A
Specifications
System Overview
| Model | AWST18SU1405 |
|---|---|
| UPC | 663051644861 |
| Product Height (in) | 36 |
| Configuration | Wall Mounted |
| Product Length (in) | 16.125 |
| Air Flow Direction | Upflow |
| Product Width (in) | 20.187 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 5 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 84.000000 |
| Primary Heating Capacity | 15,001 - 20,000 BTU |
| Refrigerant | R-410a |
| Suction Line Size | 5/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
