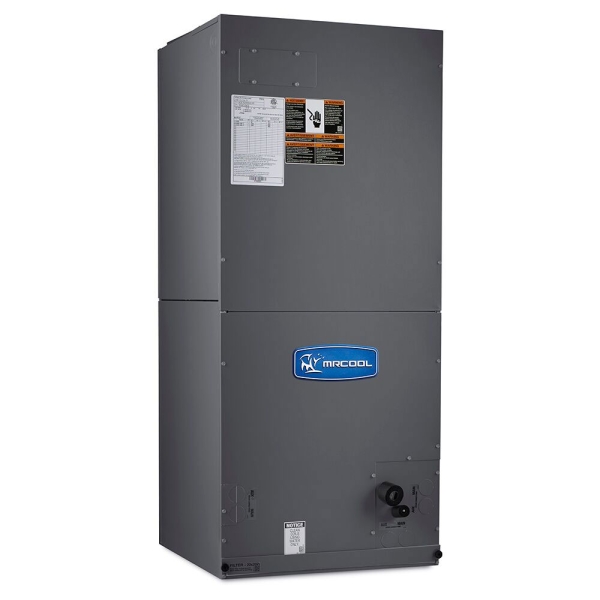

1.5 Ton Multi Speed MrCool Signature Central Air Handler - Multiposition
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Description / Documents
The 1.5 Ton Multi Speed MrCool Signature Central Air Handler - Multiposition is a compact air handler designed to maximize the efficiency and performance of MrCool Signature Heat Pump and Air Conditioner Split Systems. Buy yours today to ensure you get the very best of everything a MrCool central split system has to offer for your family's home air comfort.
The MAHM018CTA comes with lots of great features and benefits that make it truly a great Signature Series match. It features a baked polyester finish over double hemmed galvanized steel for maximum durability. The 1 piece design with smaller profile mean it is ideal for compact installation requirements. The all-aluminum coil provides long lasting performance and protection against corrosion. It is approved for installation in manufacturing housing and mobile homes. The enhanced tube-and-fin coil design even maximizes heat transfer potential.
Of course, those aren't the only reasons to invest in a 1.5 Ton Multi Speed MrCool Signature Air Handler - Multiposition like this one. It also improved gasketing on doors for an air leakage rate below 2%. It can accommodate upflow, horizontal left, or horizontal right installation. It comes with a high-strength heat, corrosion, and mold resistant antimicrobial treated SMC polymer drain pan. It can handle up to a 20kW electric heat kit, and has an efficient PSC blower motor, built-in indoor time delay, and sleeves on distributor tubing for added protection.
This is obviously a great air handler for a Signature series condenser. It's protected by a long term warranty that can be extended even further simply by registering online. Call us today to properly match this great unit with an equally great partner from MrCool!
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MAHM018CTA |
|---|---|
| UPC | 810512031078 |
| Product Height (in) | 43.5 |
| Configuration | Floor Mounted |
| Product Length (in) | 22 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 18.5 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 8 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 107.000000 |
| Series | Signature |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
