Overview
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications

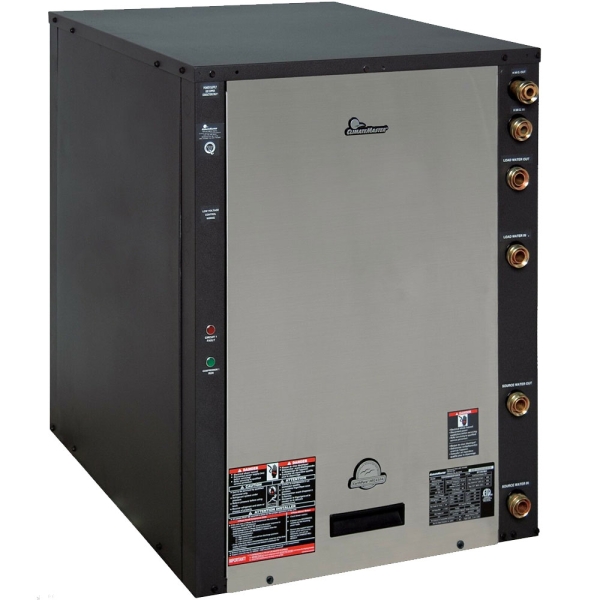

| Model | TCW120AGC0XN0XS |
|---|---|
| AHRI Number | 8703452 |
| Avg Coverage Area | 3,000+ Sq Ft |
| Compressor | Two Stage |
| Cooling Capacity | 6+ Ton |
| EER | 20.1 |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (COP) | 3.9 |
| HWG Connection | 1/2 inch |
| Load Connection | 1 1/2 inch |
| Loop Connection | 1 inch |
| Max Overcurrent Protection | 80 amps |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| Product Height (in) | 37 |
| Product Length (in) | 30.6 |
| Product Width (in) | 52.9 |
| Series | Tranquility |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 726.0000 |
| California Residents | see Prop 65 WARNING |
Accessories
Reviews
Q & A
Do you have questions about this product?
Sort by
What is the desuperheater option referring to? Can I buy this with a kit for all necessary parts to install it? Do you do the design for a kit system, including load calcs, installation guide, etc.?
I plan to build a 40' by 70' wide steel building with a vaulted ceiling at 20 feet to the roof with closed cell foam insulation sprayed on to a r value of 30 in the walls and 40 in the roof. 12 good windows 3'x4' and 3 doors. everything I am finding for load calcs is telling me that I need a 20 ton unit.
I plan to build a 40' by 70' wide steel building with a vaulted ceiling at 20 feet to the roof with closed cell foam insulation sprayed on to a r value of 30 in the walls and 40 in the roof. 12 good windows 3'x4' and 3 doors. everything I am finding for load calcs is telling me that I need a 20 ton unit.
according to one site i read field closed loop installation requires about 500 to 600 feet of pipe per ton of system, is this true with this unit? that would put this unit between 4500 and 5400 feet of field pipe
