This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

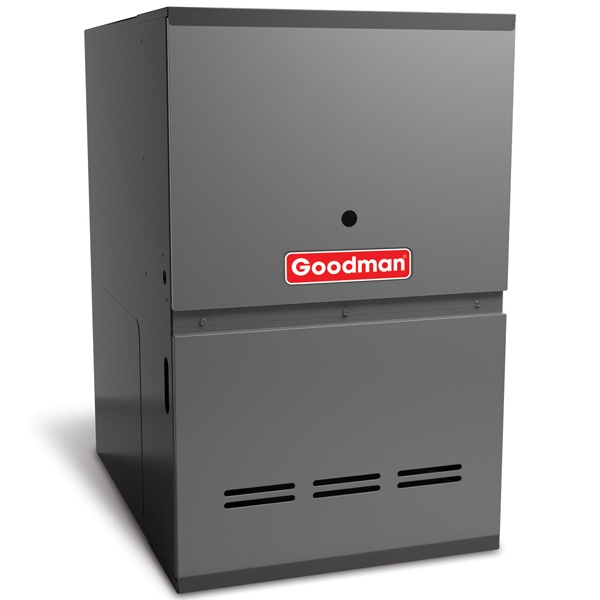

100k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 21" Cabinet

Item: HA10598
Model: GDH81005CN
Condition: New

100k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 21" Cabinet Zoom

Photo Gallery

Like anything else in life, a furnace is only as good as the components it's made of. The good news is that the Goodman GDH8 Series 80% AFUE Two-Stage Gas Furnace is built with reliable, energy efficient technology. It features an aluminized-steel heat exchanger, two-stage convertible gas valve, durable igniter, single speed draft inducer, self-diagnostic control board, color-coded low-voltage terminals, multi-speed blower motor, and a heavy-gauge steel cabinet designed for multi-position installation.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Like anything else in life, a furnace is only as good as the components it's made of. The good news is that the Goodman GDH8 Series 80% AFUE Two-Stage Gas Furnace is built with reliable, energy efficient technology. It features an aluminized-steel heat exchanger, two-stage convertible gas valve, durable igniter, single speed draft inducer, self-diagnostic control board, color-coded low-voltage terminals, multi-speed blower motor, and a heavy-gauge steel cabinet designed for multi-position installation.

Replace your outdated heater with a new Goodman gas furnace! This GDH81 furnace comes with benefits of easy modern installation. Goodman placed all of the necessary components for this unit in convenient spots. Such as the system control board that is easy to access during routine maintenance. Basically, your installer will love you.

Though this furnace is stacked with features to warm your home, you may want to add a humidifier element. In that case, simple attach the add-on feature to the low-voltage hookup and control the moisture in your home quickly and easily! This system is wired to be simple and has highly active system diagnostics thanks to the ComfortNet control. Powered by natural gas, this furnace comes with a 2-stage heating and variable speed circulating blower for utmost performance. And not to worry! All of the parts run strong while maintaining a low noise level.

Prepare for winter with the 100k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 21" Cabinet. At 80% efficiency, this furnace is affordable on the frontend while keeping your monthly gas bill at a reasonable price monthly. As a result, your home stays warm all winter with less energy! It has an 80% AFUE meaning that you are paying 8- cents for the heat that goes directly into your home with every $1 you pay on your gas bill.

Goodman HA10598

Manufacturer Highlights

The Goodman® brand GDH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve Dual$aver™ technology that allows the installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter
  • Quiet four-speed direct-drive circulating blower motor
  • Furnace control board with self-diagnostics, color-coded low-voltage terminals and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts furnace to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Certain models available with low NOx emissions

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger compartment
  • Factory-sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: Dedicated Downflow
  • Removable bottom for side or bottom return applications
  • Convenient left or right connection for gas/electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GDH81005CN
UPC 663051491991
AHRI Number 5012574
Gas Furnace Efficiency 80%
Air Flow Direction Downflow
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 19.5
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 114.0000
