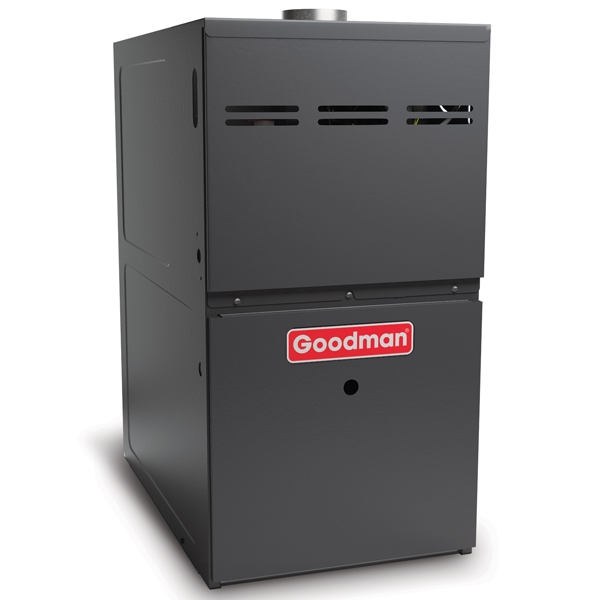

100k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10644
Model: GMH81005CN
Condition: New

100k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

Related Videos

The Goodman GMH8 80% AFUE 100k BTU 2 Stage Multi-Speed Gas Furnace is an excellent unit. It is 80% efficient, so you turn 80 cents of every dollar you spend on energy into luxuriant heat. It also comes with a dual-diameter tubular heat exchanger, four-speed circulator motor, electronic control board, self-diagnostics, and auto-comfort mode for enhanced dehumidification. It has great warranty support and an economic price.

Availability: In stock

$765.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

The Goodman GMH8 80% AFUE 100k BTU 2 Stage Multi-Speed Gas Furnace is an excellent unit. It is 80% efficient, so you turn 80 cents of every dollar you spend on energy into luxuriant heat. It also comes with a dual-diameter tubular heat exchanger, four-speed circulator motor, electronic control board, self-diagnostics, and auto-comfort mode for enhanced dehumidification. It has great warranty support and an economic price.

Replacing your furnace? A GMH81 Goodman gas furnace is simple to use and fits a variety of spaces to match your HVAC needs. This furnace can move air up, down or sideways making this furnace flexible to fit in the space needed to heat and cool your home properly. Hook up this furnace to your gas line or run with propane. To run this unit on propane, add a conversion kit to your order and you’re ready to go!

Goodman is known for its reliable and long-lasting products and this one is no exception! Its low price makes it a great option for nearly any budget. For an added feature, Goodman designed this furnace to be ComfortNet Communications System compatible. This innovative thermostat has smart features that take your temperature control abilities to the next level.

Complete with many great features, this furnace is easy to operate and a breeze to install. This furnace connects to your HVAC units and thermostat so you can keep your temperate at your level of comfort with the touch of a button. If maintenance is needed, it comes with a control board that will address the issue which can be fixed by a licensed technician. And did we mention it operates peacefully and quietly? Goodman understands that you want HVAC products that don’t disturb your household and it delivers with this product. With an input BTU rating of 100,000 and an efficiency rating of 80%, the furnace heating output is 80,000 BTU.

Goodman HA10644

Manufacturer Highlights

The Goodman® brand GMH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve convertible technology allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostics, colorcoded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger
  • Designed for multi-position installation
  • Easy-to-install top venting is standard; alternate flue/vent located on the right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air inlet applications
  • Convenient left or right connection for gas and electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GMH81005CN
UPC 663051487789
AHRI Number 201702291
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height 33.375
Product Length 28
Product Width 21
System Application Type Central Split Systems
Vent Connection 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 118.0000
