This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

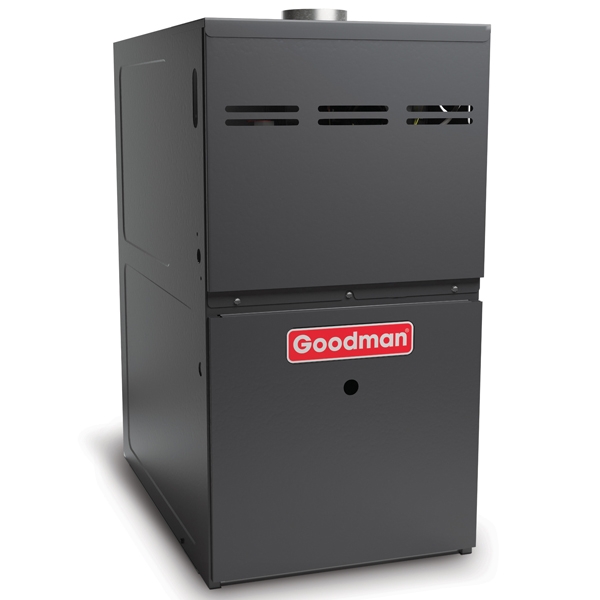

100k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10660
Model: GMS81005CN
Condition: New

100k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

It is worth your time and money to invest in a good, durable gas furnace. We would like to recommend the Goodman GMS8 Multi-Speed 100k BTU 80% AFUE Gas Furnace built for upflow/horizontal applications. This Goodman unit comes complete with a four-speed circulator blower motor, dual-diameter tubular heat exchanger, self-diagnostic capability, hot surface mini-igniter, and enviable post-purchase warranty protection.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

It is worth your time and money to invest in a good, durable gas furnace. We would like to recommend the Goodman GMS8 Multi-Speed 100k BTU 80% AFUE Gas Furnace built for upflow/horizontal applications. This Goodman unit comes complete with a four-speed circulator blower motor, dual-diameter tubular heat exchanger, self-diagnostic capability, hot surface mini-igniter, and enviable post-purchase warranty protection.

Keep your furnace replacement simple with a GMS80 furnace from Goodman. Being an effective retrofit solution, you can lower your installation costs by replacing your existing previous generation furnace with this one. If your existing venting is still in good working order and safe to use, you will save a lot on upgrade and installation costs. You can also take advantage of the economic purchase price compared to similarly sized competitor units.

This furnace comes loaded with features that will make your installation even easier. With its multi position design, you can install this furnace in the upflow position or horizontal right/left. The low voltage terminal block also allows for easy thermostat installation. If you are looking to take advantage of air conditioning, you can pair this system with an air conditioning coil easily as the cabinet will fit flush.

The 100k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet is equipped with a burner that was made for quiet operation. It also has a self diagnostic board that is easy to troubleshoot should you ever experience a problem. With an efficiency rating of 80%, you can expect substantial heating output compared to your utility budget.

This furnace is suitable for a variety of installations located in either southern climates or northern climates of varying size. If you are replacing your existing furnace, just check the rating plate! If your current unit matches the GMS81 operating capacity, your upgrade is probably going to be accomplished quickly and easily!

Goodman HA10660

Manufacturer Highlights

The Goodman® brand GMS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Norton hot surface mini-igniter
  • Quiet multi-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and lowvoltage terminal block
  • Quiet single-speed, induced-draft blower

Cabinet Features

  • Foil-faced insulation lines the heat exchanger compartment
  • Factory sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: upflow, horizontal left or right
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMS81005CN
UPC 663051517868
AHRI Number 201702275
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 163.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Is there a propane conversion kit available?
Does shipping include lift gate ?
What would be an upgrade from this particular model and what would be the model of a/c unit that would go with this and the upgrade model?
How much would it cost to add A/C
