This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

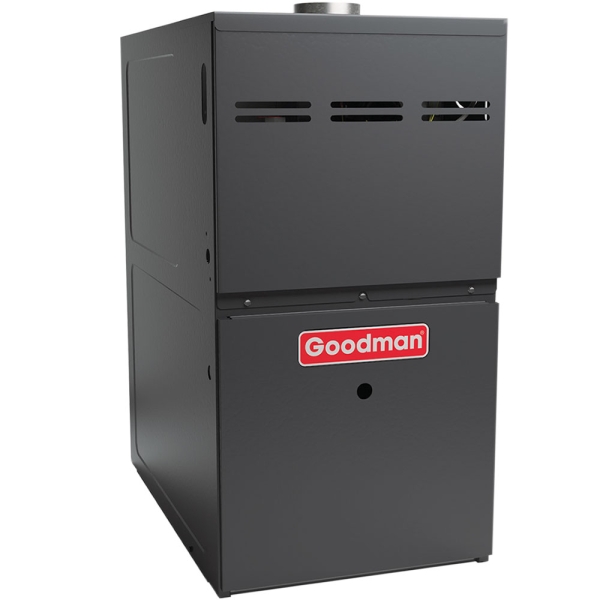

100k BTU 80% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10684
Model: GMVC81005CN
Condition: New

100k BTU 80% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

Winter is cold! Heat up your home with the Goodman GMVC8 Two-Stage Variable Speed 100k BTU 80% AFUE Gas Furnace in a 21 inch cabinet for upflow/horizontal applications. It uses a dual-diameter tubular heat exchanger made of aluminized-steel, an efficient and quiet variable-speed circulator motor, electronic control board with self-diagnostics, durable 110-volt silicon nitride igniter, two-speed induced draft blower, and can work with the ComfortNet Communications System.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Winter is cold! Heat up your home with the Goodman GMVC8 Two-Stage Variable Speed 100k BTU 80% AFUE Gas Furnace in a 21 inch cabinet for upflow/horizontal applications. It uses a dual-diameter tubular heat exchanger made of aluminized-steel, an efficient and quiet variable-speed circulator motor, electronic control board with self-diagnostics, durable 110-volt silicon nitride igniter, two-speed induced draft blower, and can work with the ComfortNet Communications System.

Need a quiet heating unit that comes with an affordable price point? Look no further! The GMVC81 Goodman furnace has it all. With a 2 stage gas burner, you will get a more consistent temperature throughout your space and on low fire. Plus, it's so quiet that you may not even notice it is running. The variable speed blower motor will provide you with a steady amount of air flow no matter what control mode the furnace is in.

This furnace can retrofit easily when replacing a similar mid efficiency furnace. If your existing venting is of the same size and type and in good condition, you will be able to reuse the venting and keep your installation costs to a minimum. This unit also takes up very little space. At only 21 “ wide by a depth of 28”, this furnace can be installed almost anywhere.

The 100k BTU 80% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet is a mid efficiency type furnace. With its multi position flexibility, this furnace can be installed in up flow, horizontal left or horizontal right positions. This unit also gives you an efficiency rating of 80%, meaning that every dollar you spend on burning gas, 80 cents will go into heating your home. The rest will be vented outdoors.

Goodman HA10684

Manufacturer Highlights

The Goodman® brand GMVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Aluminized-steel dual-diameter tubular heat exchanger
  • Two-stage gas valve operates with two-stage or single stage thermostats
  • ComfortNet™ Communications System compatible
  • Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
  • 120V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostic and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • Multiple continuous fan speed options for quiet air circulation
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Quiet two-speed induced draft blower
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Designed for multi-position installation: Upflow, Horizontal left or right
  • Removable bottom for side- or bottom-return applications
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMVC81005CN
UPC 663051491854
AHRI Number 5012590
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 124.0000
