This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

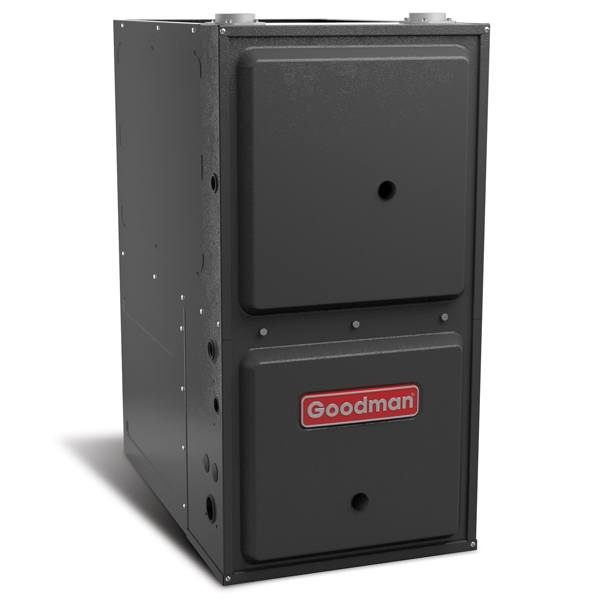

100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

Item: HA10578
Model: GCSS961005CN
Condition: New

100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

When it comes to your home heating and air system, there is no such thing as 'too good'. Which is why you should choose the Goodman GCSS96 Single Stage 2000CFM 100k BTU 96% AFUE Gas Furnace as your next home heating unit. This product delivers high energy efficiency, superior air comfort, long term performance, and is backed by some of the strongest warranty support in the entire HVAC industry.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

When it comes to your home heating and air system, there is no such thing as 'too good'. Which is why you should choose the Goodman GCSS96 Single Stage 2000CFM 100k BTU 96% AFUE Gas Furnace as your next home heating unit. This product delivers high energy efficiency, superior air comfort, long term performance, and is backed by some of the strongest warranty support in the entire HVAC industry.

Are you looking for an efficient, reliable, and cost-effective method to heat your home? If so, then the Goodman GCSS96 100k BTU gas furnace is what you’re looking for! Engineered for durability and quiet functionality, you’ll rest easy knowing that your furnace is working hard to create a comfortable environment inside your home. With an AFUE rating of up to 96%, every single one of your valuable dollars spent on heating goes directly towards heating your home!

This 100,000 BTU, single-stage gas furnace works at maximum capacity. Its high durability and efficiency allow the unit to run at full strength no matter the outside temperature, which translates to maximum heat output for you! The downflow/horizontal functionality makes this unit ideal for closet, attic, or crawl space installation. This unit is not only functional but designed to fit aesthetically into your home, too!

With the art of precision in mind, the GCSS96 features a strong aluminized-steel heat exchanger paired with a secondary exchanger made of stainless-steel which results in a powerful and efficient furnace system. Other features include a silicon nitride igniter that eliminates the need for an uneconomical pilot light, a single-speed, induced-draft blower, and a self-diagnostic control board that monitors the system for problems. Diagnostic codes stored in the system make troubleshooting simple and straightforward!

This unit from Goodman features a corrosion-resistant, thermally insulated cabinet, minimizing operational sounds and air leakage to less than 2%. It is easy to maintain and designed to minimize your monthly HVAC bills so you gain maximum comfort without maxing out your bank account.

Goodman HA10578

Manufacturer Highlights

The Goodman® brand GCSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board with constant memory fault code history output to a LED
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GCSS961005CN
UPC 663051469372
AHRI Number 7365105
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 142.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Can this run on propane?
Is the Goodman GCSS961005CN Mobile home approved?
