This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

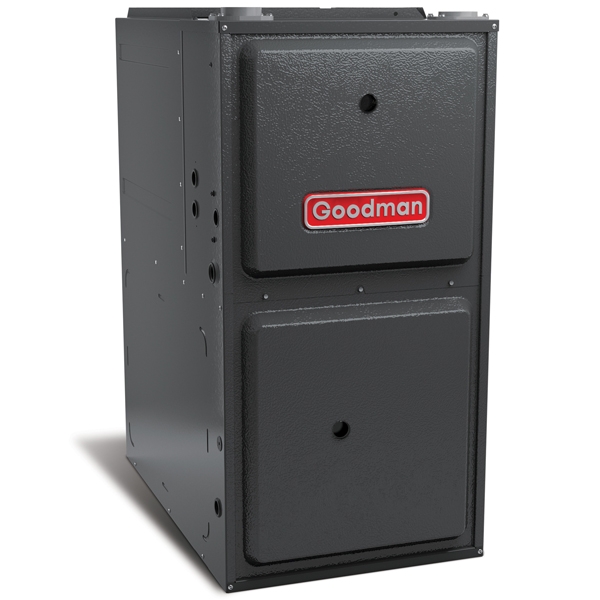

100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10678
Model: GMSS961005CN
Condition: New

100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

Winter heating can be expensive, but it doesn't have to be. The Goodman GMSS96 Single Stage 2000CFM 100k BTU 96% AFUE Gas Furnace is reasonably priced, backed by powerful warranty support, and heats far more efficiently than previous generation furnace technology. This system is rated for a cabinet air leakage rate less than 2%. It comes with dual heat exchangers, color-coded low voltage terminals, single stage gas valve, igniter, and more.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Winter heating can be expensive, but it doesn't have to be. The Goodman GMSS96 Single Stage 2000CFM 100k BTU 96% AFUE Gas Furnace is reasonably priced, backed by powerful warranty support, and heats far more efficiently than previous generation furnace technology. This system is rated for a cabinet air leakage rate less than 2%. It comes with dual heat exchangers, color-coded low voltage terminals, single stage gas valve, igniter, and more.

Tired of spending a fortune on your monthly utility bills all winter long? Did you know that your home comfort system is typically the largest influence on your utility bills? Upgrade your furnace to a high efficiency model from Goodman and save instantly with dual heat exchanger technology!

Mid efficiency furnaces are typically in the 80% range which means, that 20% of the heat it produces is being vented outdoors and not used. With a high efficiency dual heat exchanger, you get more heat out of your furnace by running the heat through the second heat exchanger instead of venting it outdoors. That alone will increase your savings by 16% each month on your utility bills when replacing your existing mid efficiency furnace with this one.

The GMSS96 100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet is very flexible and easy to install. With a multi position design, you can use this furnace for almost any application. With 2000 CFM of air volume and 100,000 BTU heating input this furnace is sized to accommodate homes that are up to 3400 square feet in southern climates zones.

Providing you with reliable comfort solutions at a competitive price, Goodman has been supplying the HVAC industry for over 35 years. If you’re upgrading from an older, lower efficiency model, you may be eligible for an energy rebate, so check your local utility and municipal incentives.

Goodman HA10678

Manufacturer Highlights

The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Multi-speed blower motor
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Foil-faced insulated heat exchanger cabinet
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMSS961005CN
UPC 663051469211
AHRI Number 7365100
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 34.5
Product Length (in) 28.875
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 142.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Do you have this item in down flow
Is it as good as 2 stage?
Are the furnaces propane and are the furnace/ac combo?
I am taking out an old wood burning furnace and removed the ductwork. I do have Mitubishi Split System in the house (1,500sqft - 2 stories) but wanted a furnace to help with the heat in the cold Upstate NY Winter Months. They can keep up in the sub-zero but electric bills for Jan/Feb are expensive. Maybe just add a couple floor ducted supply vents with one central return duct. No Gas out in the country - only propane.

What do you suggest for model for the above?
