This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

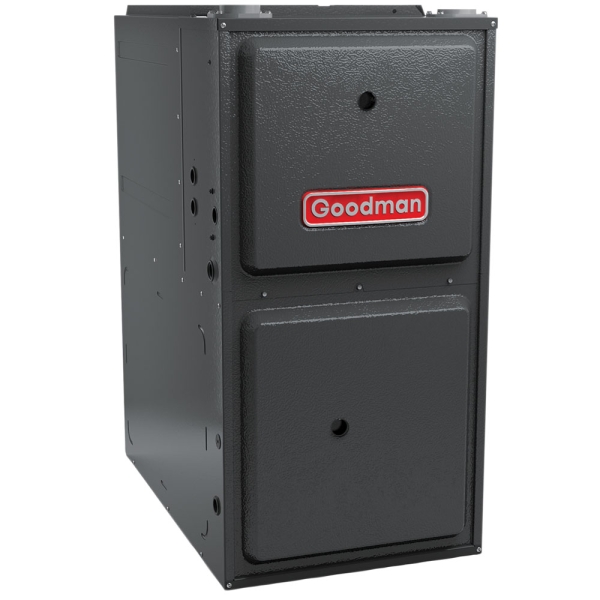

100k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

Item: HA10583
Model: GCVC961005CN
Condition: New

100k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

The Goodman GCVC96 Two-Stage Variable Speed 100k BTU 96% AFUE Low NOx Gas Furnace in a 21 inch cabinet could be the best residential furnace you ever bought. Not only is this Goodman unit equipped with dual heat exchangers, but it also includes multiple continuous fan speed options for quieter air circulation and a variable-speed airflow system that can gently ramp up or down according to comfort demand.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman GCVC96 Two-Stage Variable Speed 100k BTU 96% AFUE Low NOx Gas Furnace in a 21 inch cabinet could be the best residential furnace you ever bought. Not only is this Goodman unit equipped with dual heat exchangers, but it also includes multiple continuous fan speed options for quieter air circulation and a variable-speed airflow system that can gently ramp up or down according to comfort demand.

This system by Goodman offers quiet air circulation which is both impressive and efficient. There will be no sudden jumps or jolts with this variable-speed system. Room temperature is balanced, environmental impact is minimized, and your comfort is maximized.

The cabinet has a durable finish and is made of heavy-gauge steel. You have no worry about losing precious heating dollars to leakage with this airtight construction – the rating for loss is 2%. When you also consider the insulation in this unit you can be assured of energy efficiency. Installation is made easy for connecting gas and electric components on either side. There is a choice of installation orientation – downflow or horizontal left or horizontal right. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.

This unit will conveniently fit into your desired location: the dimensions are 21 inches wide, 28.75 inches deep, 34.5 inches high. The Goodman 100k BTU Gas Furnace is an easy to install, high quality manufactured unit that will be more than adequate for your home heating and cooling needs. Your heating budget is an amazing 96% optimal as heat loss is minimized due to a secondary stainless-steel heat exchanger which offers additional heat as the exhaust passes through – heat is retained not wasted. The secondary heat exchanger is corrosion-resistant and it is sloped to prevent condensate build-up.

The HA10583 by Goodman features automatic maintenance warnings due to the advanced self-diagnostics that result from the continuous monitoring of the system performance. This is definitely a reliable unit, but when you add the industry leading warranty, your peace of mind is raised to a new level.

Goodman HA10583

Manufacturer Highlights

The Goodman® brand GCVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • ComfortNet™ Communicating System compatible
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Two-stage gas valve provides quiet, economical heating
  • Durable Silicon Nitride igniter
  • Quiet two-speed induced draft blower
  • Utilizes ComfortNet™ communicating, two-stage or single-stage thermostats
  • Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
  • Multiple continuous fan speed options offer quiet air circulation
  • Auto-Comfort and enhanced dehumidification modes available
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation - downflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GCVC961005CN
UPC 663051469327
AHRI Number 7368844
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 20 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 145.0000
