This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

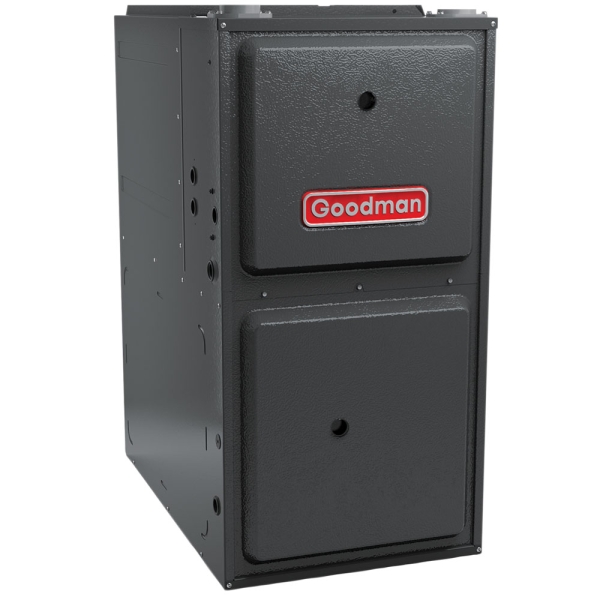

100k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

Item: HA10591
Model: GCVM971005CN
Condition: New

100k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

Very few competitors can match the quality and the value of a Goodman GCVM97 Series Modulating Gas Furnace. Not only is this unit built to exacting specifications, but it is backed by some of the best warranties in the business. That includes both a 10-year replacement guarantee and lifetime protection for the heat exchanger. Plus, this series complies with California's tough 40 ng/J Low NOx emissions standard.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Very few competitors can match the quality and the value of a Goodman GCVM97 Series Modulating Gas Furnace. Not only is this unit built to exacting specifications, but it is backed by some of the best warranties in the business. That includes both a 10-year replacement guarantee and lifetime protection for the heat exchanger. Plus, this series complies with California's tough 40 ng/J Low NOx emissions standard.

Keep your home at the ideal consistent temperature with this gas furnace from Goodman. At 97% AFUE, this furnace is the highest efficiency unit from Goodman’s broad inventory. This performance percentage means that every time you spend $1 on your monthly heating and cooling bill, 97 cents goes to directly to keeping your home the temperature you choose. Therefore, you have little waste from a performer like the GCVM97.

This 100k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet is made with modern standards in mind. It is simple to install and comes with your choice in how it stands—horizontally or vertically— depending on where it needs to be placed within your home and how it needs to attached to your central air system.

Another benefit of this unit is the accessibility to all of the necessary parts, including the control board. No longer do you have to wander around your unit wasting precious time to fix a problem. The control board is centrally located and simple to access so you and your technician will be satisfied with your purchase in this heating and cooling unit.

Consumers rave about the easy ability to add additional elements to this furnace, such as the humidifier and the ComfortNet Communicating System. If you choose to control the temperature of this furnace with the ComfortNet Communication System, you have the choice of using a two-stage or single-stage thermostat. The innovative temperature control system is easy to read and use with its digital monitor that displays your choice of information selecting from the settings.

Goodman HA10591

Manufacturer Highlights

The Goodman® brand GCVM Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • ComfortNet™ Communicating System compatible
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Self-calibrating modulating gas valve auto-configure for each installation
  • Durable Silicon Nitride igniter
  • Quiet variable-speed induced draft blower
  • Utilizes ComfortNet™ communicating, two-stage or single-stage thermostats
  • Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
  • Multiple continuous fan speed options offer quiet air circulation
  • Auto-Comfort and enhanced dehumidification modes available
  • All models comply with California 40 ng/J Low NOx emissions standard
  • AHRI Certified; ETL Listed

Cabinet Features

  • Designed for multi-position installation — GCVM97: downflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) ? 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GCVM971005CN
UPC 663051469921
AHRI Number 7424272
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Modulating
Max Overcurrent Protection 20 amps
Primary Heating Capacity 95,001 - 100,000 BTU
Product Height (in) 34.5
Product Length (in) 28.875
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 146.0000
California Residents see Prop 65 WARNING
