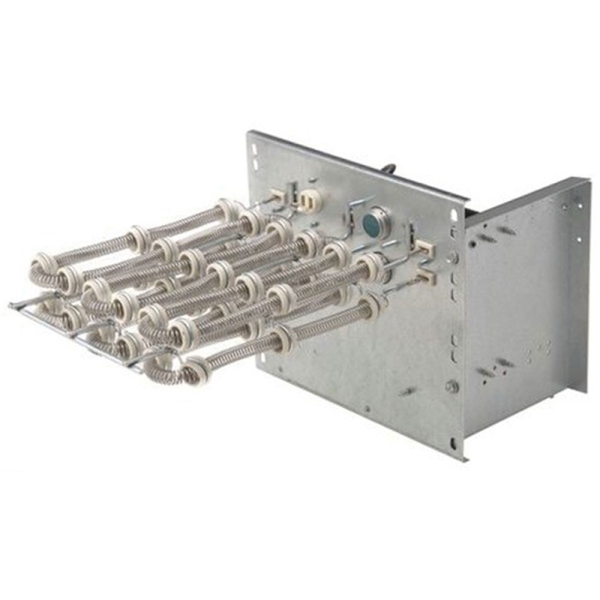

10kW Goodman Electric Heat Kit for Smartframe Air Handlers - Circuit Breaker

Item: HA10922
Model: HKSC10XC
Condition: New

10kW Goodman Electric Heat Kit for Smartframe Air Handlers - Circuit Breaker Zoom

Photo Gallery

So you need a heat strip, eh? Consider the Goodman HKSC10XC SmartFrame 10kW 208/240V Heat Strip. This device features a nickel chromium heat element that is rust-resistant, tested, and completely assembled. The heat strip itself is controlled by sequencers for superior temperature control, and built-in overcurrent protection is included on all units. The plug-in wiring harness makes air handler installation easy while the control circuit is arranged to readily permit staging.

Availability: In stock

$133.00
Ingram Financing


Ships Within 1-2 Business Days

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

So you need a heat strip, eh? Consider the Goodman HKSC10XC SmartFrame 10kW 208/240V Heat Strip. This device features a nickel chromium heat element that is rust-resistant, tested, and completely assembled. The heat strip itself is controlled by sequencers for superior temperature control, and built-in overcurrent protection is included on all units. The plug-in wiring harness makes air handler installation easy while the control circuit is arranged to readily permit staging.
Goodman HA10922

Manufacturer Highlights

Heat kits, also known as radiant electric heat, are equipped with open coil heating elements as well as controls, options, and accessories that are designed to completely replace the existing heater kit in the original manufacturer A/C unit.

Features

  • Advanced alloy open coil heater
  • All necessary limit controls with circuit breakers
  • Fully researched and tested with dimensional and electrical termination compatibility with the manufacturers' packaged unit installations
  • Designed specifically for applications in Goodman ARUF Air Handler
  • Five-year limited warranty

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model HKSC10XC
UPC 663051467972
Electrical Phase 1-Phase
Heat Strip Size 10 kW
Max Overcurrent Protection 60 amps
Primary Heating Capacity 30,001 - 35,000 BTU
Product Height (in) 16
Product Length (in) 13
Product Width (in) 9
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 8.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Will this unit fit in all Goodman Air Handlers
I am looking for a WFC2502 24KW three-step air handler. This one is a Warren Technology Brand. Do you have anything comparable?
