This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

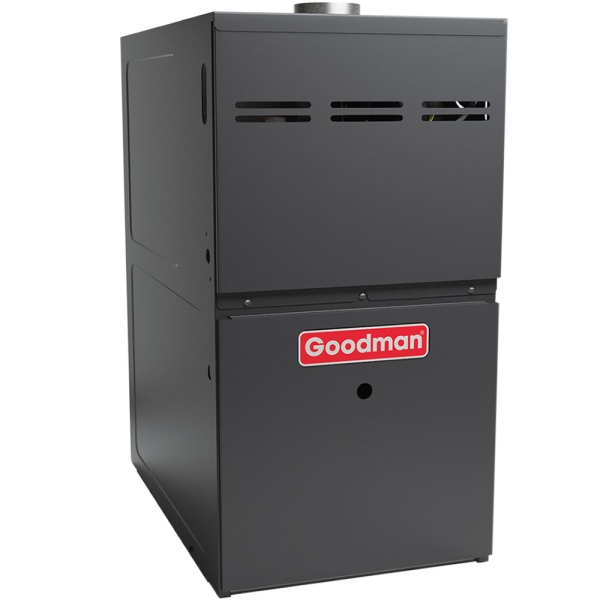

115k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet

Item: HA10649
Model: GMH951155DX
Condition: New

115k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

Do you want a gas furnace that complies with California NOx emissions standards? How about one that also delivers up to 96% AFUE performance with Dual$aver technology? Then you want a Goodman GMH95 Series Two-Stage Gas Furnace. Equipped with a tubular heat exchanger, two-stage gas valve, silicon nitride igniter, and easy-to-install top venting, a GMH95 Series gas furnace is even backed by lifetime warranty support and Goodman's quality guarantee.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Do you want a gas furnace that complies with California NOx emissions standards? How about one that also delivers up to 96% AFUE performance with Dual$aver technology? Then you want a Goodman GMH95 Series Two-Stage Gas Furnace. Equipped with a tubular heat exchanger, two-stage gas valve, silicon nitride igniter, and easy-to-install top venting, a GMH95 Series gas furnace is even backed by lifetime warranty support and Goodman's quality guarantee.

For top performance and durability, it's hard to beat the Goodman GMH95 gas furnace! This is a top quality furnace decked out with features like variable-speed, 2-stage 80,000 BTU elements. It runs very quietly so you will barely know it is running even with the variable-speed capability that heightens or lowers the speed of the motor as needed to meet the heating and cooling settings you choose. The gas valve is simple to use and easy to access, allowing this unit to run on propane (with a conversion kit) or natural gas. It comes finished with a 2-stage heating and circulating blower giving you the utmost in performance and efficiency with this furnace. Made to fit your unique project, thus furnace will operate for multi-position installations including upflow, horizontal right or horizontal left depending on your preference.

Built to last, the heavy steel finish of this 115k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet is designed with Goodman's quality priorities in mind. If a problem should occur, this product is backed by a long term parts warranty so you don't have to worry.

Not to mention, this furnace comes with a 80% AFUE rating meaning that 80 cents of every $1 you spend for heating with this furnace will go directly to warming your home. Goodman offers a wide variety of furnaces so if this one does not meet your specification, look at our other options in furnace sizes and BTUs to find one that fits your air comfort requirements.

Goodman HA10649

Manufacturer Highlights

The Goodman® brand GMH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve convertible technology allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostics, colorcoded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger
  • Designed for multi-position installation
  • Easy-to-install top venting is standard; alternate flue/vent located on the right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air inlet applications
  • Convenient left or right connection for gas and electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMH951155DX
UPC 663051484672
Gas Furnace Efficiency 95%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 2,000 - 2,400 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 110,001 - 115,000 BTU
Product Height (in) 40
Product Length (in) 28.75
Product Width (in) 24.5
System Application Type Central Split Systems
Vent Connection 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 163.0000
California Residents see Prop 65 WARNING
