This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

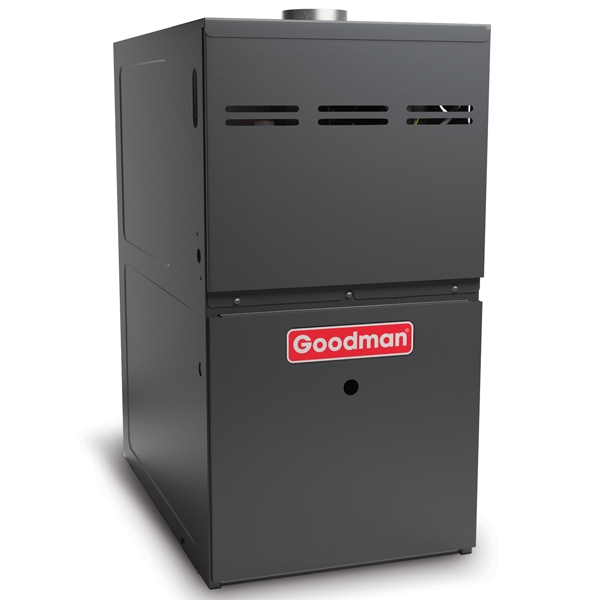

120k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet

Item: HA10646
Model: GMH81205DN
Condition: New

120k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

The Goodman GMH8 80% AFUE 120k BTU 2 Stage Multi-Speed Gas Furnace is one of the best gas furnaces of its type on the market today. It features a dual-diameter tubular heat exchanger, four-speed circulator motor, electronic control board, self-diagnostics, silicon nitride igniter, and auto-comfort mode. Best of all, it has outstanding warranty support thanks to a Lifetime Heat Exchanger Limited Warranty, 10-Year Unit Replacement Limited Warranty, and a 10-Year Parts Limited Warranty.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman GMH8 80% AFUE 120k BTU 2 Stage Multi-Speed Gas Furnace is one of the best gas furnaces of its type on the market today. It features a dual-diameter tubular heat exchanger, four-speed circulator motor, electronic control board, self-diagnostics, silicon nitride igniter, and auto-comfort mode. Best of all, it has outstanding warranty support thanks to a Lifetime Heat Exchanger Limited Warranty, 10-Year Unit Replacement Limited Warranty, and a 10-Year Parts Limited Warranty.

Are you tired of being disturbed by loud, annoying furnace racket? Upgrade your home system to a Goodman gas furnace! This heating system is designed with top quality components and coated with an outer shell of tough steel and powder paint so it will last inside and out for many years. And did we mention all Goodman products are made in the US?

Plus, you have the option to run this unit on natural gas or propane, just add a conversion kit to easily run this unit on propane. But when using natural gas, you no longer have to lift and refill propane tanks. With multi-speeds, this unit gives you the flexibility to choose settings of your choice depending on your home needs. You also get the choice of running the air up, down or sideways depending on your indoor HVAC units.

Made to run quietly at top performance, there is no question why many choose Goodman for their next furnace. You can easily connect this furnace with indoor HVAC units and a humidifier to fuel your home’s heating and cooling comfort. Goodman gently wraps the heat exchanger to retain the maximum amount of heat possible for this unit and saving you money monthly! If you were to have complications with this furnace, there is a self diagnosing control board that is simple to use and easy to read. And of course, like a Goodman products, this furnace is backed with a limited parts warranty if a serious problem ever comes up.

Goodman HA10646

Manufacturer Highlights

The Goodman® brand GMH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve convertible technology allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostics, colorcoded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger
  • Designed for multi-position installation
  • Easy-to-install top venting is standard; alternate flue/vent located on the right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air inlet applications
  • Convenient left or right connection for gas and electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMH81205DN
UPC 663051458185
AHRI Number 201702293
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 2,000 - 2,400 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 115,001 - 120,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 24.5
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 132.0000
