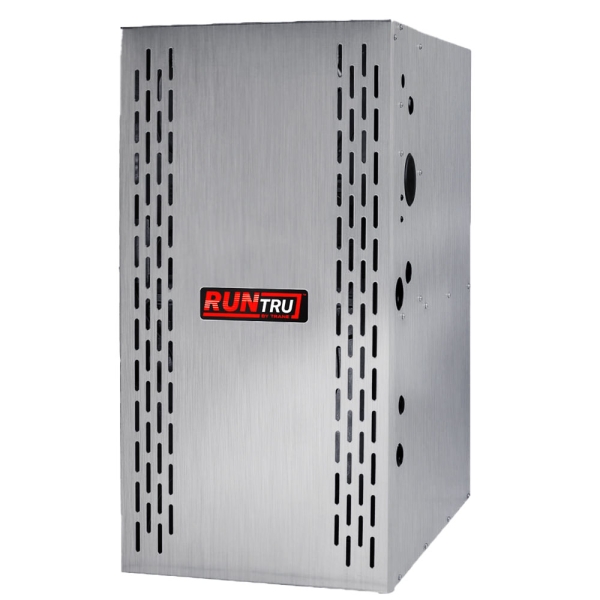

120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5" Cabinet

The 120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5inch Cabinet is the answer to keeping your loved ones warm and cozy during the winter months. This gas furnace is designed to quickly send warmed air throughout your home and is known for its quality construction, reliable dependability, and cost-saving efficiency.

This model of the Trane RunTru gas furnace has a 120,000 BTU capacity, a 5 ton nominal air flow, and an 80% annual fuel utilization efficiency (AFUE). This system works to provide affordable, reliable service even with high use.

The multiport, inshot burners in the Trane RunTru gas furnace work reliably and quietly to keep your home comfortable for many years and unnecessary noise to a minimum. You will need to purchase a conversion kit to switch the power source for this furnace to liquefied petroleum (LP).

Specification errors aren't a worry with this 120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5inch Cabinet because the flexible system can be installed in four configurations: upflow, downflow, horizontal left, or horizontal right. This gas furnace is also compatible with large, high-efficiency coils.

Trane RunTru multiposition gas furnaces are easy to move and can fit in tight spaces like closets or basements. The dimensions of this particular model are 34 high, 24.5 wide, and 28.75 deep.

Trane RunTru gas furnace heat exchangers are made of durable, cycle tested heavy gauge tubular aluminized steel. These quality components efficiently transfer heat to keep your space comfortable when temperatures drop.

Instead of a standard PSC motor, Trane RunTru gas furnaces use a constant torque blower motor that is more efficient. The motor used in this appliance has nine different speeds and produces enough airflow for most heating and cooling requirements. This gas furnace motor can easily switch speeds on demand to meet your home's needs, depending on your thermostat's features.

Trane RunTru gas furnaces are single-stage and non-condensing, and the unit's centrifugal combustion fan evenly distributes heat throughout your home. The power vent blower efficiently discharges the furnace's gas fumes outdoors and uses minimal energy to do so.

Trane RunTru gas furnaces use a silicon nitride hot surface ignition system to light the main burners instead of a traditional pilot light. The more modern ignition system is safer and eliminates the hassle of checking and lighting the pilot each new season.

The integrated control unit for Trane RunTru gas furnaces is a solid state device that allows you to manage the system's setup functions, see its status, and view diagnostics that are shown on the control's digital display.

To ensure your family is safe, the control unit continuously monitors for the presence of a flame and allows you to monitor the limit sensors, blowers, and gas valve. A rain shield covers and protects the integrated control from condensation. An additional safety measure from Tren RunTru is the unit's dual solenoid combination gas valve and regulator.

A solid galvanised steel cabinet protects and houses the Trane RunTru gas furnace components with its Air-Tite™design. The casing's energy efficiency meets ASHRAE 193's certifications with less than 1.4% air leak.

The heavy gauge steel cabinet surrounds the furnace, which provides additional strength. All installation configurations provide two venting options, and the cabinet is compatible with industry standard coils and common accessories.

The limit setting and rating data for the Trane Runtru Multi Speed Gas Furnace follow American National Standards Institute (ANSI) requirements, and Intertek certified the furnace's design for use with both natural and liquid petroleum (LP) gas. This 120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5inch Cabinet was designed, assembled, and tested in the USA and manufactured at a facility in Trenton, New Jersey.
