This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

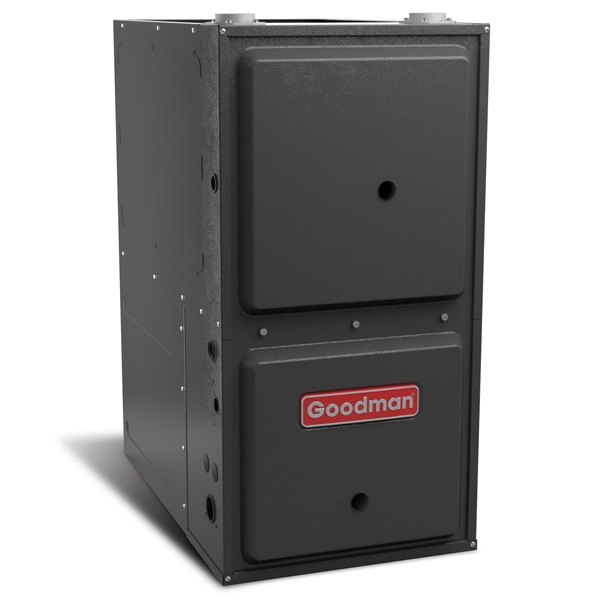

120k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 24.5" Cabinet

Item: HA10579
Model: GCSS961205DN
Condition: New

120k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

If you believe a great furnace shouldn't cost as much as a great car, take a look at the Goodman GCSS96 Single Stage 2000CFM 120k BTU 96% AFUE Gas Furnace. This is a reasonably priced unit with superior warranty protection and quality components. The standard package includes dual heat exchangers, silicon nitride igniter, 21 inch cabinet with an air leakage rate below 2%, self diagnostic features, and more.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

If you believe a great furnace shouldn't cost as much as a great car, take a look at the Goodman GCSS96 Single Stage 2000CFM 120k BTU 96% AFUE Gas Furnace. This is a reasonably priced unit with superior warranty protection and quality components. The standard package includes dual heat exchangers, silicon nitride igniter, 21 inch cabinet with an air leakage rate below 2%, self diagnostic features, and more.

When choosing a gas furnace for your home, you're probably looking for an ideal combination of excellent price, durability and energy efficiency. Look no further than the Goodman 120k BTU gas furnace! Featuring an extremely durable heat exchanger, a quiet performing, multi-speed motor, and a durable silicon nitride igniter, the GCSS96 has been engineered to bring high efficiency and cost savings to the homeowner!

This system from Goodman features a strong aluminized-steel heat exchanger paired with a secondary exchanger made of stainless-steel which results in a powerful and efficient furnace system. It also comes complete with a silicon nitride igniter that eliminates the need for an uneconomical pilot light, a single-speed, induced-draft blower, and a self-diagnostic control board that monitors the system for problems.

This 120,000k BTU, single-stage gas furnace works at maximum capacity. Its high durability and efficiency allow the unit to run at full strength no matter the outside temperature, which translates to maximum heat output for you! The downflow/horizontal functionality makes this unit ideal for closet, attic, or crawl space installation. And with a thermally insulated steel cabinet, the air leakage has been reduced to less than 2% ensuring maximum airflow.

Low maintenance and budget-friendly features produce are bundled in this highly efficient furnace that will maximize your home's heating comfort. The Goodman GCSS96 has been designed to function quietly and without worry to the homeowner. All of these features make this furnace the perfect choice for your home heating needs and at an excellent value!

Goodman HA10579

Manufacturer Highlights

The Goodman® brand GCSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board with constant memory fault code history output to a LED
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GCSS961205DN
UPC 663051469389
AHRI Number 7365106
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 2,000 - 2,400 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 115,001 - 120,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 24.5
System Application Type Central Split Systems
Vent Connection 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 154.0000
