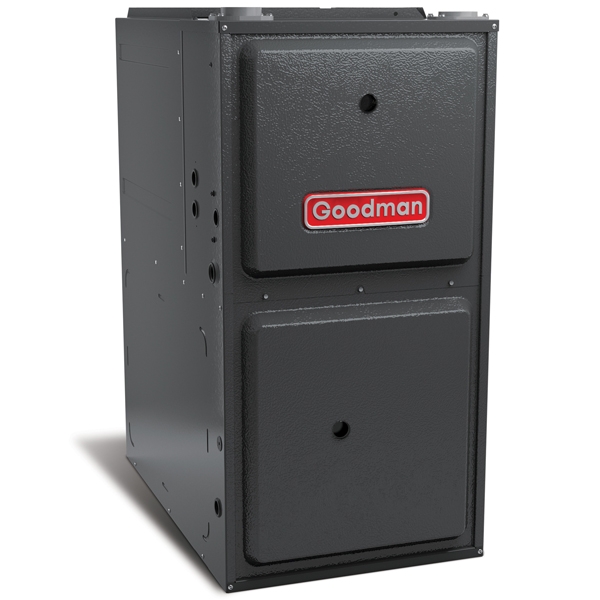

120k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet

Item: HA10679
Model: GMSS961205DN
Condition: New

120k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

There is no reason you should struggle through winter with inadequate heating and a high gas bill. A high efficiency system like the Goodman GMSS96 Single Stage 2000CFM 120k BTU 96% AFUE Gas Furnace can deliver reliable air comfort while it keeps your energy costs in check. This durable unit comes standard with aluminized-steel tubular heat exchanger, stainless steel secondary heat exchanger, color-coded low voltage terminals, and meets California Low NOx emissions standard.

Availability: In stock

$1,181.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

There is no reason you should struggle through winter with inadequate heating and a high gas bill. A high efficiency system like the Goodman GMSS96 Single Stage 2000CFM 120k BTU 96% AFUE Gas Furnace can deliver reliable air comfort while it keeps your energy costs in check. This durable unit comes standard with aluminized-steel tubular heat exchanger, stainless steel secondary heat exchanger, color-coded low voltage terminals, and meets California Low NOx emissions standard.
Goodman HA10679

Manufacturer Highlights

The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Multi-speed blower motor
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Foil-faced insulated heat exchanger cabinet
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GMSS961205DN
UPC 663051469228
AHRI Number 7365101
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 2,000 - 2,400 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 115,001 - 120,000 BTU
Product Height 34.5
Product Length 28.875
Product Width 24.5
System Application Type Central Split Systems
Vent Connection 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 154.0000
