12k BTU 20 SEER2 Mitsubishi JX Ductless Heat Pump Split System - Wall Mounted - 115V - R454B
Shop All MITSUBISHI

Accessories
Description / Documents
There are any number of reasons why you may find yourself in need of a single-zone HVAC solution to run alongside your central setup. To keep your bedroom frigid through the night or give guests control over the temperature in their room, a 12k BTU 20 SEER2 Mitsubishi JX Wall Mounted Ductless Split System - Wall Mounted - 115V - R454B can make a world of difference. Backed by both ETL listing and AHRI certification, the Mitsubishi Ductless Heat PumpSystem proves the integrity of every operational and safety claim by passing intensive evaluations from third-party agencies. Make the most of every square inch of your living space with the integration of a 12k BTU Mitsubishi JX Split System.
Built to go the distance for your needs, the condenser in the 12k BTU 20 SEER2 Mitsubishi JX Wall Mounted Ductless Split System - Wall Mounted - 115V - R454B boasts a construction that won’t leave you high and dry. A blue fin treatment amplifies the natural corrosion resistance of the aluminum used in the fins of the heat exchanger, guaranteeing a durable design that won’t be worse for wear in harsh coastal and industrial environments. Thanks to the inverter-driven compressor that keeps temperatures locked closer to your set-point throughout the day to maintain top-tier comfort while conserving energy, the Mitsubishi Heat Pump goes above and beyond to give you the lasting results you want in every season.
Crafted to make indoor comfort simple, the air handler in the 12k BTU 20 SEER2 Mitsubishi JX Wall Mounted Ductless Split System - Wall Mounted - 115V - R454B provides the tailored airflow you want to ensure comfort exactly where you are. Between the econo cool and smart dry mode settings, you can cater your indoor environment beyond just standard temperature regulation. Additional settings like a 12-hour timer and four unique fan settings provide more options that ensure lasting comfort in any situation. With a dual barrier coating to stop pollutants like dust, dirt, dander, and more from sticking to the walls inside the unit to maintain better efficiency over time, you can relax knowing the Mitsubishi Split System is the perfect option for your needs.
When you can have the results you want without leaving one room of your home to suffer in seasonal temperature extremes, there’s no reason to settle for less. Bring home a 12k BTU Mitsubishi JX Ductless Split System with Wall Mounted Air Handler utilizing R454B refrigerant today and guarantee the exact temperatures you and your loved ones want all year long.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MUZ-JX12WL,MSZ-JX12WL |
|---|---|
| AHRI Number | 216626293 |
| Bundle Avg Coverage Area | 500 - 600 Sq Ft |
| Bundle Cooling Capacity | 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 20 |
| Heat Pump Efficiency (HSPF2) | 10 |
| Zones | 1 |
| Region Compatibility | Nationwide |

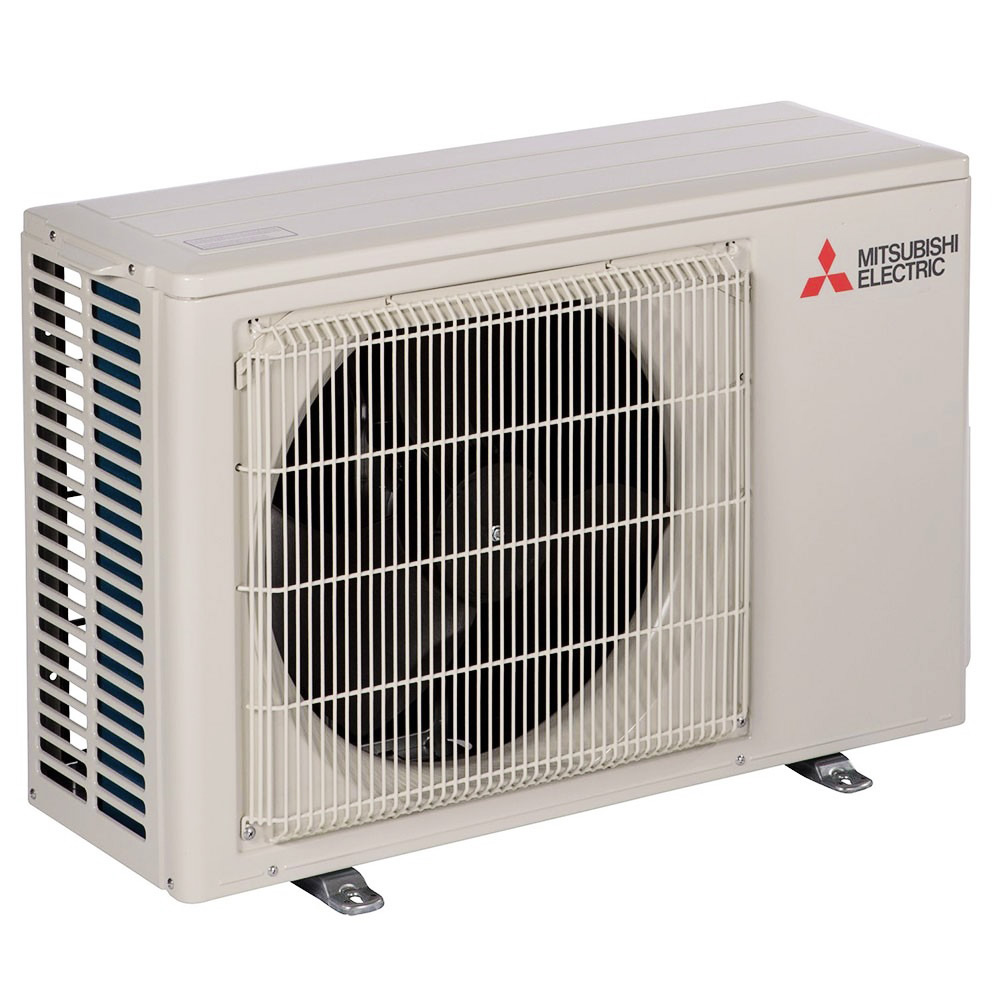

MUZ-JX12WL Specifications:
| Model | MUZ-JX12WL |
|---|---|
| UPC | 192890002834 |
| AHRI Number | 216626293 |
| Product Height (in) | 21.625 |
| Avg Coverage Area | 500 - 600 Sq Ft |
| Product Length (in) | 11.25 |
| Compressor | Single Stage |
| Product Width (in) | 31.5 |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 89.000000 |
| Primary Heating Capacity | 15,001 - 20,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 20 |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |

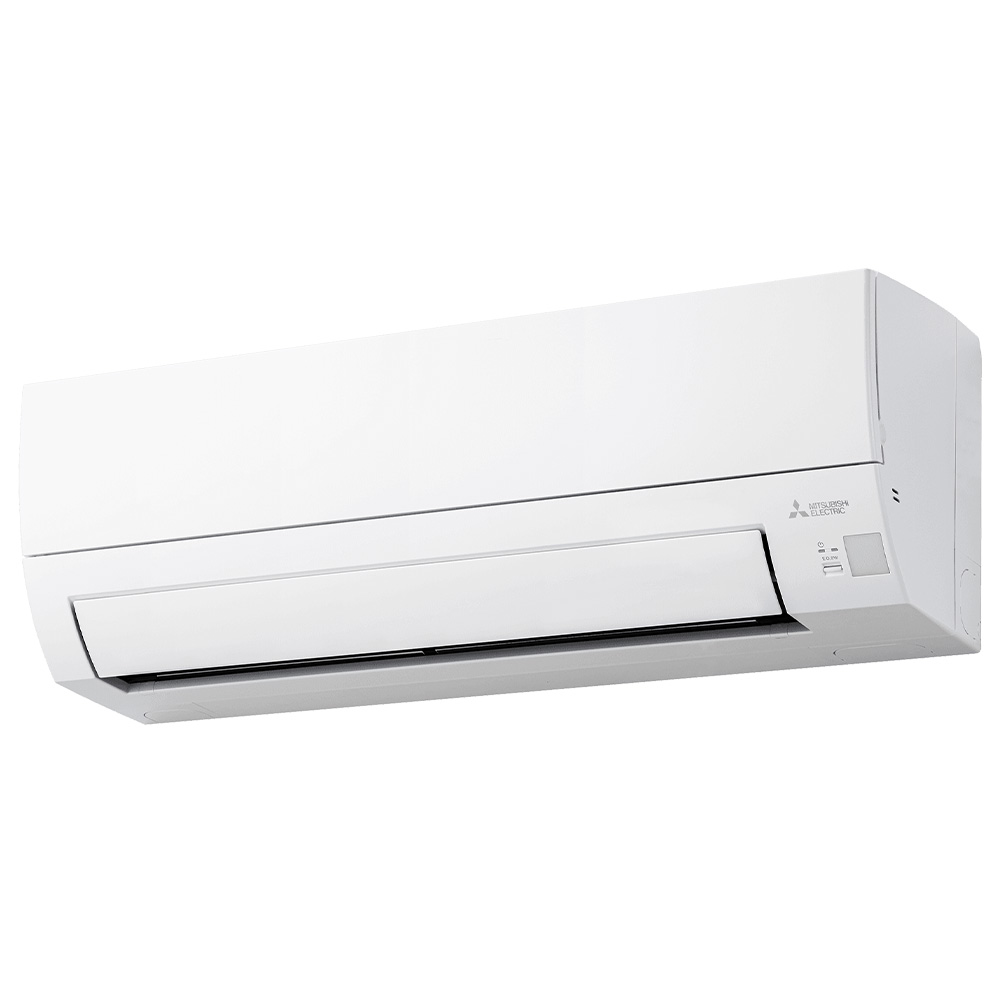

MSZ-JX12WL Specifications:
| Model | MSZ-JX12WL |
|---|---|
| UPC |  647379455194 |
| Product Height (in) | 11.031 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.25 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Refrigerant | R-454b |
| Special Features | Remote Management, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 10 Year Parts |
