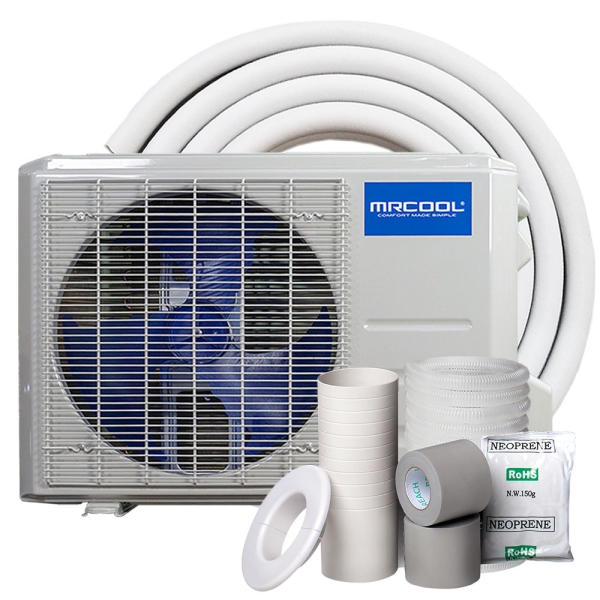

Name: 12k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3rd Generation - with 25 ft Line Set
Brand: MrCool
SKU: HA20860
Price: 537.7 USD
Availability: OutOfStock

✓ Link Copied!

Shop All MRCOOL

Item:

HA20860

Model:

DIY-12-HP-C-115B

Condition:

New

12k-btu-22-seer-mrcool-diy-ductless-heat-pump-condenser-3rd-generation-with-25-ft-line-set-ha20860-01.3548

Out of stock

Let me know when it’s back in stock:

The 12k BTU MrCool DIY 3rd Gen Ductless Heat Pump Condenser is part of the MrCool DIY mini split system that has such a straightforward installation that you can do it yourself without special tools, equipment, or training. It's a home improvement project you can tackle in just a few hours!

Accessories

Description / Documents

It is designed to work with the MrCool DIY lineset (25 ft included in the box), a cutting-edge technology that makes installation safe, easy, and inexpensive. Everything can come pre-charged and ready to install. The condenser comes pre-charged with R-410A refrigerant, an environmentally friendly and chlorine free option that avoids damage to the ozone layer.

In addition to being easy to install, the 12k BTU MrCool DIY 3rd Gen Ductless Heat Pump Condenser also runs quietly so you won't even notice when the unit kicks on. This ductless mini split heat pump has a heating and cooling capacity up to 12,000 BTU, helping keep your home the perfect temperature all year round.

If you live near the coast or in a state plagued by high humidity, there's no need to worry about operating life with the 12k BTU MrCool DIY 3rd Gen Ductless Heat Pump Condenser. The Gold Fin Condenser is corrosion resistant and built to withstand long term exposure to the elements. But what if you're more worried about the unit operating during cold winter weather? This condenser is AHRI certified to continue effective operation below freezing.

The 12k BTU MrCool DIY 3rd Gen Ductless Heat Pump Condenser is able to auto restart in case of a power outage. You won't need to lift a finger to get your HVAC running quickly once the power is restored. You also get safeguards thanks to features like leak detection. The unit can detect when it is low on refrigerant and alert you with an alarm to prevent damage to the compressor. With leakage detection you can trust that your MrCool DIY is running smoothly and efficiently to keep you comfortable in your own home.

This 12k BTU MrCool DIY 3rd Gen Ductless Heat Pump Condenser can be anchored to the ground or be attached to a wall with an exterior mounting bracket. The unit is 31.5 inches wide, 21.8 inches tall, and 13.1 inches deep; meanwhile, the mounting dimensions are 20.24 inches wide by 13.39 inches deep.

With MrCool, you can control your heat and air wirelessly, via either the included remote or from an app on your smartphone. Conveniently manage the temperature of your home with an easy push of a button!

Additional Documents

From the Manufacturer

DIYB Customer Brochure

DIYB Installation Manual

DIYB Quick Start Guide

DIYB Warranty

Customer Reviews / Q&A

Specifications

System Overview

Model	DIY-12-HP-C-115B
UPC	810512033423
Product Height (in)	21.81
Avg Coverage Area	500 - 600 Sq Ft
Product Length (in)	13.11
Compressor	Inverter
Product Width (in)	31.5
Cooling Capacity	1 Ton
Electrical Phase	1-Phase
Heat Pump Efficiency (HSPF)	10
Line Set Connection Type	Quick Connect
Liquid Line Size	1/4 inch
Max Overcurrent Protection	20 amps
Weight (lbs)	102.290000
Primary Heating Capacity	10,001 - 15,000 BTU
Cooling Efficiency	19 SEER and Above
Series	DIY
System Application Type	Ductless Split Systems
Voltage	120
Warranty	5 Year Parts, 7 Year Compressor
Region Compatibility	Nationwide
