This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

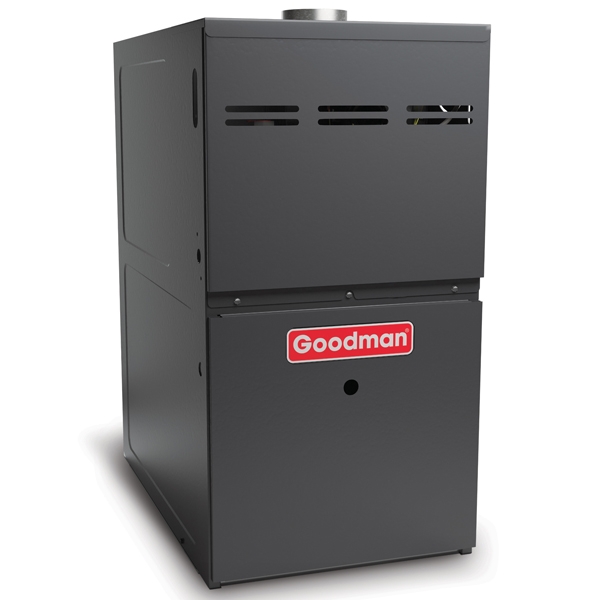

140k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet

Item: HA10664
Model: GMS81405DN
Condition: New

140k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

How many products have you bought in the past year that came with a lifetime warranty? One? None? The Goodman GMS8 Series Single-Stage Gas Furnace is such a good HVAC product that Goodman was comfortable backing up this system with a Lifetime Heat Exchanger Limited Warranty. The heat exchanger is the most important part on a furnace, so that's a lot of confidence. It's AHRI certified and ETL listed too.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

How many products have you bought in the past year that came with a lifetime warranty? One? None? The Goodman GMS8 Series Single-Stage Gas Furnace is such a good HVAC product that Goodman was comfortable backing up this system with a Lifetime Heat Exchanger Limited Warranty. The heat exchanger is the most important part on a furnace, so that's a lot of confidence. It's AHRI certified and ETL listed too.

Looking for a retrofit heating solution that makes installation easy and pain free? Do you also want a price tag that won't empty your bank account? Are you interested in products made by Goodman, a trusted industry leader that ensures you get a quality product? Then the Goodman GMS81 gas furnace may be exactly what you've been looking for.

Retrofit solutions with a system like the GMS81 are among the cheapest installations, in most cases. You can reuse your existing venting system keeping material expenditures and installation time to a minimum. Just have your technician inspect your existing venting system to make sure it is safe to use.

The 140k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet is convertible to be used with propane with the installation of a conversion kit. With an efficiency rating of 80% the 140,000 BTU input makes this furnace suitable for spaces large homes in various climate zones. Adding a central air system like this one to your home will also help improve interior air quality thanks to the new filtration that will remove some dust and debris.

Included in this furnace is a multi-speed circulation blower to accommodate your homes specific needs. If you register your furnace with Goodman within 60 days of your installation, you can extend your warranty beyond the default minimum.

Goodman HA10664

Manufacturer Highlights

The Goodman® brand GMS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Norton hot surface mini-igniter
  • Quiet multi-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and lowvoltage terminal block
  • Quiet single-speed, induced-draft blower

Cabinet Features

  • Foil-faced insulation lines the heat exchanger compartment
  • Factory sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: upflow, horizontal left or right
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMS81405DN
UPC 663051517905
AHRI Number 201696695
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 2,500 - 3,000 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 135,001 - 140,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 24.5
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 173.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Is this a 5 burner gas furnace ?
Can you call me if this comes back in stock?
