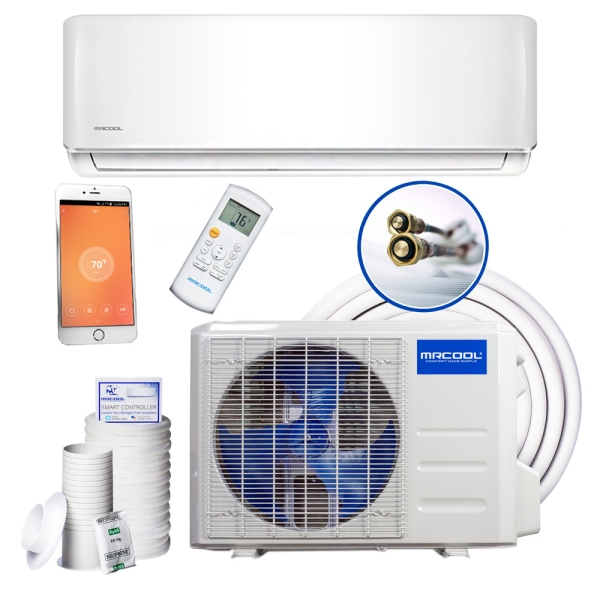

18k BTU 16 SEER MrCool DIY Ductless Heat Pump Condenser

Item: HA11017
Model: DIY-18-HP-C-230A
Condition: New

18k BTU 16 SEER MrCool DIY Ductless Heat Pump Condenser Zoom

Photo Gallery

Simplicity is the key to MRCOOL's DIY Series. It's the only ductless mini-split system on the market that's specifically designed for amateur installation. You don't need special tools or training to install this DIY-18-HP-C-230A Condenser. It comes with linesets precharged with R-410A refrigerant, so you don't have to deal with the refrigerant inside the coils. This unit also features quick electrical connections.

Availability: In stock

$879.67
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

MrCool

What's Included

What customers are saying...



Overview

Product Features

Simplicity is the key to MRCOOL's DIY Series. It's the only ductless mini-split system on the market that's specifically designed for amateur installation. You don't need special tools or training to install this DIY-18-HP-C-230A Condenser. It comes with linesets precharged with R-410A refrigerant, so you don't have to deal with the refrigerant inside the coils. This unit also features quick electrical connections.
MrCool HA11017

The only ductless air conditioning and heating unit that is easy to install for thousands less than a conventional HVAC system. Mr Cool DIY even adjusts the temperature to the perfect degree wherever you are in your room.

A MRCOOL DIY Series heat pump is the only ductless mini split system on the market explicitly designed for amateur installation. You don't need special tools or training to install this high efficiency heat pump. The line set precharged with R410A refrigerant, the quick hook-up electrical connections, and the quality engineering mean just about anyone can install a MRCOOL DIY in their home with no problem at all in only a few short hours. If you want great air comfort without paying an arm and a leg for installation, you want an easy-to-use MRCOOL DIY Series ductless heat pump.

Unlike any other ductless heat pump on the market, the MRCOOL DIY series is specifically designed for easy installation. The MRCOOL DIY series comes with a precharged refrigerant line, alleviating one major obstacle to amateur installation in a single stroke.

MRCOOL ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible fabrication can produce. These air conditioners rely on state-of-the-art manufacturing processes and advanced design to deliver high efficiency air comfort anywhere you need it.



  • EASY DIY INSTALLATION The included 25′ pre-charged 410 quick connect lineset allows you to install this innovative ductless system without special tools, equipment, or training.
  • FOLLOW ME Personalized Performance for wherever you are in the room. Keep the remote close by, and MRCOOL DIY will track the air temperature around you to ensure you receive maximum comfort.
  • LOW AMBIENT COOLING Cool all the way down to 5°F. This feature makes the MRCOOL DIY the ideal system for server rooms, greenhouses, and any other application that requires cooling all year.
  • AUTO RESTART Never lift a finger after a power outage. The MRCOOL DIY auto restart will have the unit running again in no time at all.
  • GOLD FIN CONDENSER Live on the coast? Don’t worry, our condenser is built to resist long term corrosion.
  • REMOTE APP WIFI CONTROL Control your DIY anywhere with your Apple or Android smart device and an internet connection.
  • TEMPERATURE COMPENSATION Our temperature compensation technology help keeps you comfortable in any weather conditions
  • LEAKAGE DETECTION When the MRCOOL DIY detects low coolant an alarm will sound to alert you to the problem. This will prevent damage to the compressor while you maintain high air comfort.
  • SLEEP MODE We made Sleep Mode easy to program to save money, and let you sleep a little easier.
  • LOUVER POSITION MEMORY The louver will automatically move to the same position as you set last time the unit was turned on.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model DIY-18-HP-C-230A
UPC 853962006852
Avg Coverage Area 750 - 900 Sq Ft
Compressor Inverter
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 9.5
Lineset Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Primary Heating Capacity 10,001 - 15,000 BTU
Product Height 22
Product Length 13
Product Width 32
Cooling Efficiency 16 SEER
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 81.0000
Region Compatibility Nationwide
