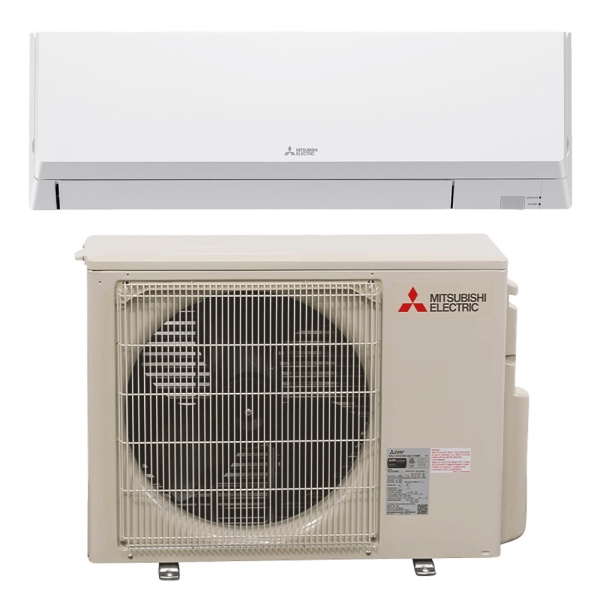

18k BTU 19.5 SEER2 Mitsubishi P-Series Ductless Heat Pump Split System - Wall Mounted - R454B
Shop All MITSUBISHI
Item:
HA28057
Model:
PUZ-AK18NL,PKA-AL18NL
Condition:
New

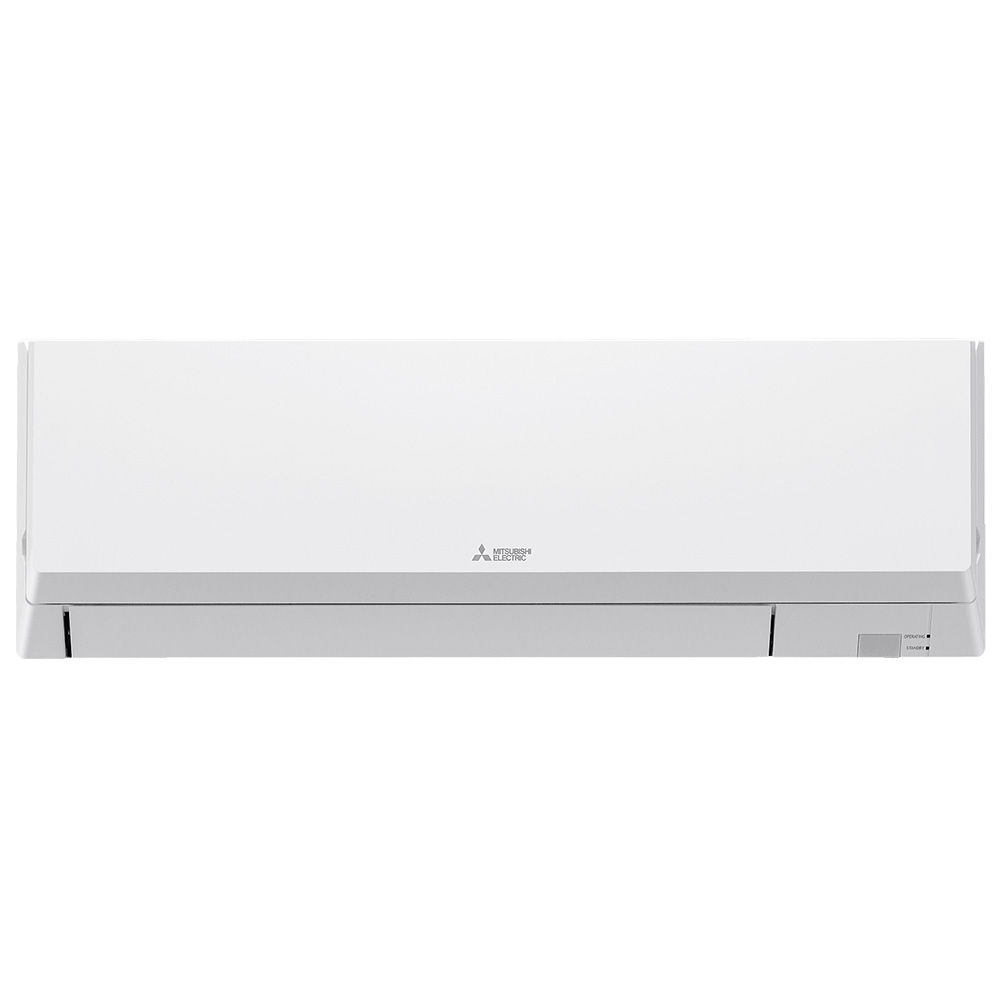

18k BTU Mitsubishi P-Series Wall Mounted Ductless Air Handler - R454B
Item: HA28036Model: PKA-AL18NL
Qty: 1
Description / Documents
Customer Reviews / Q&A
Specifications
System Overview
| Model | PUZ-AK18NL,PKA-AL18NL |
|---|---|
| AHRI Number | 215712225 |
| Bundle Avg Coverage Area | 750 - 900 Sq Ft |
| Bundle Cooling Capacity | 1.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 19.5 |
| Heat Pump Efficiency (HSPF2) | 8.9 |
| Series | P-Series |
| Zones | 1 |
| Region Compatibility | Nationwide |

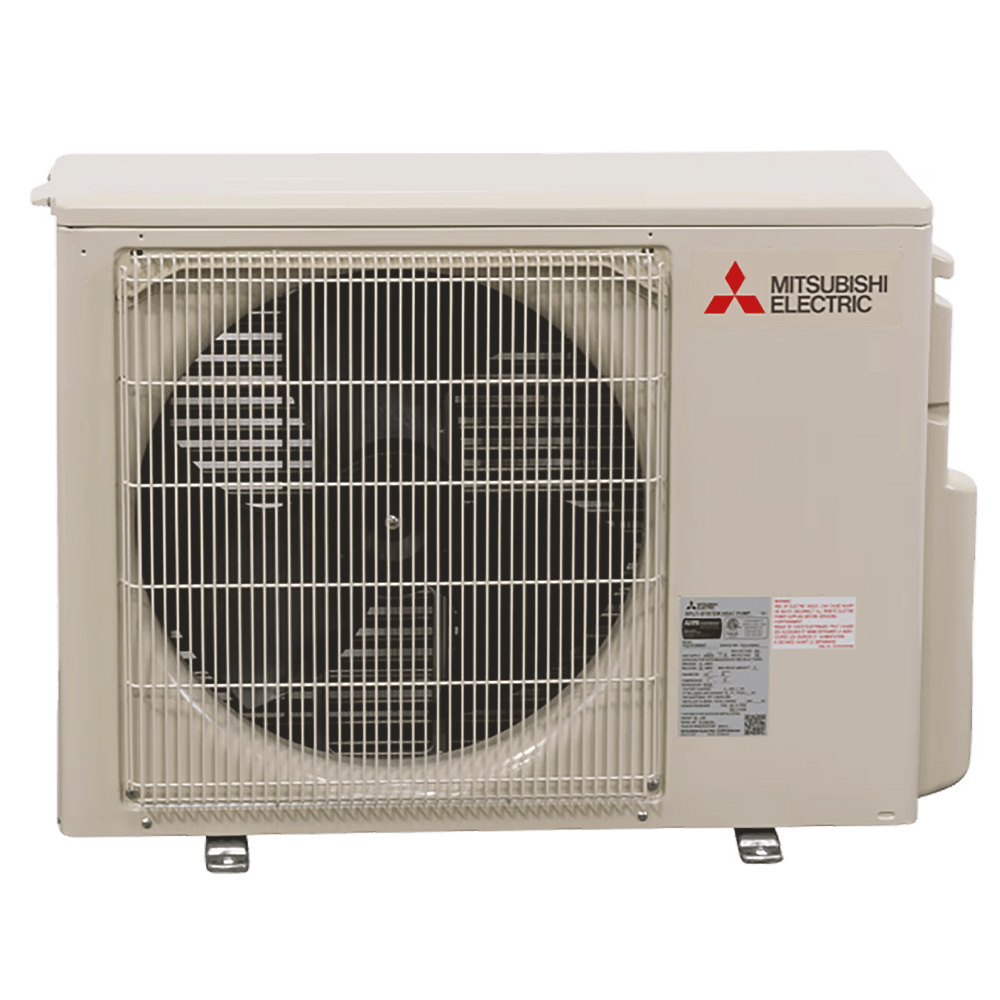

PUZ-AK18NL Specifications:
| Model | PUZ-AK18NL |
|---|---|
| UPC | 192890003459 |
| AHRI Number | 215712225 |
| Product Height (in) | 24.8125 |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Product Length (in) | 31.8125 |
| Compressor | Inverter |
| Product Width (in) | 11.8125 |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.8 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 99.000000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 19.5 |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
PKA-AL18NL Specifications:
| Model | PKA-AL18NL |
|---|---|
| UPC | 192890003787 |
| Product Height (in) | 11.7813 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.3438 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 35.3438 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 28.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
