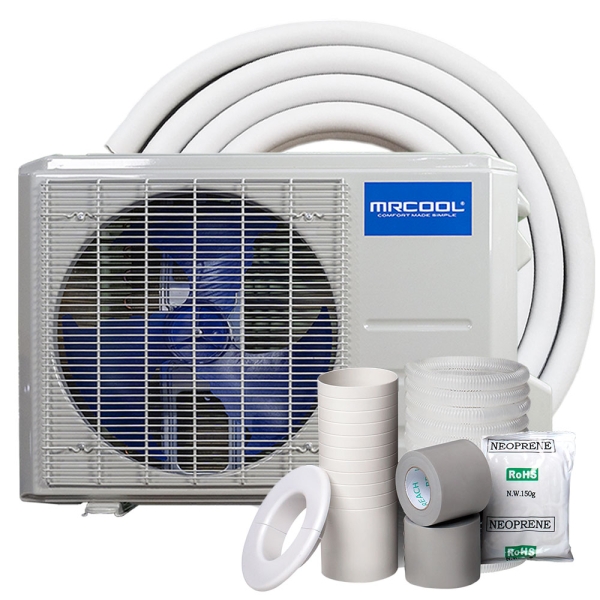

Name: 18k BTU 20 SEER MrCool DIY Ductless Heat Pump Condenser - 3rd Generation - with 25 ft Line Set
Brand: MrCool
SKU: HA20861
Price: 874.87 USD
Availability: OutOfStock

✓ Link Copied!

Shop All MRCOOL

Item:

HA20861

Model:

DIY-18-HP-C-230B

Condition:

New

18k-btu-20-seer-mrcool-diy-ductless-heat-pump-condenser-3rd-generation-with-25-ft-line-set-ha20861-01.3548

Out of stock

Let me know when it’s back in stock:

With an installation so simple you can do it yourself, the 18k BTU MrCool DIY 3rd Gen Heat Pump Condenser is just what you've been looking for. Along with a matched DIY air handler and pre-charged quick connect DIY line set, this condenser can start working for you in just a few hours without special tools, training, or equipment.

Accessories

Description / Documents

What makes it so special? This DIY condenser is configured for use with a pre-charged Quick Connect DIY line set, a cutting-edge technology from MrCool. The Quick Connect DIY line set makes installation safe, easy, inexpensive, and saves you from calling someone else to your home to get your HVAC setup and working. The lineset uses R-410A refrigerant, which is an eco-safe option to antiquated Freon. R-410A is chlorine free and won't hurt the ozone layer.

Tired of a noisy outdoor unit? The 18k BTU MrCool DIY 3rd Gen Heat Pump Condenser runs quietly, and the unit comes with sound dampening pads, making your daily life interruption free. This ductless mini split heat pump also has a heating and cooling capacity up to 18,000 BTUs to help keep your home at your preferred temperature all year round.

Do you live near water or have high humidity? If so, no need to worry about corrosion because the 18k BTU MrCool DIY 3rd Gen Heat Pump Condenser uses a Gold Fin Condenser. Gold Fin technology provides superior protection and is corrosion resistance.

For a solution to winter temperatures that dip way down low, the 18k BTU MrCool DIY 3rd Gen Heat Pump Condenser can function in outdoor temperatures as low as 5 degrees Fahrenheit.

And this unit will eliminate any worries you might have about refrigerant leaks. It can detect on its own when it is low on refrigerant and has an alarm to make sure it continues to operate smoothly. Another benefit of this outdoor unit, is that the heat pump condenser has the capability to auto restart in case of a power outage. When the lights come back on, your HVAC will restart all on its own.

When it comes to installation, this 18k BTU MrCool DIY 3rd Gen Heat Pump Condenser can be anchored on a pad or supported by a wall-mounted bracket. This compact mini split condenser is 33.25 inches wide, 27.63 inches tall, and 14.29 inches deep; meanwhile, the mounting dimensions are 21.26 inches wide by 13.8 inches deep.

With MrCool, use your smartphone or the included remote to manage your home's temperature. Without moving from the couch or interrupting your daily activities, you can control your heat and air through your wireless internet connection!

Additional Documents

From the Manufacturer

DIYB Customer Brochure

DIYB Installation Manual

DIYB Quick Start Guide

DIYB Warranty

Customer Reviews / Q&A

Specifications

System Overview

Model	DIY-18-HP-C-230B
UPC	810512033430
Product Height (in)	27.64
Avg Coverage Area	750 - 900 Sq Ft
Product Length (in)	14.29
Compressor	Inverter
Product Width (in)	33.27
Cooling Capacity	1.5 Ton
Electrical Phase	1-Phase
Heat Pump Efficiency (HSPF)	10
Line Set Connection Type	Quick Connect
Liquid Line Size	1/4 inch
Max Overcurrent Protection	20 amps
Weight (lbs)	122.360000
Primary Heating Capacity	15,001 - 20,000 BTU
Cooling Efficiency	19 SEER and Above
Series	DIY
System Application Type	Ductless Split Systems
Voltage	240
Warranty	5 Year Parts, 7 Year Compressor
Region Compatibility	Nationwide
