This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

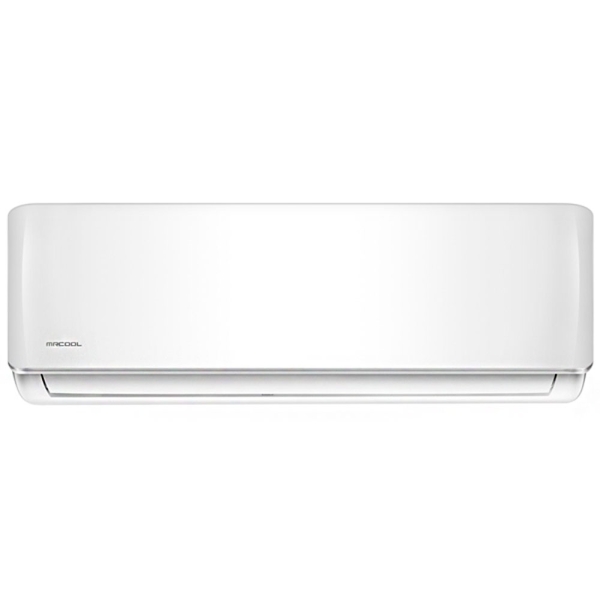

18k BTU MrCool Advantage Ductless Wall Mounted Air Handler

Item: HA11012
Model: A-18-HP-WMAH-230A
Condition: New

18k BTU MrCool Advantage Ductless Wall Mounted Air Handler Zoom

Photo Gallery

Designed to work alongside a MRCOOL Ductless Heat Pump Condenser, the A-18-HP-WMAH-230A is easy to install and operate. Once R-410A refrigerant is pumped in, this precision engineered air handler allows you to direct the flow where and when you want. Auto Restart and Louver Position Memory are just two of the functions you'll love. Designed for highly energy efficient operation, this unit comes with 16 feet of installation kit.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool
Up to 40% Off - Call for Info

Click To Sign Up Now!

What's Included

What customers are saying...



Overview

Designed to work alongside a MRCOOL Ductless Heat Pump Condenser, the A-18-HP-WMAH-230A is easy to install and operate. Once R-410A refrigerant is pumped in, this precision engineered air handler allows you to direct the flow where and when you want. Auto Restart and Louver Position Memory are just two of the functions you'll love. Designed for highly energy efficient operation, this unit comes with 16 feet of installation kit.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model A-18-HP-WMAH-230A
UPC 856965006393
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Product Height (in) 13
Product Length (in) 8
Product Width (in) 38
Series Advantage
Special Features WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 2 Year Parts
Weight (lbs) 26.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
How big of area will the 18btu keep cool?
Does the unit need a personal outlet?
I am a female senior citizen and cannot do this myself. Do I just get an a regular air conditioning tech to install this? How much for the unit and all the additional items needed to install it?
Our walls are concrete block. Is this something that could still be installed through concrete brick?
Does the unit work alone or do you have to buy the “MRCOOL Ductless Heat Pump Condenser that it is designed to work alongside”? to have any functionality?
How much square footage does this cool?
How does it work?
How do you mount this?
Does this indoor unit come with a remote?
