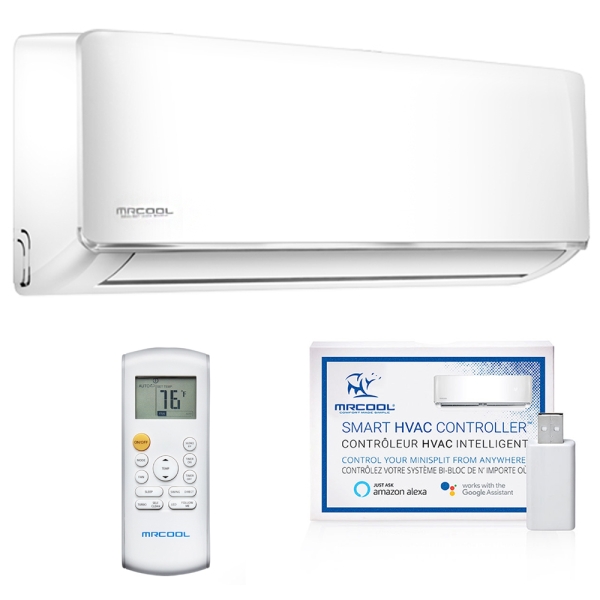

18k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation

Item: HA20865
Model: DIY-18-HP-WMAH-230B
Condition: New

18k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation Zoom

Photo Gallery

The 18k BTU MrCool DIY 3rd Gen Ductless Air Handler with a compatible MrCool DIY condenser is a legitimately do it yourself heating and cooling option. This air handler has an 18,000 BTU capacity and can heat and cool up to 750 square feet. And, as we said before, only a MrCool DIY air handler is uniquely designed for amateur installation.

Availability: On backorder

$570.15
Ingram Financing


Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

What's Included

What customers are saying...



Overview

The 18k BTU MrCool DIY 3rd Gen Ductless Air Handler with a compatible MrCool DIY condenser is a legitimately do it yourself heating and cooling option. This air handler has an 18,000 BTU capacity and can heat and cool up to 750 square feet. And, as we said before, only a MrCool DIY air handler is uniquely designed for amateur installation.

With MrCool, interruptions to your daily life are kept to a minimum. With this smart system, there is no need to reset the horizontal louver to ensure your home is evenly cooled or heated. The 18k BTU MrCool DIY 3rd Gen Ductless Air Handler remembers where you set the louver and automatically goes back to that position once it is turned back on.

This indoor wall unit offers several modes and features to make sure it operates just the way you want for your home.

In AUTO mode, the unit will automatically select cooling, heating, or fan-only operation based on the set temperature and the temperature of your room so you don't have to constantly monitor the temperature of your home.

In SLEEP mode, the temperature will increase 2°F per hour when cooling and decrease 2°F per hour when heating during the first two hours of operation. It continues at that new temperature for six hours, then returns to its normal operation. This allows you to fall asleep comfortably and save money while you snooze.

By using the TIMER feature, you can limit your energy usage and save money on your electricity bill.

This air handler also offers a DRY mode that will regulate the temperature and dehumidify at the same time by switching between the cooling and fan-only operations.

Keeping on top of your air handler's maintenance is easy with the 18k BTU MrCool DIY 3rd Gen Ductless Air Handler. The wall unit can let you know when your HVAC is leaking refrigerant, prevent mildew growth with the Anti-Mildew Function, and remind you when the air filter needs to be cleaned or replaced. The MrCool DIY 3rd Generation will also auto restart in the event of a power outage. So you don't have to lift a finger to get your home to a comfortable temperature when power returns.

You can control your unit wirelessly right out of the box with your Google Assistant, Amazon Alexa, or Apple or Android smartphone thanks to the MrCool Smart Controller. You get options and features other brands can't match! Get your 18k BTU MrCool DIY 3rd Gen Ductless Air Handler now.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIY-18-HP-WMAH-230B
UPC 810512033478
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Product Height (in) 13.19
Product Length (in) 8.9
Product Width (in) 42.52
Series DIY
Special Features WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 54.0100
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
My space is 16 inches in height. Will i have enough spce/clearance? How much breathing room is needed from the ceiling to the top of the unit?
I see these units typically installed high in a room... with air flowing from the bottom. Can the be installed low in a room with air flowing from the top of the unit not the bottom?
Do you offer longer line sets than 25 ft.
Do you have available a DIY 18K btu system with 1 ceiling cassette?
I wanted to install this on the second floor but was curious because the walls arent plumb the top half of the walls are Angeled with the roof of the house...does the air handler have to be installed plumb and level or just level and the plumb isnt a problem?
