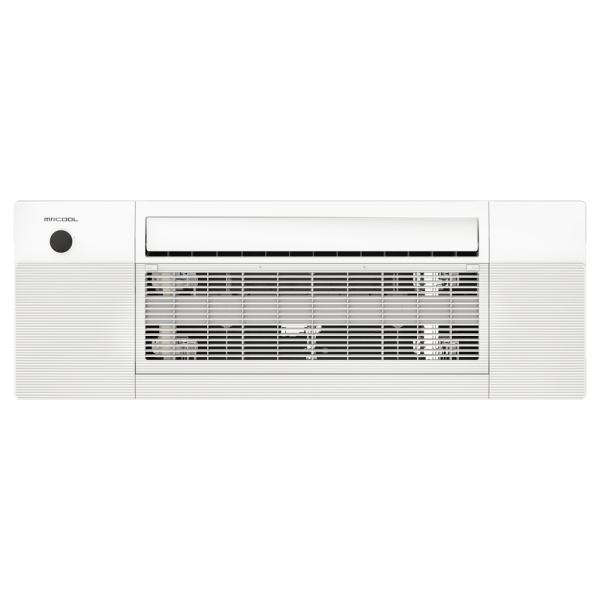

Name: 18k BTU MrCool DIY OuttaSight Ductless Ceiling Cassette Air Handler
Brand: MrCool
SKU: HA22213
Price: 1199 USD
Availability: OutOfStock

✓ Link Copied!

MRCOOL

Item:

HA22213

Model:

DIYCASSETTE18HP-230C25

Condition:

New

18k-btu-mrcool-diy-ductless-ceiling-cassette-air-handler-ha22213-01.3548

Out of stock

Let me know when it’s back in stock:

Your perfect heating and cooling solution shouldn't just feel good, it should look good too! The 18k BTU MrCool DIY Ductless Ceiling Cassette Air Handler provides efficient heating and cooling while being attractive and discrete. It is both easy to install and easy to maintain thanks to its innovative design features. Available in both single and multi-zone configurations and ranging from .5 to 1.5 tons, the ceiling cassette can provide effective coverage for small and large areas of your home. As one of the most versatile ceiling units ever, it is the superb fit for any space that can support the installation as intended on a horizontal surface.

Description / Documents

You're able to install the 18k BTU MrCool DIY Ductless Ceiling Cassette Air Handler yourself. It doesn't require ductwork or wallspace, is easy to install, and offers a low profile installation. It fits between 16 inch ceiling joists and is designed to work with both current and future joist standards. The cassette can be recessed between all types of joists on 16 inch center including pre-manufactured joists and is perfect for retrofits or new construction. You're able to install the MrCool DIY Ceiling Cassette in a multitude of locations within your space, unlike other ceiling cassettes that have strict installation requirements that dictate installation in less than ideal locations.

The 18k BTU MrCool DIY Ductless Ceiling Cassette Air Handler is compatible with the MrCool DIY Quick Connect line set. This type of line set is unique in that it doesn't require any vacuuming. It comes precharged with refrigerant R-410A, which has proven to be a more environmentally friendly refrigerant option. You also have the option to utilize the convenient No Vac coupler if the line sets require extra length. Included with the ceiling cassette is the useful remote, which gives you ultimate control over the unit.

Not only is it easy to install and is visually appealing, but the ceiling cassette is audibly appealing as well. It features a quiet operation that won't disrupt you or your family's regular activities. Utilize the remote to take advantage of the multiple operating modes the ceiling cassette has to offer. The unit's Elevation function can be activated on the remote which will allow the air filter panel to automatically raise and lower from the its position in the ceiling. This utilization of advanced filtration and swing technology makes maintaining the air filter even easier by providing easy access–no ladder required.

For your own peace of mind, the 18k BTU MrCool DIY Ductless Ceiling Cassette Air Handler is backed by a 7-year compressor warranty and 5-year parts warranty.

Additional Documents

From the Manufacturer

DIY4C Customer Brochure

DIY4C Installation Manual

DIY4C Remote Control Manual

DIY4C Warranty Sheet

Customer Reviews / Q&A

Specifications

System Overview

Model	DIYCASSETTE18HP-230C25
UPC	840255522212
Product Height (in)	8.98
Configuration	Ceiling Cassette
Product Length (in)	50.31
Air Flow Direction	Downflow
Product Width (in)	13.19
Blower Motor	Variable Speed
Cooling Capacity	1.5 Ton
Electrical Phase	1-Phase
Line Set Connection Type	Quick Connect
Liquid Line Size	1/4 inch
Max Overcurrent Protection	15 amps
Weight (lbs)	88.850000
Refrigerant	R-410a
Series	DIY
Suction Line Size	1/2 inch
System Application Type	Ductless Split Systems
Voltage	240
Warranty	5 Year Parts
