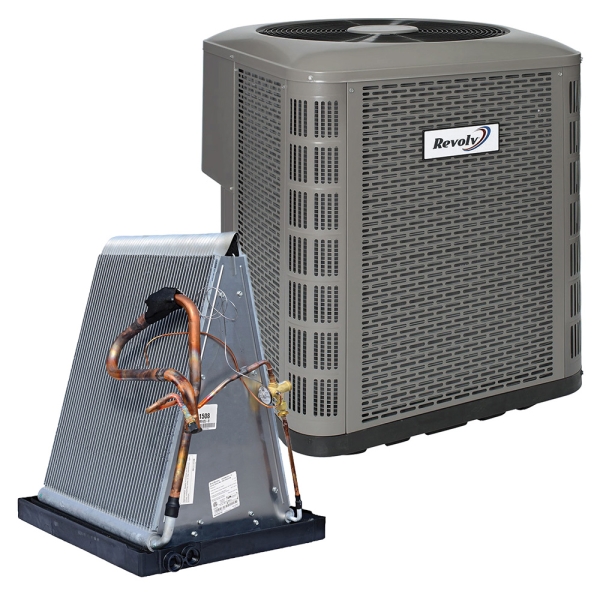

Your manufactured or mobile home shouldn’t suffer from inadequate climate control just because HVAC hardware has unique requirements for modular housing. Bring in the big guns with the 2.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B and see the difference modern technology can make on your comfort. Supported by both ETL listing and AHRI certification, the Revolv AC & Coil System passes rigorous independent evaluations to showcase the legitimacy of every safety and performance claim. Give your 1250 to 1500 square foot home the cooling results you crave with an upgrade to the 2.5 Ton Revolv System.

This Bundle Includes:

2.5 to 3 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26068Model: C85DAMX3036U-B Qty: 1
Accessories
Description / Documents

Your manufactured or mobile home shouldn’t suffer from inadequate climate control just because HVAC hardware has unique requirements for modular housing. Bring in the big guns with the 2.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B and see the difference modern technology can make on your comfort. Supported by both ETL listing and AHRI certification, the Revolv AC & Coil System passes rigorous independent evaluations to showcase the legitimacy of every safety and performance claim. Give your 1250 to 1500 square foot home the cooling results you crave with an upgrade to the 2.5 Ton Revolv System.

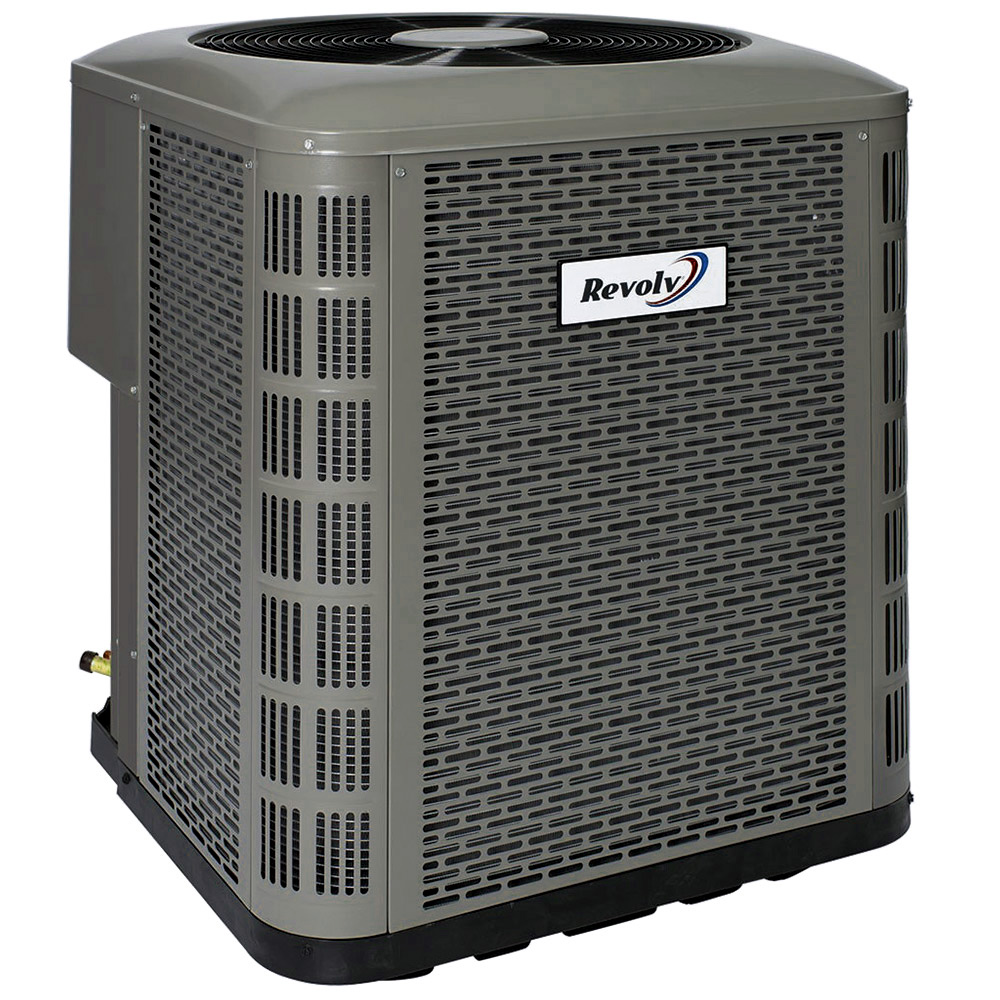

Fighting off the oppressively hot temperatures of summertime, the condenser in the 2.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B offers the crisp, cooling relief you want in toasty weather. A galvanized steel design for the cabinet that’s coated with a powder-paint treatment smooths any sharp corners and earns 950-hour salt-spray approval, protecting the Revolv System from signs of wear like fading, chipping, scratching, and corrosion. The combination of a high-quality scroll compressor, base pan, and permanently lubricated PSC motor effectively stop unnecessary vibrations for quiet performance. The removable top grille assembly and elimination of frequent motor lubrication simplify setup and servicing tasks for the Revolv AC. With an easily accessible compressor and controls that don’t require removing the top grille, the Revolv AC System will give you the cool indoor climate you want in no time.

Pulling heat from your home to ensure chilly temperatures, the evaporator coil in the 2.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B won’t leave you wanting in the throws of summer weather. The use of R454B refrigerant means the Revolv Coil sports zero ozone depletion potential and a lower GWP (global warming potential) than previous refrigerant standards. An integrated TXV metering device grants the Revolv System the ability to maintain proper superheating on the refrigerant, guaranteeing the reliable and safe performance that you need. The leak-free down turn braze connections are the cherry on top that allow the Revolv AC & Coil System to give you the top-tier performance you deserve in your mobile home.

Giving you the results you want in your modular or manufactured housing isn’t an impossible task, so why settle for antiquated HVAC that always falls short? Choose the 2.5 Ton Revolv Mobile Home Air Conditioner & Coil System using R454B refrigerant today and give your family the top-tier temperature regulation they deserve to stay cool this summer and many more.

Customer Reviews / Q&A
Specifications

System Overview

Model HSA4MD5M1SN30K,C85DAMX3036U-B
AHRI Number 216044452
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency (SEER2) 13.4
Region Compatibility North

HSA4MD5M1SN30K Specifications:

Model HSA4MD5M1SN30K
UPC 663132533428
Product Height (in) 33
Avg Coverage Area 1,250 - 1,500 Sq Ft
Product Length (in) 23.75
Compressor Single Stage
Product Width (in) 23.75
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 136.000000
Refrigerant R-454b
Cooling Efficiency (SEER2) 13.4
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility North

C85DAMX3036U-B Specifications:

Model C85DAMX3036U-B
UPC 663132533695
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2.5 Ton, 3 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 40.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
