2.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B
REVOLV

Accessories
Description / Documents

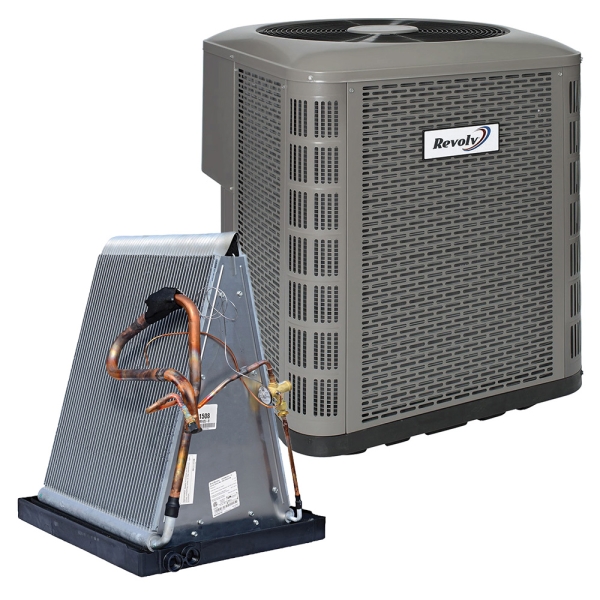

Summer’s heat doesn’t have to spell disaster for your indoor temperatures just because you live in a modular home. Options like the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B produce top-tier temperature regulation while meeting the strict regulations of manufactured housing. Backed by both AHRI certification and ETL listing, the Revolv AC & Coil System passes rigorous third-party inspections to highlight the accuracy of every safety and functional claim. Guarantee the exact climate control results you want in your 1250 to 1500 square foot mobile home with a 2.5 Ton Revolv System.

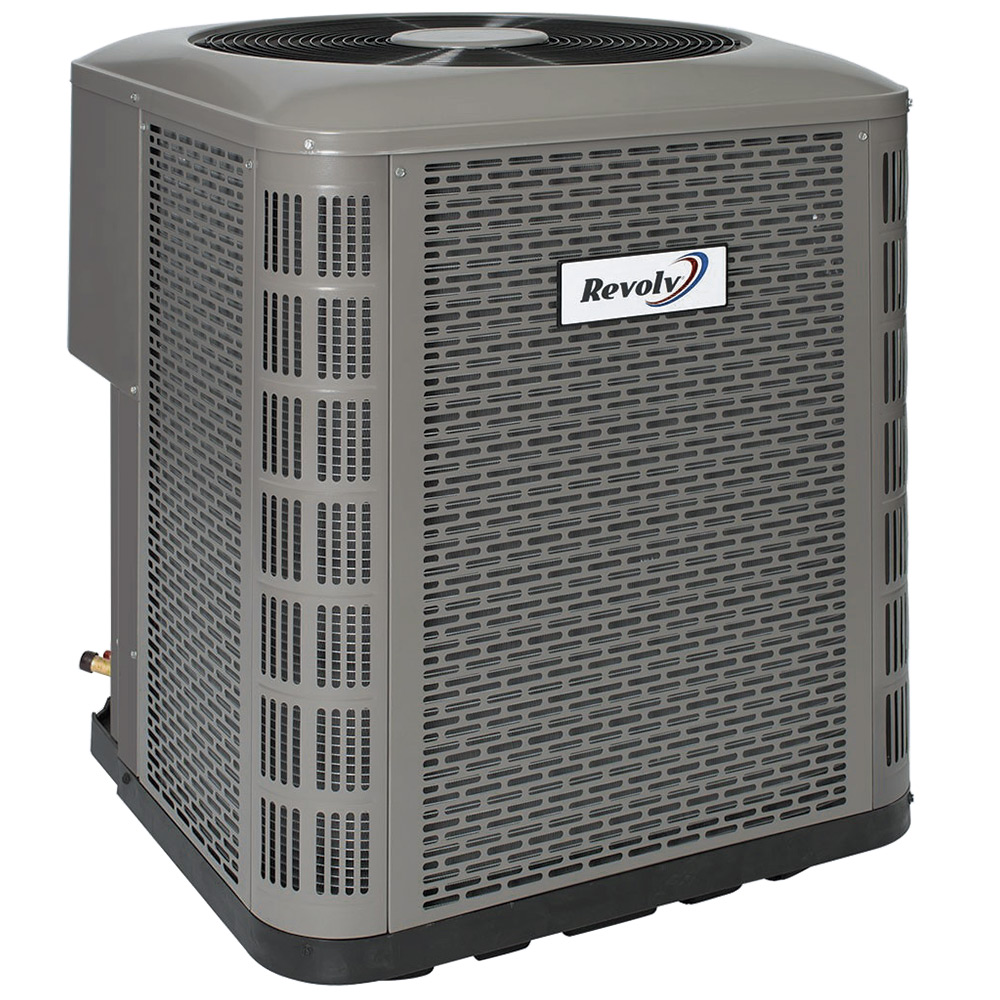

Sporting a carefully considered construction, the condenser in the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B makes it easy to stay comfortable when the outdoor warmth tries to creep inside. The galvanized steel composition of the cabinet is coated with a powder-paint treatment, fighting off corrosion, fading, chipping, and scratching, while removing any sharp edges to pass a 950-hour salt-spray test. A permanently lubricated PSC motor and base pan work together to ensure quiet cycling, eliminating any excessive sounds and vibrations during regular use. Coming pre-charged with refrigerant that supports 20 feet of line set, outfitted with a removable top grille assembly, and equipped with a quality scroll compressor, setup and startup are both highly efficient. Boasting a casing that makes reviewing the compressor and controls effortless, without complicating the removal process for the side panels by allowing the top grille to remain in place, the Revolv AC System has an intelligent composition and layout that guarantees reliable results for your mobile home over the years.
Keeping installation and maintenance tasks simple, the evaporator coil in the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B saves professionals time on these processes to save you money at the same time. By working with R454B refrigerant, the Revolv Coil boasts zero ozone depletion potential and a decreased GWP (global warming potential) compared to older refrigerant standards. By incorporating a TXV metering device, the Revolv System easily maintains the proper state of superheat to ensure unmatched efficiency and reliable performance over time. Boasting leak-free performance thanks to the down turn braze connections, the Revolv AC & Coil System won’t fall short of creating your ideal ambiance in the worst heat summer throws your way.
Enjoying the comfortably cool temperatures you crave in the midst of summer’s heat doesn’t have to be a difficult task for your mobile home HVAC. Decide on the 2.5 Ton Revolv Mobile Home Air Conditioner & Coil System using R454B refrigerant today and enjoy the powerful climate control results you’ve been hoping for.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | HSA4ME5M1SN30K,C85DAMX3036U-B |
|---|---|
| AHRI Number | 216044459 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Region Compatibility | Nationwide |
HSA4ME5M1SN30K Specifications:
| Model | HSA4ME5M1SN30K |
|---|---|
| UPC | 663132529254 |
| Product Height (in) | 29.25 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 31.75 |
| Compressor | Single Stage |
| Product Width (in) | 31.75 |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 131.000000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Mobile Home Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
C85DAMX3036U-B Specifications:
| Model | C85DAMX3036U-B |
|---|---|
| UPC | 663132533695 |
| Product Height (in) | 18 |
| Air Flow Direction | Vertical |
| Product Length (in) | 19.5 |
| Cooling Capacity | 2.5 Ton, 3 Ton |
| Product Width (in) | 18.125 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 40.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| Warranty | 5 Year |
