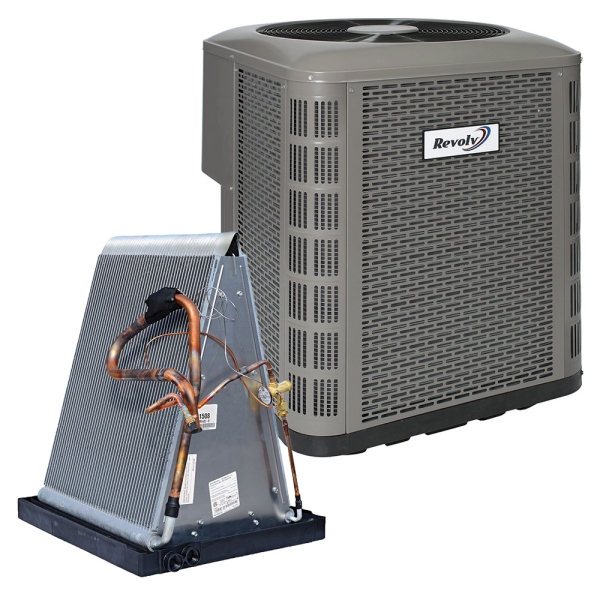

Mobile homes have specific requirements when it comes to HVAC, but one thing that isn’t unique is your need to be comfortable in shifting seasonal temperatures. With the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B, you won’t have to worry about the heat of summer or chill of winter once inside your home. Earning AHRI certification and ETL listing, the Revolv Heat Pump passes thorough independent inspections to verify the accuracy of every safety and functional claim. Let a 2.5 Ton Revolv System take controlling the climate within your 1250 to 1500 square foot manufactured or mobile home to the next level.

This Bundle Includes:

2.5 to 3 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26068Model: C85DAMX3036U-B Qty: 1
Accessories
Description / Documents

Mobile homes have specific requirements when it comes to HVAC, but one thing that isn’t unique is your need to be comfortable in shifting seasonal temperatures. With the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B, you won’t have to worry about the heat of summer or chill of winter once inside your home. Earning AHRI certification and ETL listing, the Revolv Heat Pump passes thorough independent inspections to verify the accuracy of every safety and functional claim. Let a 2.5 Ton Revolv System take controlling the climate within your 1250 to 1500 square foot manufactured or mobile home to the next level.

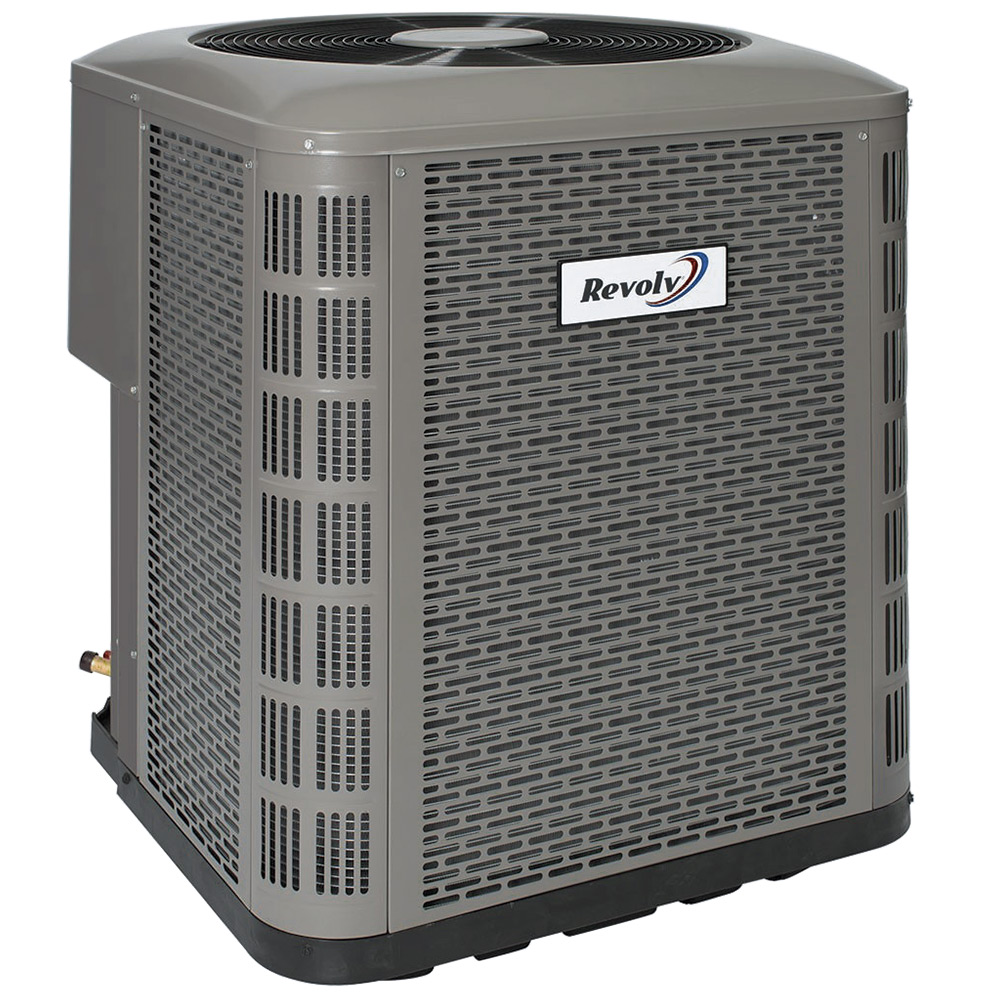

The intelligent, resilient construction of the condenser in the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B gives you the reliable results you crave. A galvanized steel cabinet is treated with a powder-paint coating, helping the Revolv Heat Pump earn a 950-hour salt-spray approval. The patented hot gas bypass defrost system protects the internals during winter weather, removing any ice buildup from the condenser coil before the heating cycle can begin. The composite base pan is crafted from durable material to combat rust and corrosion, working with the all-aluminum condenser coil to ensure longevity. An included hot gas muffler decreases vibrations and noise from the compressor during everyday use. With a crankcase heater and suction accumulator to stop liquid flooding, and a pre-charge of refrigerant to support 20 feet of line set, the Revolv Mobile Home System gives you everything you need and more to stay comfortable in every inch of your home.

Simplifying servicing tasks to ensure efficient results, the evaporator coil in the 2.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B keeps maintenance and setup efforts streamlined for easily sustainable performance. Equipped with eco-conscious R454B refrigerant, the Revolv Coil offers benefits from zero ozone depletion potential and a lowered global warming potential compared to older refrigerant options. Thanks to an integrated TXV metering device, proper superheating is easy to maintain for long-lasting efficiency. Using down turn braze connections, the Revolv Heat Pump & Coil System provides leak-free performance that won’t leave you wanting in any season.

Keeping your home consistently comfortable isn’t a task for the faint of heart, so why leave the job to an antiquated system that’s barely keeping up? Opt for the 2.5 Ton Revolv Mobile Home Heat Pump & Coil System using R454B refrigerant today to enjoy the top-tier results you and your family deserve all year long.

Customer Reviews / Q&A
Specifications

System Overview

Model HSH4ME5M1SP30K,C85DAMX3036U-B
AHRI Number 216046538
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency (SEER2) 14.3
EER2 11
Heat Pump Efficiency (HSPF2) 7.5
Region Compatibility Nationwide

HSH4ME5M1SP30K Specifications:

Model HSH4ME5M1SP30K
UPC 663132533640
Product Height (in) 37
Avg Coverage Area 1,250 - 1,500 Sq Ft
Product Length (in) 31.75
Compressor Single Stage
Product Width (in) 31.75
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 7.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 180.000000
Primary Heating Capacity 25,001 - 30,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 14.3
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility Nationwide

C85DAMX3036U-B Specifications:

Model C85DAMX3036U-B
UPC 663132533695
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2.5 Ton, 3 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 40.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
