In stock

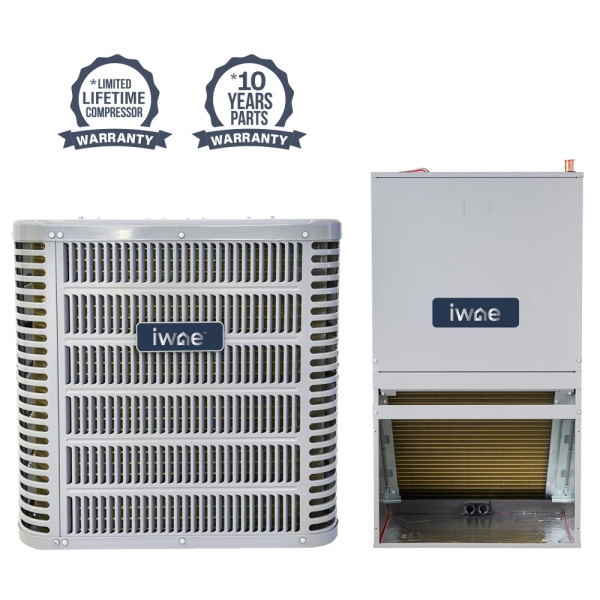

2.5 Ton 14.3 SEER2 Variable Speed IWAE Central Heat Pump Split System - Stud Mounted - R454B
Shop All IWAE

Accessories
Description / Documents
Ensuring you and your loved ones have the tools to stay comfortable in any weather doesn’t have to be a struggle. If your antiquated HVAC system leaves temperatures uncomfortable, an upgrade to the 2.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B can give you the top-tier temperature regulation you’ve been missing. Supported by both AHRI certification and ETL listing, the IWAE Central Heat Pump System passes exhaustive examinations from independent agencies to showcase the integrity of every performance and safety claim. Guarantee the temperatures you want throughout your 1250 to 1500 square foot space with a modern heating and cooling solution like the 2.5 Ton IWAE Split System.

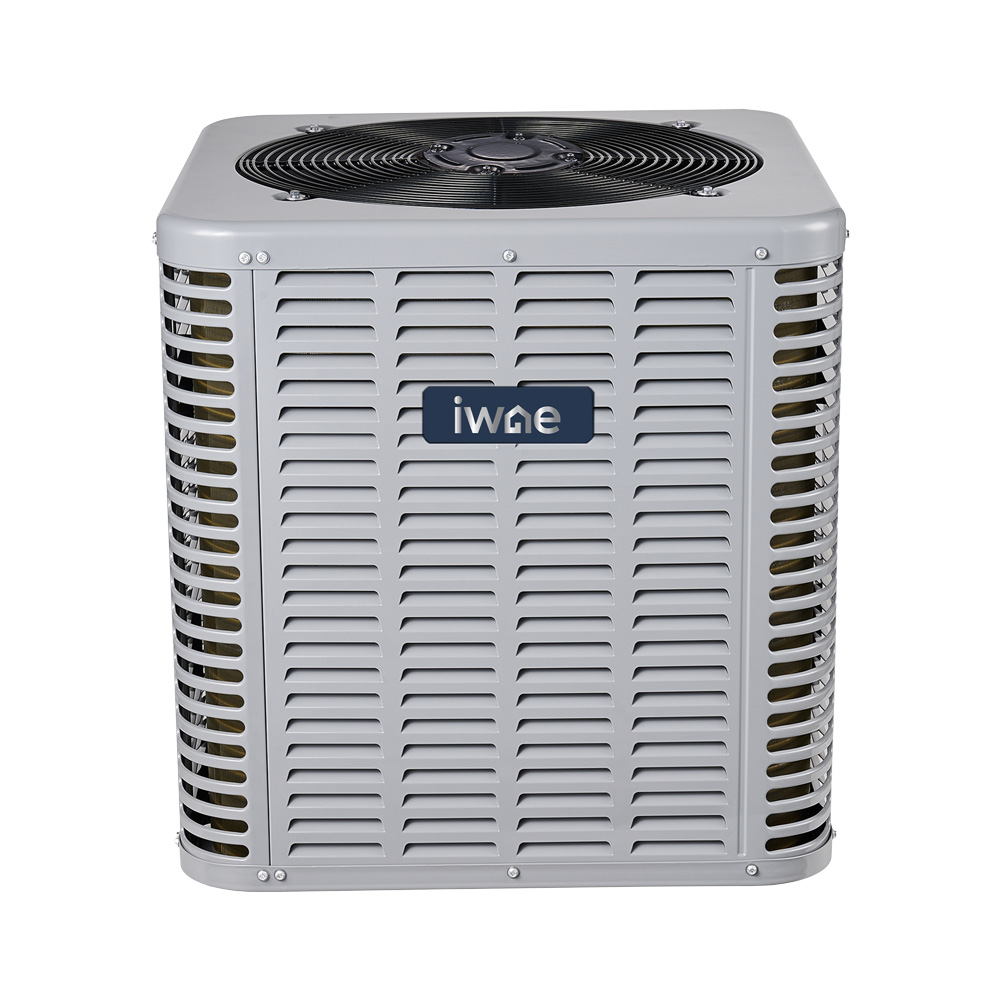

Built to provide consistent performance, the condenser in the 2.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B makes it easy to stay comfortable in your home. The energy-efficiency compressor is designed to effectively cool in ambient temperatures between 54 and 126 degrees Fahrenheit or heat when conditions range from 14 to 90 degrees Fahrenheit, fitting the needs of most climates. Using a sound control blanket to reduce noise levels during use, well-rounded comfort is a guarantee. Between inclusions like the gold fin corrosion protection, baked enamel finish, time-delay defrost technology, a filter drier, and a factory-installed A2L sensor, you can relax knowing the IWAE Heat Pump has everything you need and more to stay comfortable all year long.

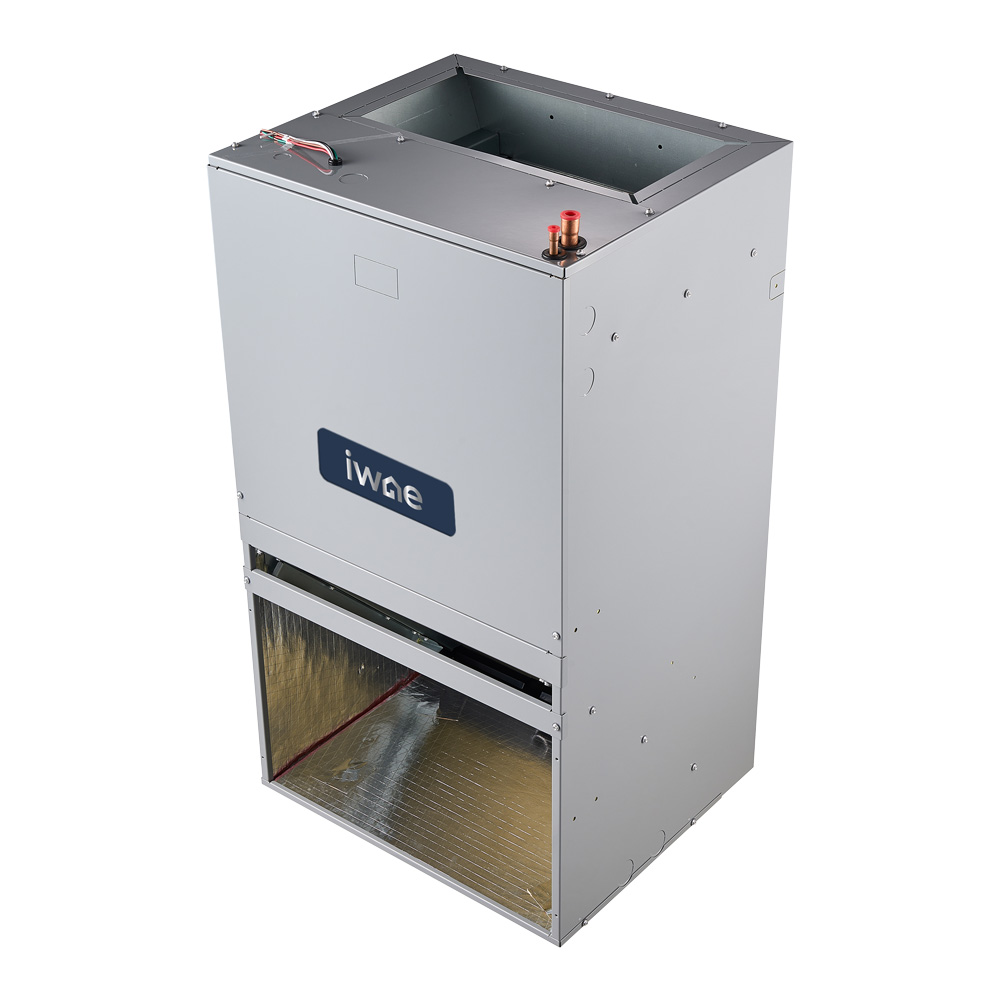

Supplying the powerful airflow you need indoors, the air handler in the 2.5 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B combines versatile setup with reliable results. Using a variable-speed ECM indoor blower motor and factory-installed A2L sensor allows the IWAE Air Handler to operate as efficiently as possible over the years. Equipped with a factory-standard front return that can be converted to a bottom return by removing the base pan panel on the front of the cabinet, the IWAE Stud Mounted Air Handler meets your needs exactly where they are. Topping off performance by coating the inside of the cabinet with foil-faced insulation to reduce moisture buildup and heat loss, the IWAE Split System won’t fall short of creating your ideal indoor ambiance.
Giving you the results you’ve always wanted, then adding on the support of a warranty that covers 10 years on parts and a limited lifetime on the compressor, it’s easy to see what the best path forward is for your comfort. Snag a 2.5 Ton IWAE Central Heat Pump Split System with Stud Mounted Air Handler making use of R454B refrigerant today to ensure the exact indoor temperatures you want, regardless of the season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | IWAESHS4T3021AA,IWAEAWPEF30E21AA |
|---|---|
| AHRI Number | 217513207 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Region Compatibility | Nationwide |
IWAESHS4T3021AA Specifications:
| Model | IWAESHS4T3021AA |
|---|---|
| UPC | 840433703969 |
| AHRI Number | 217513206 |
| Product Height (in) | 25 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 23.6 |
| Compressor | Single Stage |
| Product Width (in) | 23.6 |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 146.000000 |
| Primary Heating Capacity | 25,001 - 30,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
| Region Compatibility | Nationwide |
IWAEAWPEF30E21AA Specifications:
| Model | IWAEAWPEF30E21AA |
|---|---|
| UPC | 840433704102 |
| Product Height (in) | 39.5 |
| Configuration | Wall Mounted |
| Product Length (in) | 19 |
| Air Flow Direction | Downflow, Horizontal, Upflow, Vertical |
| Product Width (in) | 22.1 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 6 amps |
| Weight (lbs) | 110.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
