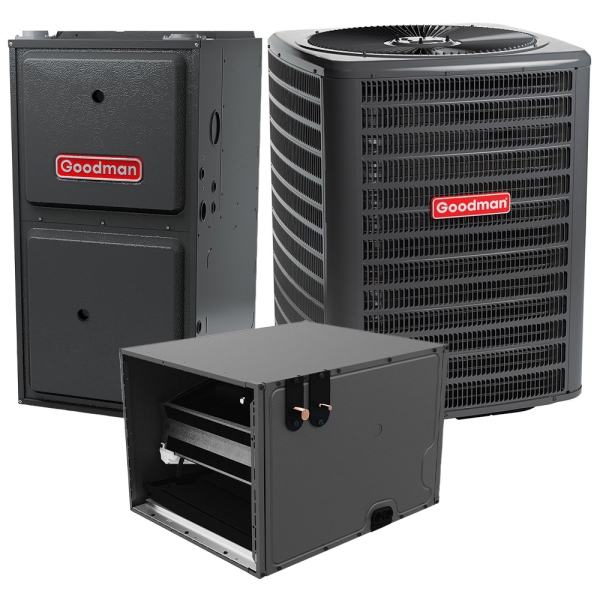

2.5 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN

Description / Documents
Enduring a heating and cooling system that fails to maintain a consistent indoor climate should not be the standard you choose to live with. Even with so many HVAC systems available on the market today, you don't need to look any further than the 2.5 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 for a superior solution to enhance your home's comfort. Covered by AHRI certification and ETL listing, this Goodman Split System has successfully undergone thorough third-party testing to verify the accuracy of all functional claims. Ditch your outdated system and inefficient refrigerant for this 2.5 Ton Goodman Split System with R32 refrigerant, and experience the unparalleled comfort in your 1250 to 1500 square foot home that you crave.
Built to boost your home's comfort levels, the Air Conditioner in the 2.5 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 comes with an array of impressive features that will greatly enhance your indoor environment. The robust galvanized steel cabinet is coated with a gray powder-paint finish to shield the system from harsh elements, proven by its successful performance in a passing performance against a 500-hour salt-spray test. With a focus on ease of maintenance, this Goodman AC features a single-panel design and conveniently accessible gauge ports, allowing licensed professionals easy entry to the internal components for efficient servicing. Equipped with a factory-installed filter drier and extra space for additional field-installed accessories, this Goodman Air Conditioner is designed to deliver consistent and energy-efficient cooling.
Taking your home's heating capabilities to even greater heights, the Gas Furnace in the 2.5 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 is built to provide top-tier climate control. Housed in a durable heavy-gauge steel cabinet with a long-lasting baked-enamel treatment, this Goodman Furnace protects the internal components from moisture, dust, and other harmful contaminants. Utilizing advanced technology, including dual heat exchangers, a multi-speed ECM blower motor, and a two-stage gas valve, this Goodman Furnace provides quiet and effective airflow in every room. With flexible connections for both gas and electric hook-ups on either side of the unit and the ability to function efficiently in upflow and left or right horizontal applications, this Goodman Gas Furnace provides straightforward installation and integration into your home's design.
With all these high-performance features combined with an all-aluminum, rust and UV-resistant Evaporator Coil, this system is designed to provide reliable results. Why wait any longer to pull the trigger on this upgrade? Obtain this 2.5 Ton Goodman AC & Gas Furnace Split System with R32 refrigerant today and turn your home into the peaceful sanctuary you've always dreamed of.
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS4BA3010,GR9T960804CN,CHPTA3026C3 |
|---|---|
| UPC | 663051691643 |
| AHRI Number | 215214849 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.5 |
| EER2 | 12 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| Region Compatibility | Nationwide |
GLXS4BA3010 Specifications:
| Model | GLXS4BA3010 |
|---|---|
| UPC | 663051691643 |
| Product Height (in) | 32 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 29 |
| Compressor | Single Stage |
| Product Width (in) | 29 |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 129.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 14.5 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
GR9T960804CN Specifications:
| Model | GR9T960804CN |
|---|---|
| AHRI Number | 215225028 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 123.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |

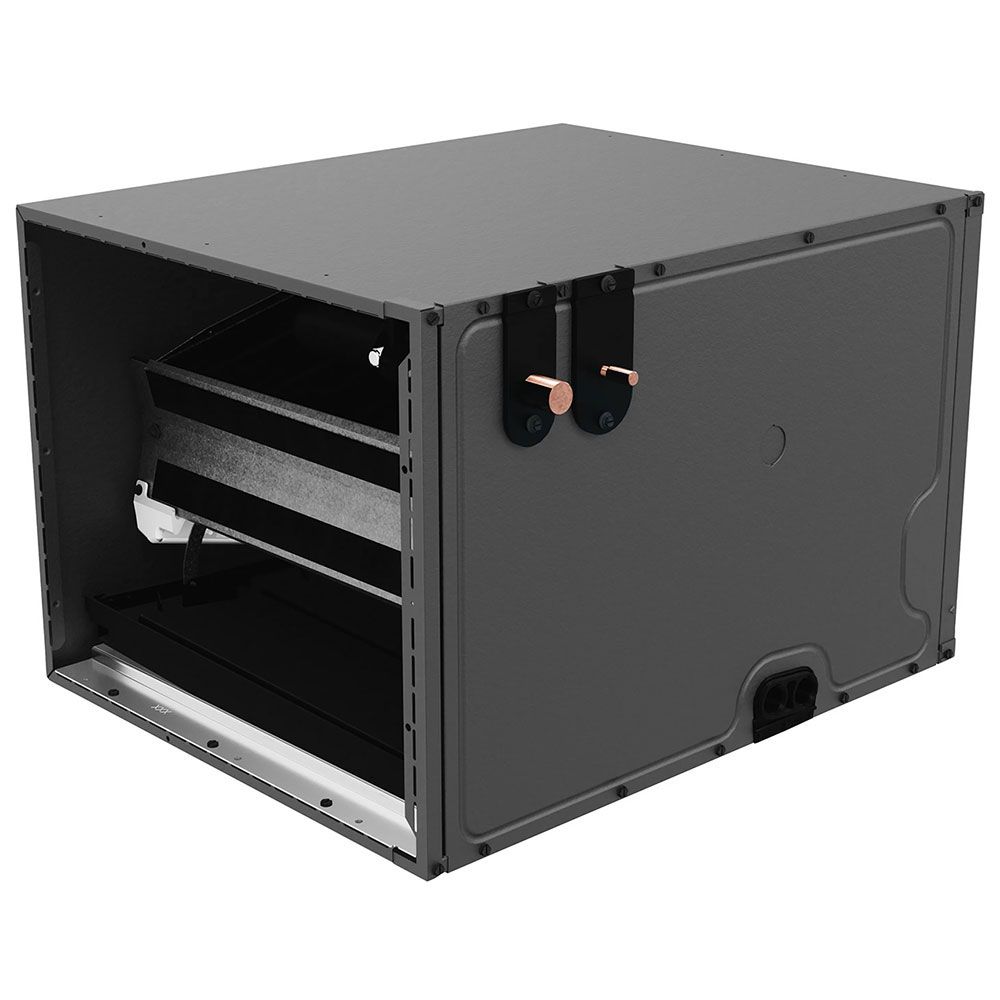

CHPTA3026C3 Specifications:
| Model | CHPTA3026C3 |
|---|---|
| UPC | 663051688513 |
| Product Height (in) | 21 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 2.5 Ton |
| Product Width (in) | 26 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 62.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
