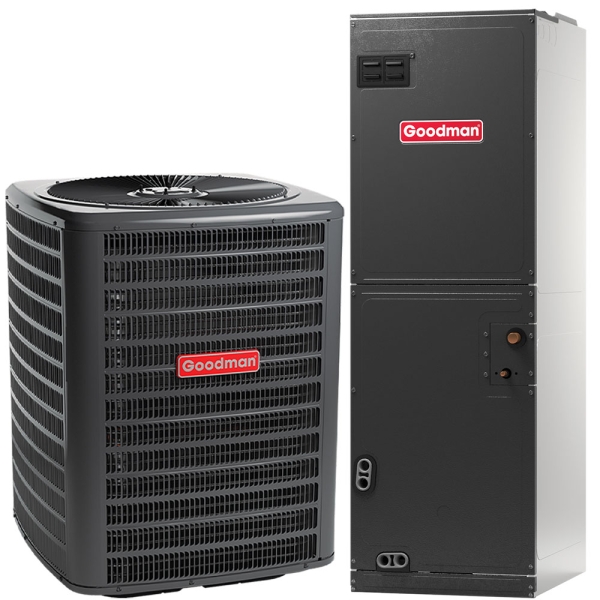

2.5 Ton 14 SEER Multi Speed Goodman Central Heat Pump Split System - Multiposition

Item: HA11656
Models: GSZ140301, ARUF31B14
Condition: New

2.5 Ton 14 SEER Multi Speed Goodman Central Heat Pump Split System - Multiposition Zoom

Photo Gallery

Related Videos

Move up to this 2.5 ton Goodman Heat Pump Central Split System with 14 SEER performance and multi-position installation options. The 2.5 ton Goodman GSZ140301 heat pump is built with SmartShift technology to ensure quiet, reliable defrost. Environmentally-friendly R-410A refrigerant ensures the 14 SEER efficiency is eco-conscious. So does the high efficiency scroll compressor. The air handler in this system is Goodman's impeccable ARUF31B14 with 2 to 5 ton capacity, transformer and blower time-delay, and factory-sealed cabinet for less than 2% leakage.

Availability: In stock

As low as: $2,498.00

Price as configured: $2,498.00

Ingram Financing

2.5 Ton 14 SEER Goodman Central Heat Pump Condenser 2.5 Ton 14 SEER Goodman Central Heat Pump Condenser Item: HA10889 Model: GSZ140301 Qty: 1

* Required Fields

Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

2.5 Ton 14 SEER Goodman Central Heat Pump Condenser 2.5 Ton 14 SEER Goodman Central Heat Pump Condenser Item: HA10889 Model: GSZ140301 Qty: 1

Overview

Move up to this 2.5 ton Goodman Heat Pump Central Split System with 14 SEER performance and multi-position installation options. The 2.5 ton Goodman GSZ140301 heat pump is built with SmartShift technology to ensure quiet, reliable defrost. Environmentally-friendly R-410A refrigerant ensures the 14 SEER efficiency is eco-conscious. So does the high efficiency scroll compressor. The air handler in this system is Goodman's impeccable ARUF31B14 with 2 to 5 ton capacity, transformer and blower time-delay, and factory-sealed cabinet for less than 2% leakage.

Goodman 2.5 Ton 14 SEER Central Heat Pump Condenser - GSZ140301

Goodman HA10889

Manufacturer Highlights

The Goodman® brand GSZ Series Heat Pump offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • High-efficiency scroll compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Fully charged for 15' of tubing length
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Goodman® brand sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Service ports and controls are accessible while unit is operating
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Goodman 2.5 Ton Multi Speed Air Handler - ARUF31B14

Goodman HA10306

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GSZ140301,ARUF31B14
UPC 663051528192
AHRI Number 201642081
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 14 SEER
EER 12
Heat Pump Efficiency (HSPF) 8.2
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

GSZ140301 Specifications:

Model GSZ140301
UPC 663051528192
Avg Coverage Area 1,250 - 1,500 Sq Ft
Compressor Single Stage
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 36.25
Product Length (in) 29
Product Width (in) 29
Cooling Efficiency 14 SEER
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 182.0000
Region Compatibility Nationwide

ARUF31B14 Specifications:

Model ARUF31B14
UPC 663051512474
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 53.438
Product Length (in) 21
Product Width (in) 17.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 110.0000
