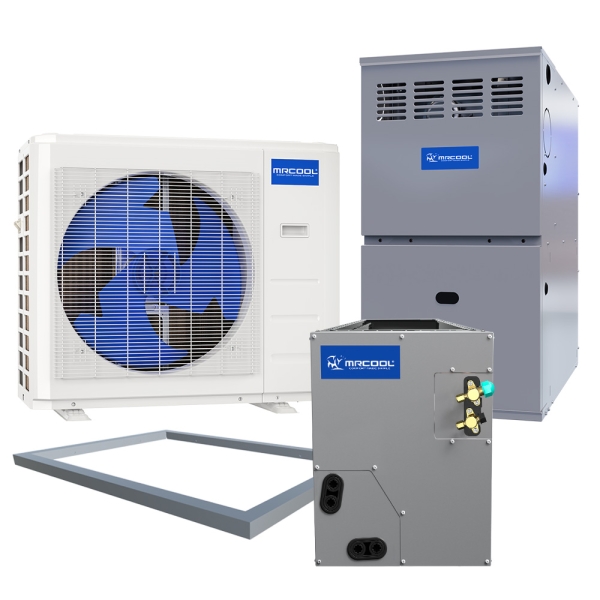

Some regions have harsh winters and equally tough summers, so options like the 2.5 Ton 15.6 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B are built to handle these wide temperature ranges. Between UL, CSA, and ETL listing and both AHRI and Energy Star certifications, the multiple components of the MrCool Split System prove their merits individually for top-tier peace of mind. Make the most of your 1250 to 1500 square foot home with a 2.5 Ton MrCool Split System.
Accessories
Description / Documents

Some regions have harsh winters and equally tough summers, so options like the 2.5 Ton 15.6 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B are built to handle these wide temperature ranges. Between UL, CSA, and ETL listing and both AHRI and Energy Star certifications, the multiple components of the MrCool Split System prove their merits individually for top-tier peace of mind. Make the most of your 1250 to 1500 square foot home with a 2.5 Ton MrCool Split System.

Providing reliable performance, the condenser in the 2.5 Ton 15.6 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B handles the fluctuating demands of your climate with ease. Gold Fin corrosion protection allows for reliable results in coastal areas and industrial regions. Maintenance efforts are streamlined with inclusions like the slide-out blower, modular build, self-diagnostics, and filter rack with removable cover. Boasting variable speed functionality and flexible setup options, the MrCool Condenser caters to the unique needs of your living space with ease.

Ensuring comprehensive heating performance in cold weather, the furnace in the 2.5 Ton 15.6 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B keeps your family toasty all winter long. Coming with an LP kit, and equipped for multi-position installation, almost any home layout can reap the benefits of the MrCool VersaPro furnace. Thanks to a durable cabinet that shields in the inner workings, the two-stage MrCool Split System can support your cold-weather needs for years to come.

Already charged full of R454B refrigerant, the evaporator coil in the 2.5 Ton 15.6 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B supports the long-term functionality of the system as a whole. Versatile installation options work effectively in upflow, downflow, and left or right horizontal orientations. A compact design with CoolGuard corrosion resistance is built to use the flange adapter as a means to attach onto the furnace, providing an air-tight seal for top-tier performance. Using a pre-installed TXV to switch the refrigerant flow as necessary to support heating and cooling, the MrCool Split System won’t fall short of your wildest climate control needs.

The perks don’t end at performance! The MrCool condenser, furnace, and evaporator coil all have the support of a 10 year warranty that covers parts, the condenser and furnace both adding additional layers of protection in the form of the Hyper Heat condenser including 10 years on the compressor and labor, while the VersaPro furnace boasts a lifetime warranty on the exchanger. What more could you ask for from an HVAC system upgrade? Bring in the big guns with the 2.5 Ton 80k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System making use of R454B refrigerant today.

Customer Reviews / Q&A
Specifications

System Overview

Model CEN30P36M96080B
UPC 840255599689
AHRI Number 217666233
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency (SEER2) 15.6
Heat Pump Efficiency (HSPF2) 8.8
Region Compatibility Nationwide

CENTRAL-30-HP-C-230B00-O Specifications:

Model CENTRAL-30-HP-C-230B00-O
UPC 840255586511
AHRI Number 216032531
Product Height (in) 31.89
Product Length (in) 37.24
Compressor Inverter
Product Width (in) 16.14
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 10
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 174.600000
Primary Heating Capacity 25,001 - 30,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 16.8
Series Central Ducted
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, 10 Year Labor
Region Compatibility Nationwide

MGM96EE080B3NB Specifications:

Model MGM96EE080B3NB
UPC 840255582643
Product Height (in) 33.75
Gas Furnace Efficiency 96+%
Product Length (in) 24.813
Configuration Floor Mounted
Product Width (in) 17.5
Air Flow Direction Horizontal, Vertical
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 153.000000
Primary Heating Capacity 65,001 - 70,000 BTU
Series VersaPro
System Application Type Central Split Systems
Vent Connection 2 inches, 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger

MCMP3036BOTB Specifications:

Model MCMP3036BOTB
UPC 840255582803
Product Height (in) 23.5
Air Flow Direction Downflow, Horizontal, Upflow
Product Length (in) 21
Cooling Capacity 3 Ton
Product Width (in) 17.5
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 59.500000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 10 Year, 10 Year Parts

MCMP1836B-F Specifications:

Model MCMP1836B-F
UPC 840255582797
Product Height (in) 17.5
Product Length (in) 21
Product Width (in) 0.9
Weight (lbs) 1.400000
