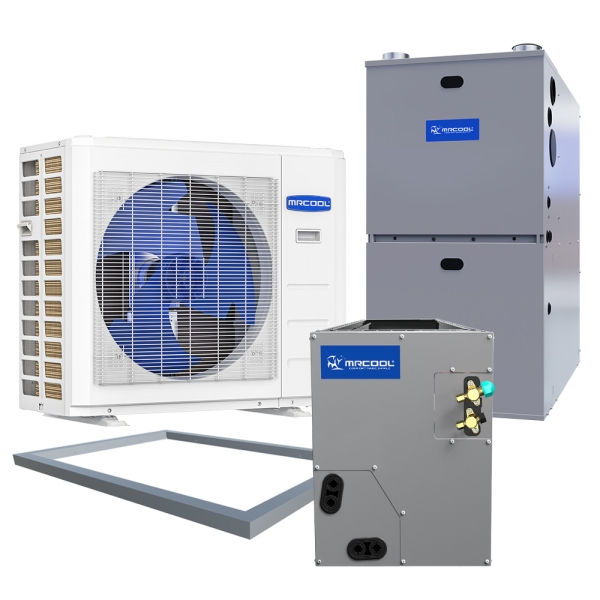

2.5 Ton 17 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
MRCOOL

Accessories
Description / Documents
Have you grown tired of subpar heating and cooling results from an antiquated HVAC system? Make a change for the better with an upgrade to the 2.5 Ton 17 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B. Supported by AHRI certification, on top of CSA, UL, and ETL listings, the MrCool System proves its impressive performance on each individual piece of hardware included. For your 1250 to 1500 square foot home, stay cozy in winter and cool all summer with a 2.5 Ton MrCool Split System.

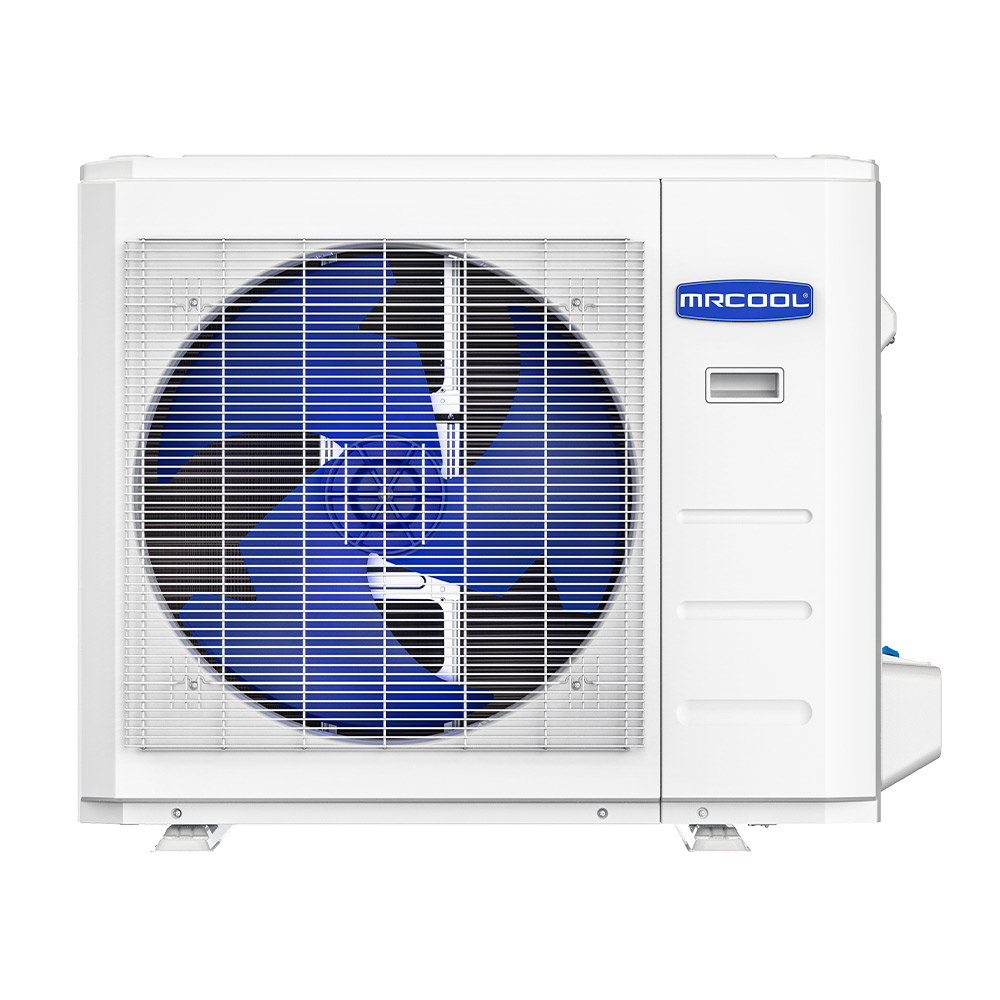

Designed to support your home through every season, the condenser in the 2.5 Ton 17 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B promises catered results that won’t fall short of your preferences. Gold Fin corrosion protection keeps the internals safe in harsh environments, such as those along the coast or near industrial equipment. A modular construction with inclusions like self-diagnostics, a filter rack with removable cover, and a slide-out blower make servicing tasks a breeze for trained technicians. Ensuring quiet operation in any of the versatile installation positions, the MrCool Split System goes above and beyond to maximize your comfort from every angle.

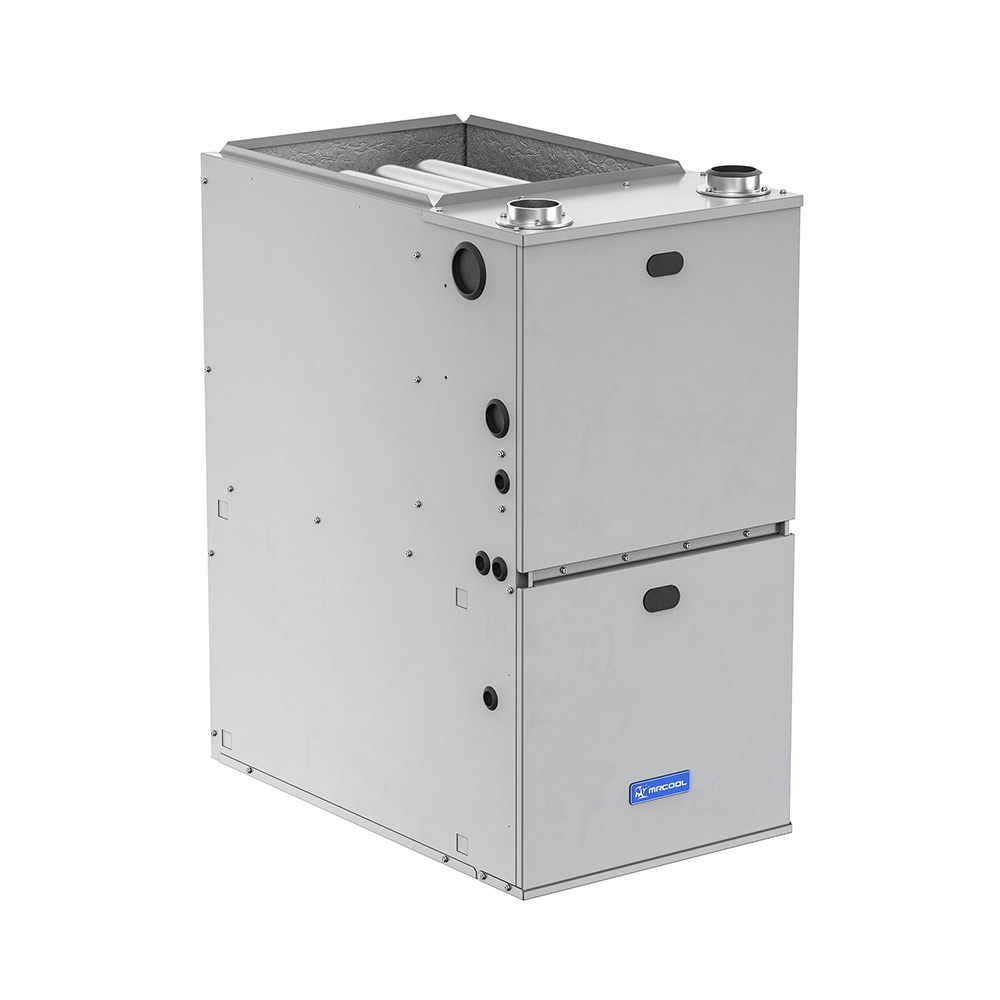

Locking out winter weather with ease, the furnace in the 2.5 Ton 17 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B provides powerful heating results that won’t fall short of your needs. Able to accommodate setup in multiple positions, and including an LP kit, the unique needs of your home won’t be too difficult to account for. Thanks to the resilient cabinet that optimizes efficiency, the two-stage MrCool Split System crafts the cozy climate you crave in plummeting outdoor temperatures.

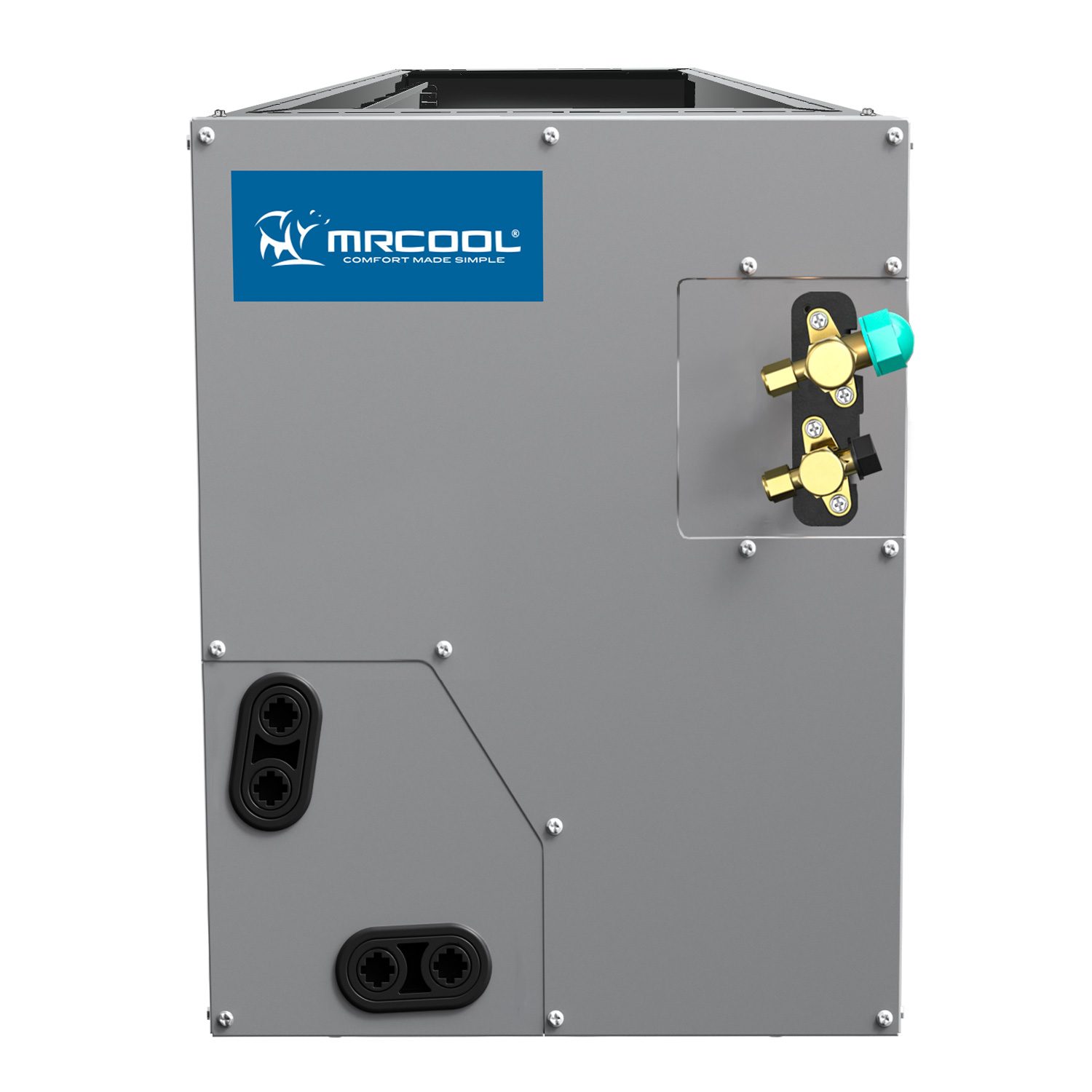

Full to the brim of R454B refrigerant, the evaporator coil in the 2.5 Ton 17 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B supports heating and cooling performance for year-round comfort. Crafted to work well in upflow, downflow, and left and right horizontal orientations, the MrCool coil with CoolGuard corrosion resistance has the longevity you want in HVAC hardware. With the flange adapter fastening the coil to the furnace, and a TXV that flips the refrigerant flow, the MrCool Split System makes it easy to maintain your ideal ambiance in every season.
The MrCool Split System is easy to picture in your home from performance alone, but that’s not the only benefit you can take advantage of. A 10-year warranty covers the parts in all three main components: the condenser, furnace, and evaporator coil. Even more coverage is included with the purchase, the condenser adding 10 years on the compressor and the furnace encompassing a lifetime on the heat exchanger. What more could you be holding out for? Choose the 2.5 Ton 60k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System making use of R454B refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MVP30P36M96060B |
|---|---|
| UPC | 840255599375 |
| AHRI Number | 217666246 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 17 |
| Heat Pump Efficiency (HSPF2) | 8.5 |
| Region Compatibility | Nationwide |
MVP-30-HP-C-230A00-O Specifications:
| Model | MVP-30-HP-C-230A00-O |
|---|---|
| UPC | 840255582704 |
| AHRI Number | 216032537 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 37.24 |
| Compressor | Inverter |
| Product Width (in) | 16.14 |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.5 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 142.000000 |
| Primary Heating Capacity | 30,001 - 35,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 17 |
| Series | VersaPro |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
MGM96EE060B3NB Specifications:
| Model | MGM96EE060B3NB |
|---|---|
| UPC | 840255582636 |
| Product Height (in) | 33.75 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 24.813 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Vertical |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 147.500000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | VersaPro |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCMP1836B-F Specifications:
| Model | MCMP1836B-F |
|---|---|
| UPC | 840255582797 |
| Product Height (in) | 17.5 |
| Product Length (in) | 21 |
| Product Width (in) | 0.9 |
| Weight (lbs) | 1.400000 |
