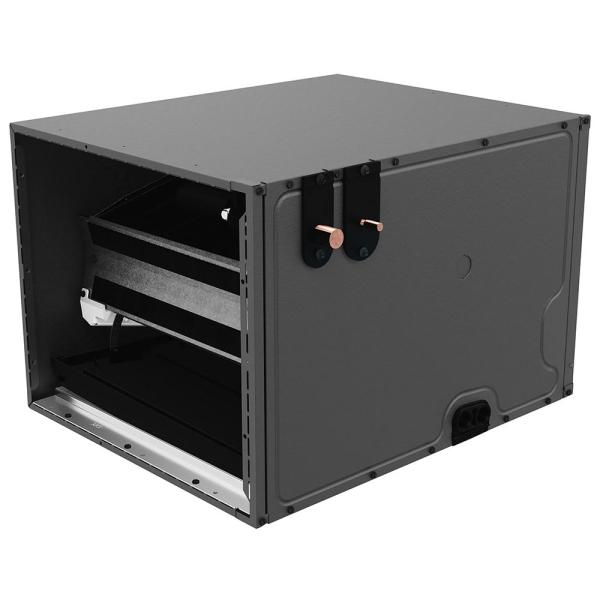

2.5 Ton Goodman Evaporator Coil - Horizontal - TXV - 21" Cabinet
Shop All GOODMAN

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Aren't you tired of feeling uncomfortable in your own home? Send the heat packing with the 2.5 Ton Goodman Evaporator Coil - Horizontal - 21 inch Cabinet. With corrosion-resistant aluminum and showcasing an appealing galvanized, leather grain-embossed finish, this Goodman Evaporator Coil effortlessly cools spaces ranging from 1250 to 1500 square feet while maintaining top-notch quality. The drain pan of this Goodman Cabinet is thoughtfully designed to hold up over time, incorporating UV resistance, rust resistance, and DecaBDE-free thermoplastic material complete with secondary drain connections. Engineered to utilize R-410A, this 2.5 Ton Goodman harnesses exceptional cooling capacity, improved heat transfer efficiency, and enhanced system performance. With foil-faced insulation enveloping the internal casing to minimize condensation, the 21 inch Goodman Cabinet is truly built to last.
Tailored to perfectly suit your home, the 2.5 Ton Goodman Evaporator Coil - Horizontal - 21 inch Cabinet is intentionally produced to effortlessly sync with your existing system. With a single access panel for effortless maintenance and a 21 inches depth that provides convenient attic access, accessing the interior of the 21 inch Cabinet has never been easier. Equipped with a check flowrator and factory-installed thermal expansion valves, this Goodman Evaporator Coil effortlessly connects to both cooling and heat pump applications. To enhance versatility even further, you have the option to install a high-temperature drain pan with the appropriate kit to protect against extreme temperatures exceeding 300 degrees Fahrenheit. With AHRI certification and ETL listing, the decision is crystal clear. It's time to upgrade to the 2.5 Ton Goodman Evaporator Coil and relax in the well-deserved comfort you've been longing for.
Customer Reviews / Q&A
Specifications
System Overview
| Model | CHPTA3026C4 |
|---|---|
| UPC | 663051629592 |
| Product Height (in) | 30 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 2.5 Ton |
| Product Width (in) | 21 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 64.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
