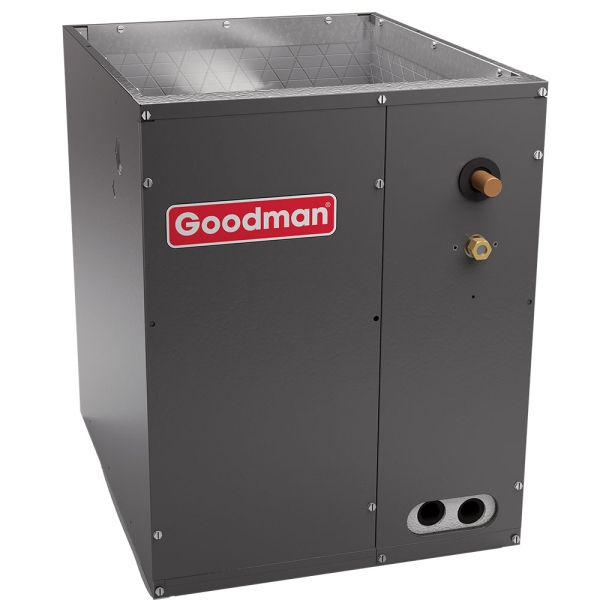

2.5 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet

Item: HA10462
Model: CAPF3030B6
Condition: New

2.5 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet Zoom

Photo Gallery

Do you need an air conditioner or heat pump coil to fit a 2.5 ton system in a 17.5"

Availability: In stock

$290.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Do you need an air conditioner or heat pump coil to fit a 2.5 ton system in a 17.5"
Goodman HA10462

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • Rifled copper tubing and wave pattern aluminum fin coils
  • Cased Coil Cabinet Features
  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access
  • Accessories
  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model CAPF3030B6
UPC 663051450127
Air Flow Direction Vertical
Cooling Capacity 2.5 Ton
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height 22
Product Length 21
Product Width 17.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight 43.0000

Reviews

Customer Reviews

Q & A

Q&A: Ask Questions, Get Answers

Do you have questions about this product?

Do you have a 2.5 ton evaporator that is pre-charged?
