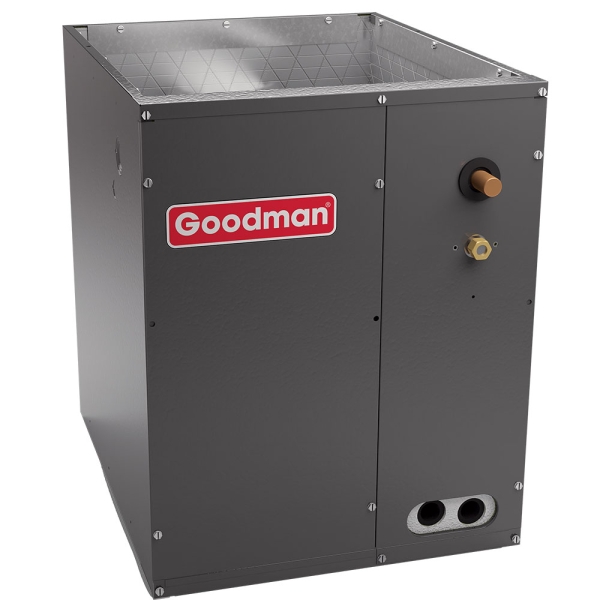

2.5 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet

Item: HA10465
Model: CAPF3131B6
Condition: New
Need a great coil for a split system air conditioner or air-source heat pump? Try the Goodman CAPF31 2.5 Ton Up/Down Cased Coil with 17.5 inch Cabinet. This coil features a superb aluminum coil with grooved tubes and corrugated fins to maximize operating efficiency. It is, like virtually all legendary Goodman products, both AHRI certified and ETL listed.

Availability: Out of stock

$426.00

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Need a great coil for a split system air conditioner or air-source heat pump? Try the Goodman CAPF31 2.5 Ton Up/Down Cased Coil with 17.5 inch Cabinet. This coil features a superb aluminum coil with grooved tubes and corrugated fins to maximize operating efficiency. It is, like virtually all legendary Goodman products, both AHRI certified and ETL listed.
Goodman HA10465

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CAPF3131B6
UPC 663051440296
Air Flow Direction Vertical
Cooling Capacity 2.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 22
Product Length (in) 21
Product Width (in) 17.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 46.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I bought a Goodman MSS9 Gas furnace last fall and now want to add on an air conditioner. What coil unit fits on this furnace? The opening on top is 19.5" square, but they're only listed as 14", 17.5" and 21"? Thanks
I need to replace this Goodman evaporator coil, please point me to correct replacement:

Goodman Evaporator Model # CAPF1824B6CA
Serial 1004077190

Thanks, Andrew Backus
