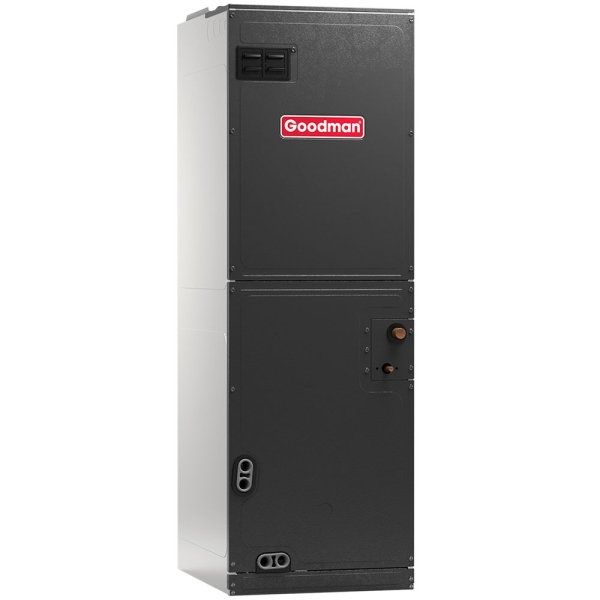

2.5 Ton Multi Speed Goodman Air Handler - Multiposition - 21" Cabinet

Item: HA10322
Model: ASPT30C14
Condition: New

2.5 Ton Multi Speed Goodman Air Handler - Multiposition - 21" Cabinet Zoom

Photo Gallery

The ideal mate for a Goodman brand air conditioner condenser is a properly matched Goodman ASPT30 series Smart Frame Air Handler. ASPT series units are multi-position, multi-speed, and factory-sealed to achieve less than a 2% leakage rate. They feature an all-aluminum evaporator coil, transformer and blower time-delay, multiple electrical knockouts, factory-installed TXV valve, and a high quality direct-drive motor for effective air volume variation in both heating and cooling applications.

Availability: In stock

$816.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

The ideal mate for a Goodman brand air conditioner condenser is a properly matched Goodman ASPT30 series Smart Frame Air Handler. ASPT series units are multi-position, multi-speed, and factory-sealed to achieve less than a 2% leakage rate. They feature an all-aluminum evaporator coil, transformer and blower time-delay, multiple electrical knockouts, factory-installed TXV valve, and a high quality direct-drive motor for effective air volume variation in both heating and cooling applications.
Goodman HA10322

Manufacturer Highlights

The Goodman® brand ASPT Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, multi-speed ECM blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW - 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • Rigid SmartFrame™ cabinet
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model ASPT30C14
UPC 663051518940
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 49
Product Length 21
Product Width 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 118.0000
