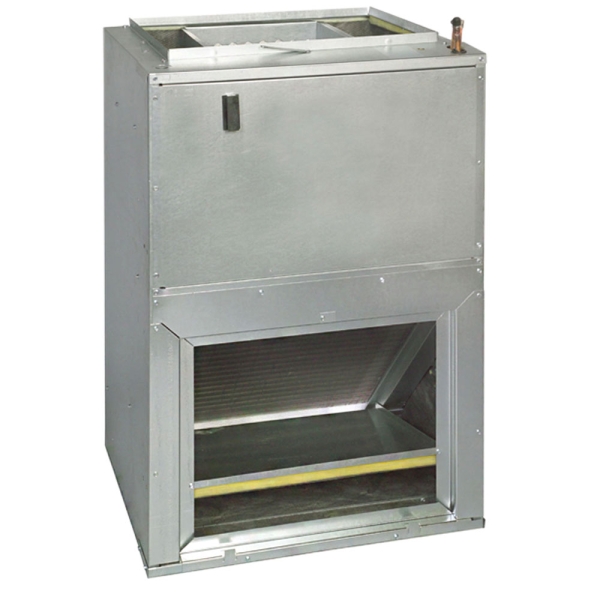

2.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 10kW Heat Kit
Shop All GOODMAN
Item:
HA10448
Model:
AWUF301016
Condition:
New

This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Why would you want a Goodman AWUF Series Wall-Mounted Air Handler? Maybe you need effective air comfort in a location with tight space requirements or you need an air handling unit that will work with an energy efficient heat pump. An AWUF Series machine can do both and more. Designed for versatile installation, it features great components like aluminum coils, a 10-Year Parts Limited Warranty, AHRI certification, and ETL listing.
Accessories
Description / Documents
Why would you want a Goodman AWUF Series Wall-Mounted Air Handler? Maybe you need effective air comfort in a location with tight space requirements or you need an air handling unit that will work with an energy efficient heat pump. An AWUF Series machine can do both and more. Designed for versatile installation, it features great components like aluminum coils, a 10-Year Parts Limited Warranty, AHRI certification, and ETL listing.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | AWUF301016 |
|---|---|
| UPC | 663051525443 |
| Product Height (in) | 36 |
| Configuration | Wall Mounted |
| Product Length (in) | 24 |
| Air Flow Direction | Upflow |
| Product Width (in) | 21 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 60 amps |
| Weight (lbs) | 109.000000 |
| Primary Heating Capacity | 30,001 - 35,000 BTU |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
