Goodman

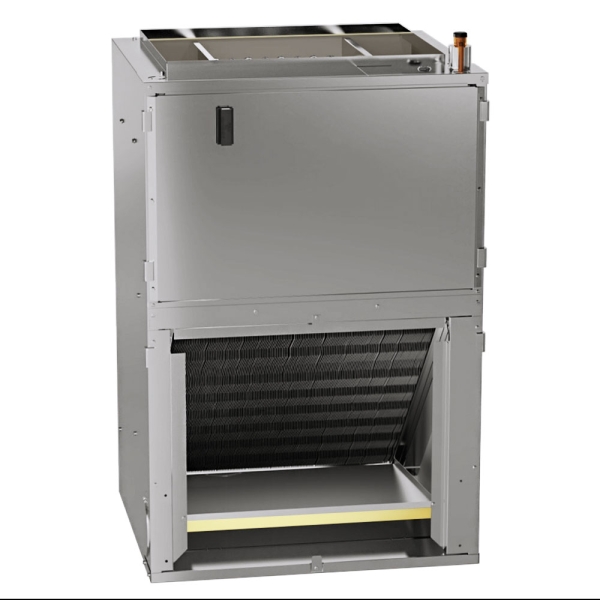

2.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit
GOODMAN
This product has been discontinued.
Recommended Alternative:

Accessories
Description / Documents
The moment has arrived to elevate your quality of life, and the ideal jumping off point is with your HVAC system. Bid farewell to the unpredictable heating and cooling arrangements of yesteryears and transition to the 2.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit. These 2.5 Ton Goodman units make use of a large chassis design, offering a front return option to manage the climate in your 1250 to 1500 square foot area. Delivered complete with a wall-hanging bracket and an integrated filter rack that includes the filter, this Goodman Air Handler equips you with all the necessary instruments to bring comfort and tranquility back into your home.
The 2.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit is packed to the brim with features that are thoughtfully chosen to drastically improve your climate control experience. Outfitted with a fully adjustable TXV, you gain full control over refrigerant flow, guaranteeing a straightforward means to adapt to your home's unique layout. Expanding upon this adaptability is a thermoplastic drain pan with both a primary bottom and secondary drain connection, offering even more flexibility to meet with your home's requirements. The direct-drive, multi-speed motors produce variable air volume for both heating and cooling that then works with the sequence-controlled, rust-resistant nickel-chromium heating elements and aluminum tubing coils to enhance the durability of this Goodman Air Handler. Including a factory-installed pull-type disconnect, you can rest assured that you can cut off power to the entire unit in an instant if anything raises concern.
This 2.5 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit goes above and beyond to comply with and sustain various notable industry standards. Earning both AHRI certification and ETL listing, this 2.5 Ton Goodman instills confidence in all operational claims, whether electrical or otherwise. Adhering to the guidelines in ASHRAE standard 193, this Multi Speed Goodman lowers cabinet air leak to less than 2% when tested at 1 inch of water. The dedication to verifiable performance doesn't stop there, instead pushing even further for a second cabinet air leak standard: losing less than 1.4% of air when tested at 0.5 inches of water. With such an impressive piece of technology at your disposal, why continue to settle for inconsistency? The time has come to upgrade to this Goodman Air Handler and renew your love for your living space.
Customer Reviews / Q&A
Specifications
System Overview
| Model | AWST30LU1405 |
|---|---|
| UPC | 663051645004 |
| Product Height (in) | 36 |
| Configuration | Wall Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Upflow |
| Product Width (in) | 24 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 5 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 109.000000 |
| Primary Heating Capacity | 15,001 - 20,000 BTU |
| Refrigerant | R-410a |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
