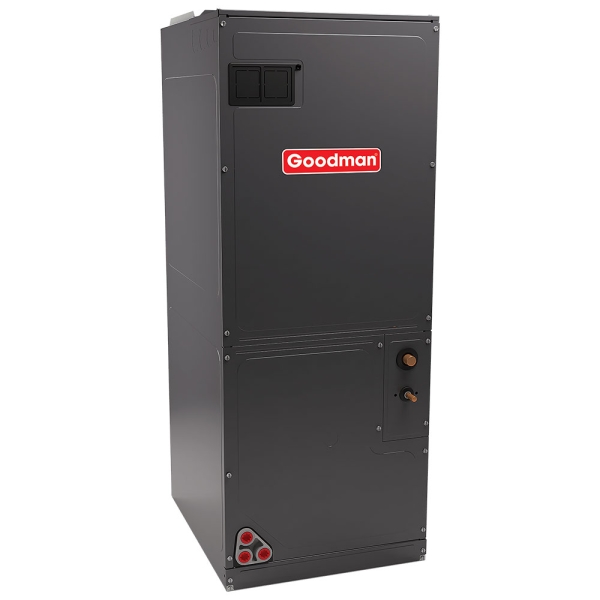

2.5 Ton Variable Speed Goodman Air Handler - Multiposition - 21" Cabinet

Item: HA10407
Model: AVPTC30C14
Condition: New

2.5 Ton Variable Speed Goodman Air Handler - Multiposition - 21" Cabinet Zoom

Photo Gallery

There's no such thing as a perfect air handling unit, but the Goodman AVPTC30 Multi-Positional Variable Speed Air Handler comes close. This high quality Goodman unit comes standard with a 10-Year Parts Limited Warranty, a variable-speed direct current motor, factory-installed thermal expansion valve, CFM indicator, improved humidity control, built-in coil, R-410A refrigerant, and ComfortNet compatibility. It even features an all aluminum coil and SmartFrame cabinet construction.

Availability: 1 In stock

$967.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

There's no such thing as a perfect air handling unit, but the Goodman AVPTC30 Multi-Positional Variable Speed Air Handler comes close. This high quality Goodman unit comes standard with a 10-Year Parts Limited Warranty, a variable-speed direct current motor, factory-installed thermal expansion valve, CFM indicator, improved humidity control, built-in coil, R-410A refrigerant, and ComfortNet compatibility. It even features an all aluminum coil and SmartFrame cabinet construction.
Goodman HA10407

Manufacturer Highlights

The Goodman brand AVPTC Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Compatible with the ComfortNet™ Communicating System family of products
  • Maximum four low-voltage wires required for operation in communicating mode
  • Auto configuration of the airflow and tonnage in communicating mode
  • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation
  • R-410A refrigerant-compatible
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • All-aluminum evaporator coil
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient fan-only operation
  • CFM indicator
  • Improved humidity control and comfort
  • Compatible with heat pumps and variable capacity cooling applications
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • AHRI Certified; ETL Listed


Cabinet Features

  • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
  • Compact, versatile upflow, downflow, or horizontal multi-position installations
  • Low-voltage cabinet connections; control circuit is arranged to permit staging
  • Power supply on top; low-voltage entry on top or side
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model AVPTC30C14
UPC 663051501232
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Variable Speed
Cooling Capacity 2.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 10 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 49
Product Length 21
Product Width 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 118.0000

Reviews

Customer Reviews

Q & A

Q&A: Ask Questions, Get Answers

Do you have questions about this product?

No questions have been asked yet. Be the first!
