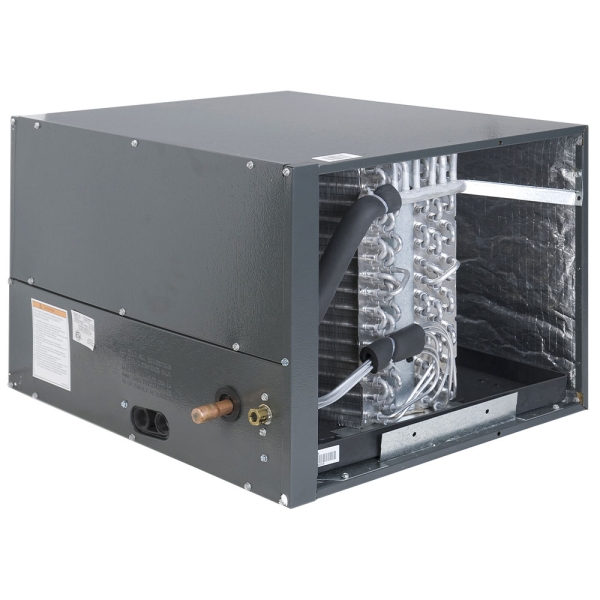

2 to 2.5 Ton Goodman Evaporator Coil - Horizontal - 17.5" Cabinet

Item: HA10487
Model: CHPF2430B6
Condition: New

2 to 2.5 Ton Goodman Evaporator Coil - Horizontal - 17.5" Cabinet Zoom

Photo Gallery

The Goodman CHPF24 2.0-2.5 Ton R-410A Horizontal Painted Cased Coil with 17.5 inch Cabinet is another Goodman entry into the crowded coil market. Built with an eye to Goodman's legendary quality standards, the CHPF series features a thermoplastic drain pan, grooved aluminum tubing, corrugated aluminum fins, and a pleasant Architectural Gray coat of paint. It is reasonably priced, AHRI certified, and ETL listed.

Availability: In stock

Was: $315.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

The Goodman CHPF24 2.0-2.5 Ton R-410A Horizontal Painted Cased Coil with 17.5 inch Cabinet is another Goodman entry into the crowded coil market. Built with an eye to Goodman's legendary quality standards, the CHPF series features a thermoplastic drain pan, grooved aluminum tubing, corrugated aluminum fins, and a pleasant Architectural Gray coat of paint. It is reasonably priced, AHRI certified, and ETL listed.
Goodman HA10487

Manufacturer Highlights

The Goodman® brand CHPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model CHPF2430B6
UPC 663051451766
Air Flow Direction Horizontal
Cooling Capacity 2 Ton, 2.5 Ton
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height 17.5
Product Length 21.125
Product Width 26
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight 55.0000

Reviews

Customer Reviews

Q & A

Q&A: Ask Questions, Get Answers

Do you have questions about this product?

Sort by ASC
Do you have a 2.5 ton horizontal cased coil for R-22?
Will this work with an American standard evaporator?
