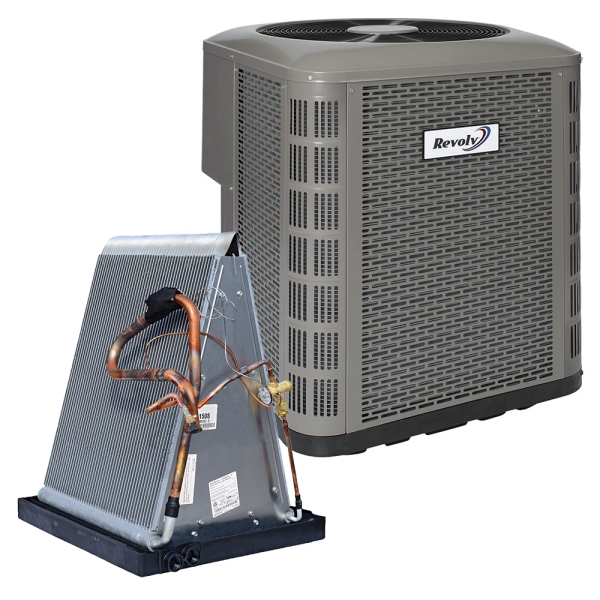

Just because manufactured and modular housing has unique requirements for their HVAC systems doesn’t mean you can’t enjoy reliable results when you choose the right one for your home. Options like the 2 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B give you the powerful cooling performance you need in the throws of summer’s heat. Earning both AHRI certification and ETL listing, the Revolv AC & Coil System passes intensive independent inspections to highlight the accuracy of every safety and operational claim. Enjoy your 1000 to 1200 square foot home to the fullest with an upgrade to a 2 Ton Revolv System.

This Bundle Includes:

2 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26067Model: C85DAMX24U-B Qty: 1
Accessories
Description / Documents

Just because manufactured and modular housing has unique requirements for their HVAC systems doesn’t mean you can’t enjoy reliable results when you choose the right one for your home. Options like the 2 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B give you the powerful cooling performance you need in the throws of summer’s heat. Earning both AHRI certification and ETL listing, the Revolv AC & Coil System passes intensive independent inspections to highlight the accuracy of every safety and operational claim. Enjoy your 1000 to 1200 square foot home to the fullest with an upgrade to a 2 Ton Revolv System.

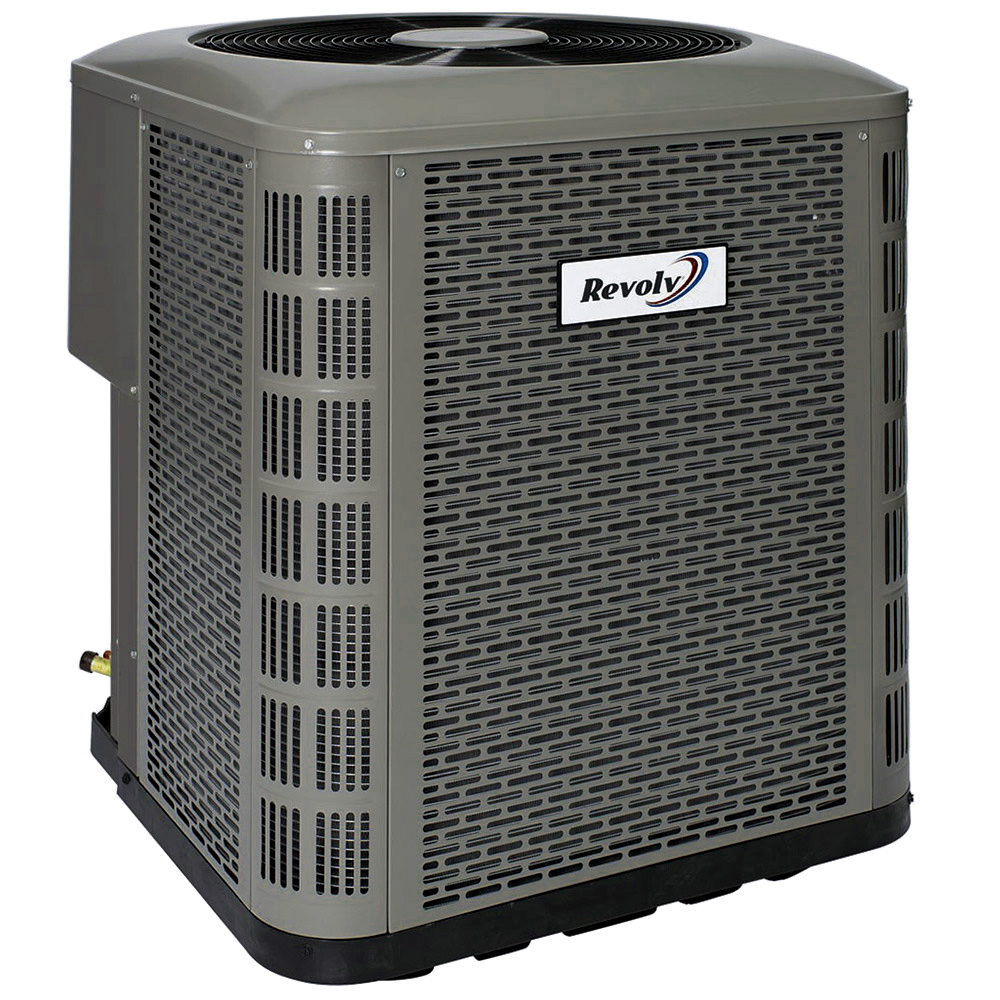

Keeping temperatures crisp in the overwhelming hotness of summer, the condenser in the 2 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B won’t fall short of your cooling needs. The galvanized steel construction is treated with a powder-paint coating that eliminates sharp edges and passes a 950-hour salt-spray test, letting the Revolv System resist fading, chipping, scratching, and corrosion over the years. The permanently lubricated PSC motor, high-quality scroll compressor, and base pan deaden any operational vibrations to provide quiet, efficient results. Equipped with a removable top grille assembly, the Revolv AC streamlines installation and servicing tasks to save you money on the processes. Thanks to the easily removable jacket providing access to the compressor and controls without removing the top grille, the Revolv AC System makes a positive impact on your indoor ambiance.

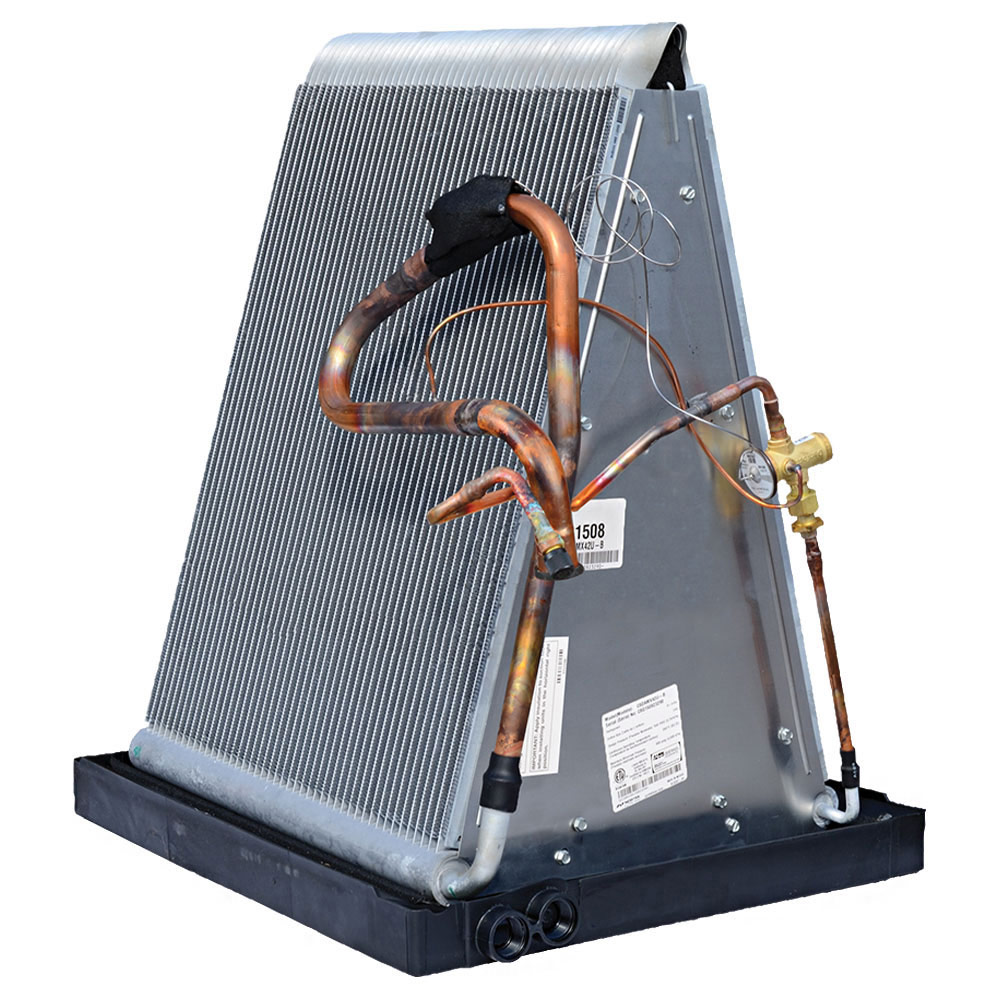

Effectively removing heat from inside your home, the evaporator coil in the 2 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B guarantees the dependable cooling comfort you crave in summer’s toasty temperatures. R454B refrigerant grants the Revolv Coil zero ozone depletion potential and a decreased GWP (global warming potential), offering more efficient and sustainable performance than older refrigerant models. The included TXV metering device allows the Revolv System to effortlessly keep refrigerant superheated, keeping climate control performance consistent and safe over the years. Outfitted with leak-free down turn braze connections, the Revolv AC & Coil System has everything you need and more to keep every inch of your mobile home cool during the worst weather summer throws your way.

Keeping your home cool during sweltering temperatures doesn’t have to be difficult, so why settle for a struggling system that can’t keep up? Opt for the 2 Ton Revolv Mobile Home Air Conditioner & Coil System utilizing R454B refrigerant today and enjoy the reliable cooling results you need to ensure you and your family stay comfortable all summer long.

Customer Reviews / Q&A
Specifications

System Overview

Model HSA4MD5M1SN24K,C85DAMX24U-B
AHRI Number 216044451
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency (SEER2) 13.4
Region Compatibility North

HSA4MD5M1SN24K Specifications:

Model HSA4MD5M1SN24K
UPC 663132533411
Product Height (in) 28.5
Avg Coverage Area 1,000 - 1,200 Sq Ft
Product Length (in) 23.75
Compressor Single Stage
Product Width (in) 23.75
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 131.000000
Refrigerant R-454b
Cooling Efficiency (SEER2) 13.4
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility North

C85DAMX24U-B Specifications:

Model C85DAMX24U-B
UPC 663132533688
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 30.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
