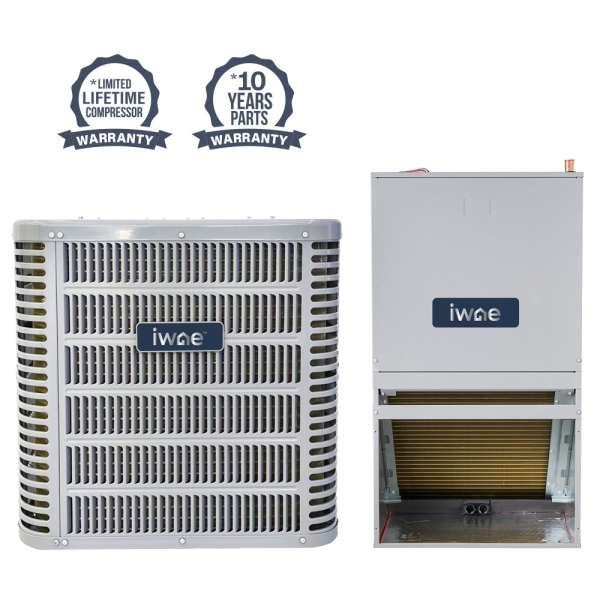

2 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B
Shop All IWAE

Accessories
Description / Documents
Enjoying comfortable conditions within your home during ever-shifting seasonal temperatures doesn’t have to be a difficult task. With a powerful system like the 2 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B, you’ll see what a difference modern HVAC technology can make on your climate control. Backed by both AHRI certification and ETL listing, the IWAE Central Heat Pump System has undergone thorough third-party testing to highlight the validity of every safety and functional claim. Give yourself total control over your 1000 to 1200 square foot space with an upgrade to the 2 Ton IWAE Split System.

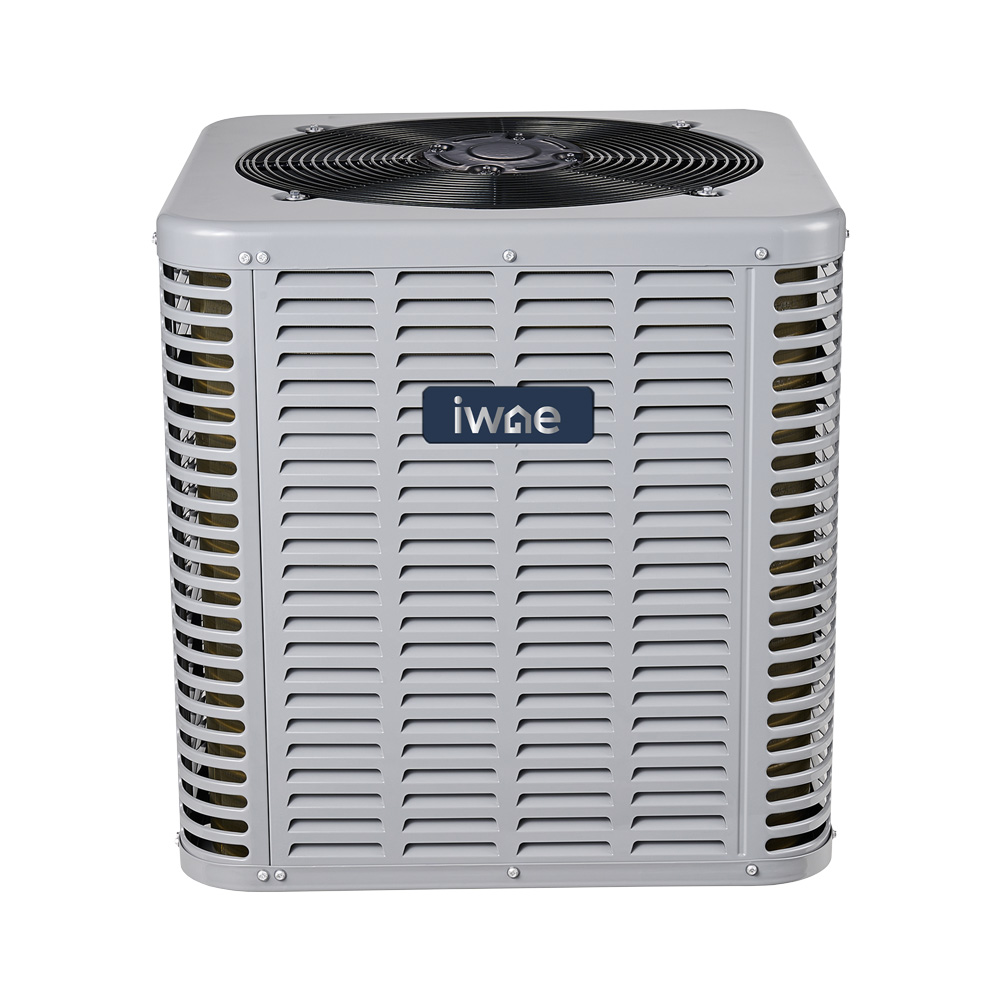

Well-equipped for the task at hand, the condenser in the 2 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B tailors your climate control to your preferences. An energy-efficiency compressor supports operation in a range of temperatures, cooling in ambient temperatures ranging from 54 to 126 degrees Fahrenheit and heating when conditions are between 14 and 90 degrees Fahrenheit. The integration of a sound control blanket mitigates operational noises, optimizing your comfort from every angle. Jam-packed with safety features, including gold fin corrosion protection, a baked enamel finish, time-delay defrost technology, a filter drier, and a factory-installed A2L sensor, the IWAE Heat Pump goes above and beyond to supply your home with toasty temperatures in winter and cool conditions all summer long.

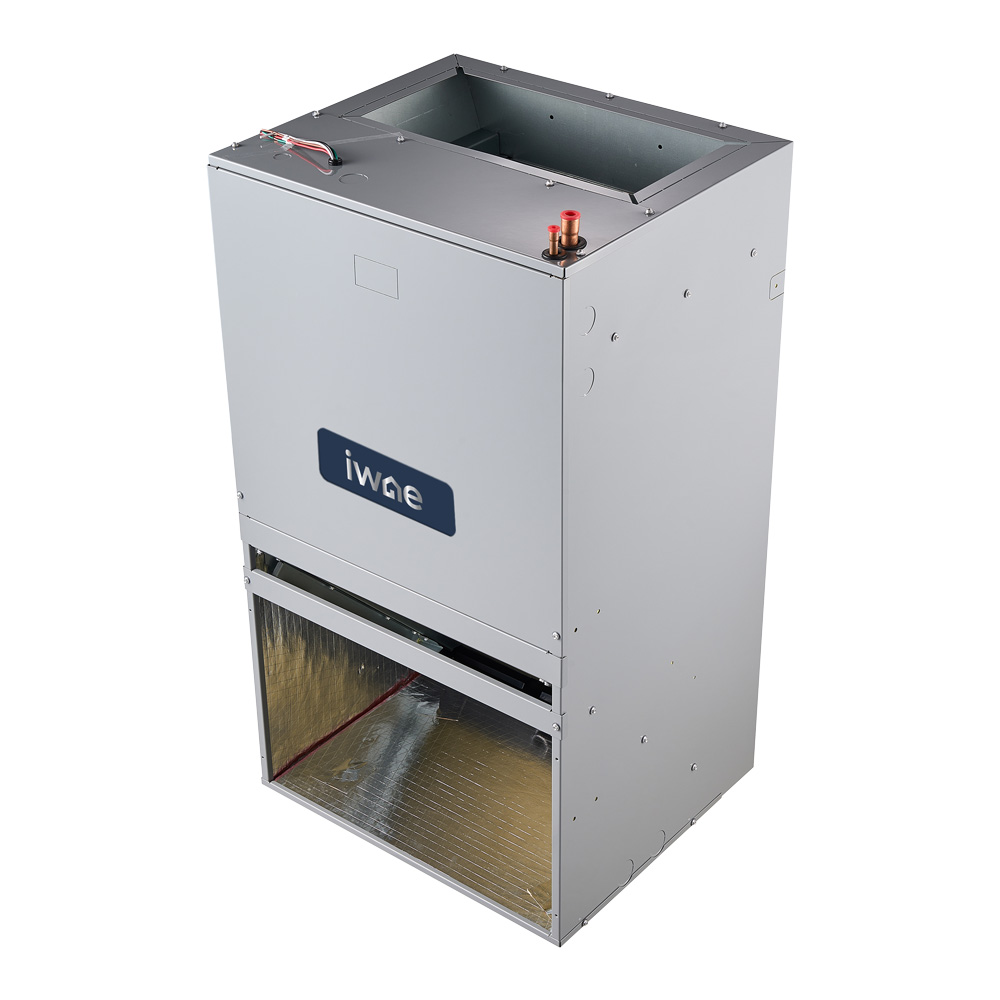

Built to go the distance for your needs, the air handler in the 2 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B strikes a delicate balance of purposeful construction and flexible setup. While a variable-speed ECM indoor blower motor maximizes efficiency, a factory-installed A2L sensor keeps tabs on the refrigerant to ensure safe operation over time. The IWAE Stud Mounted Air Handler comes with a factory-standard front return, but adds versatility by streamlining conversion to a bottom return with no more effort than removing the base pan panel on the front of the cabinet. Sporting foil-faced insulation along the inside of the casing to minimize heat loss and condensation accumulation, you can relax knowing the IWAE Split System can meet your needs exactly where they are.
Between the ability to enjoy the reliable temperature regulation you crave, and the peace of mind that comes with a warranty that provides 10 years of parts coverage and a limited lifetime on the compressor, there’s no reason to hesitate. Acquire a 2 Ton IWAE Central Heat Pump Split System with Stud Mounted Air Handler utilizing R454B refrigerant today and give your family access to the year-round comfort they’ve been dreaming of.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | IWAESHS4T2421AA,IWAEAWPEF24D21AA |
|---|---|
| AHRI Number | 217513205 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Region Compatibility | Nationwide |
IWAESHS4T2421AA Specifications:
| Model | IWAESHS4T2421AA |
|---|---|
| UPC | 840433703952 |
| AHRI Number | 217513204 |
| Product Height (in) | 25 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 23.6 |
| Compressor | Single Stage |
| Product Width (in) | 23.6 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 144.000000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
| Region Compatibility | Nationwide |
IWAEAWPEF24D21AA Specifications:
| Model | IWAEAWPEF24D21AA |
|---|---|
| UPC | 840433704096 |
| Product Height (in) | 36 |
| Configuration | Wall Mounted |
| Product Length (in) | 15 |
| Air Flow Direction | Downflow, Horizontal, Upflow, Vertical |
| Product Width (in) | 20.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 3 amps |
| Weight (lbs) | 88.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
